Aerial.net :: Ubiquiti AM-2G16-90, 2.4Ghz 16dBi, 90* AirMax BaseStation Sector Antenna

Ubiquiti » Antennas » AM-2G16-90

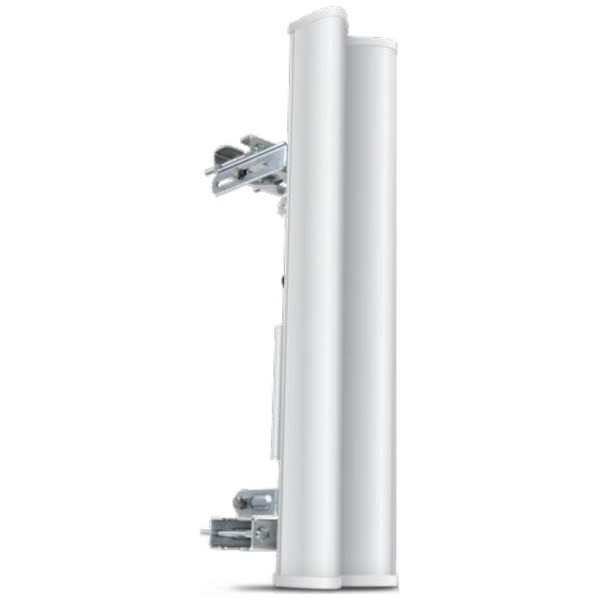

Ubiquiti AM-2G16-90, 2.4Ghz 16dBi, 90* AirMax BaseStation Sector Antenna
[0931][AM-2G16-90]

Price: 131,18€

Order or Qty		Price
> 500€	5+	129,86€
> 1000€	10+	128,55€
> 2000€	20+	127,24€
> 5000€	40+	125,93€
> 10000€	100+	124,62€

Prices exclude VAT

Ships in:
5-7 working days
Quantity: 9

Order Qty:

UPC:	810354020872

AM-2G16-90

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world.

Instantly pair with Rocket M2 to create a powerful AirMax 2x2 MIMO PtMP BaseStation.

Rocket mount and weatherproof RF jumpers included.

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together.

Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Product Links:
Datasheet	Quick Start Guide

Specifications:
Frequency Range:	2.3-2.7GHz
Gain:	16.0-17.0dBi
Polarization:	Dual Linear
Cross-Pol Isolation:	28dB min
Max VSWR:	1.5:1
Hpol Beamwidth (6dB):	91°
Vpol Beamwidth (6db):	90°
Elevation Beamwidth:	9°
Electrical Downtilt:	4°
ETSI Specification:	EN302 326 DN2
Dimensions:	700 x 145 x 79 mm
Weight:	3.9 kg
Windloading:	160mph

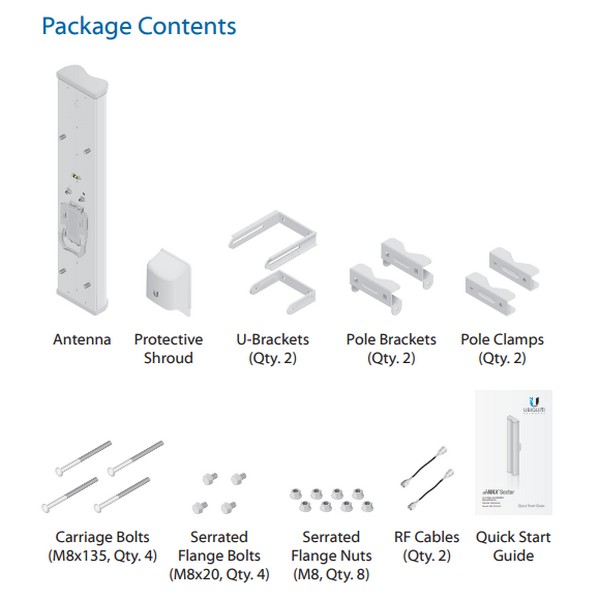

Package Contents:
1 x AM-2G16-90
1 x Pole Mounting Kit
2 x RF Cable

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
