Ubiquiti » Antennas » AM-5G17-90
Ubiquiti AM-5G17-90, 5Ghz 17dBi, 90deg AirMax BaseStation Sector
[0774][AM-5G17-90]
Price: 73,69€
 Order or Qty  Price
 > 500€  5+   72,95€
 > 1000€  10+   72,21€
 > 2000€  20+   71,48€
 > 5000€  40+   70,74€
 > 10000€  100+   70,00€
Prices exclude VAT

Ubiquiti AM-5G17-90, 5Ghz 17dBi, 90deg AirMax BaseStation Sector

In Stock: 2

Available quantity within
3-5 working days: 50
Order Qty:
UPC:810354020902

AM-5G17-90

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world.

Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation.

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together.

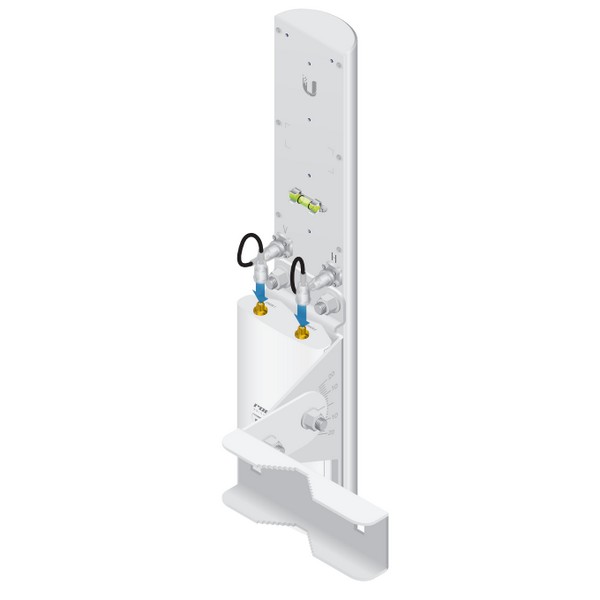

Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specifications:
Frequency Range: 5.15-5.85 GHz
Gain: 16.1-17.1 dBi
Polarization: Dual Linear
Cross-Pol Isolation: 22dB min
Max VSWR: 1.5:1
Hpol Beamwidth (6dB): 72°
Vpol Beamwidth (6db): 93°
Elevation Beamwidth:
Electrical Downtilt:
ETSI Specification: EN302 326 DN2
Dimensions: 367 x 63 x 41mm
Weight: 1.1Kgr
Windloading: 120mph


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
