Aerial.net :: 5.4GHz-5.7GHz, 26dBi Solid Dish N-Female connector

Direct27-5G

5.4GHz-5.7GHz, 26dBi Solid Dish N-Female connector
[0672][Direct27-5G]

The product is
no longer available

Prices exclude VAT

Direct 27 - 5G is the first antenna from the new 5 GHz antenna’s RF elements commodity.

Antenna :

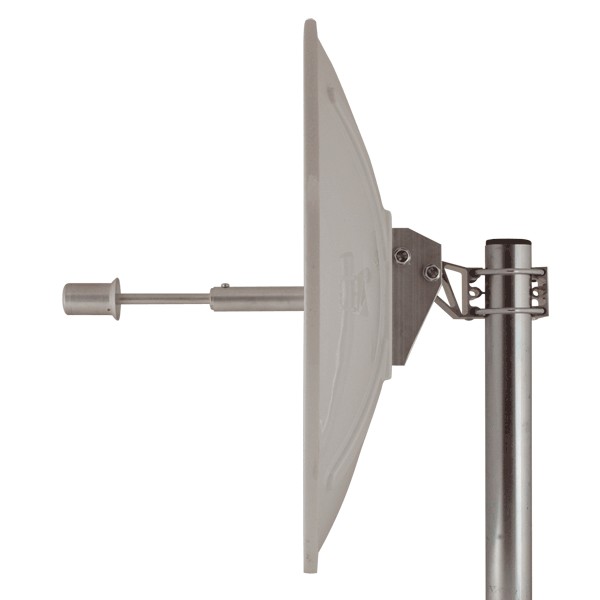

Direct 27-5G is a directional parabolic antenna working in 5 GHz band. There is a possibility to use Direct 27-5G in horizontal polarization or vertical polarization.
Antenna is made of a top quality two-layer ABS/Plexiglas (PMMA) material which enables Direct 27-5G to be used also in more difficult climatic conditions.
The antenna is corrosion resistant and its lifetime is very long. The weight of Direct 27-5G is very low (up to 1.5 Kg).

Feedhorn:
Direct 27-5G has a new feeder (half wave’s dipole in waveguide). Coaxial waveguide which is ended with N connector is completely hidden in the holder of feeder. Feeder’s collar is shaped exactly according to the type of parabolic reflector. After this manner optimal radiation is secured. Moreover, maximum possible gain is achieved and possible over radiation of reflector is eliminated.

Features:	Benefits:

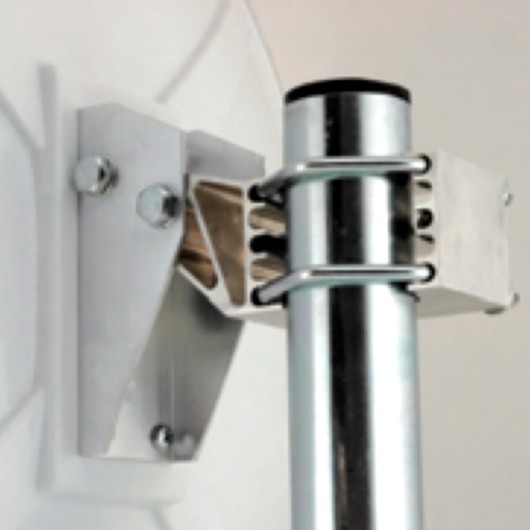

● Operating frequency 5470 – 5725 MHz ● Material ABS/plexiglass (PMMA) + Aluminium ● Vertically or horizontally polarized ● Mounting with butt hinge	● High gain/size ratio ● long lifetime ● Low weight – up to 1.5 Kg ● No corrosion ● Easy Installation

Product Links:
Product Page	Datasheet

Specifications:
Dimension	Diameter 500 mm

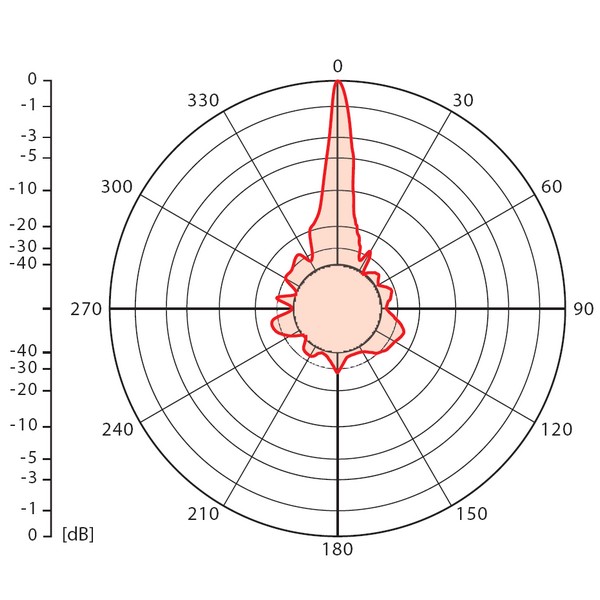

-3 dB Beamwidth	6°
Weight	1.5 Kg
Material	Al + ABS
Frequency Band	5470 - 5725 MHz
Gain	26,1 dBi
Connector	N - Female
Polarization	Horizontal / Vertical
Impedance	50 Ω

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
0 day(s)	20 day(s)	6 month(s)
