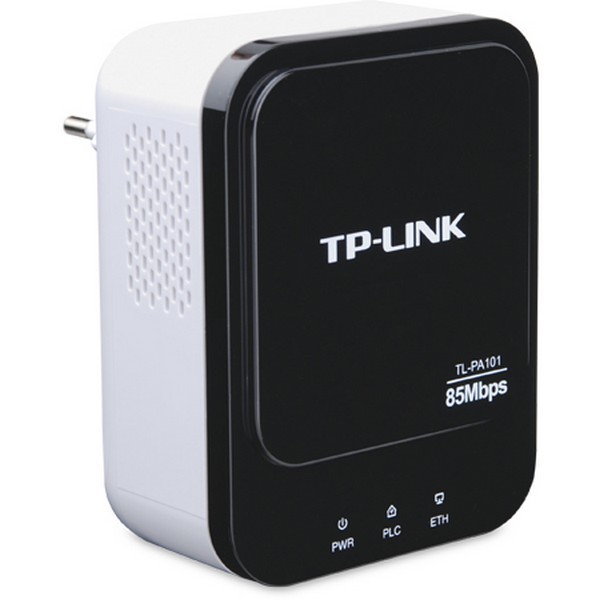

TP-LINK Ethernet Powerline Adapter TL-PA101 2.0 provides another wire-free solution for the SOHO life. By offering a Plug-N-Play method, you can easily connect to internet, watch IPTV, play online game, and transfer files over power line.
The device transforms your house´s existing electrical wiring into a ubiquitous networking infrastructure, it will easily extend your Cable/xDSL broadband connection or existing LAN to any other electrical outlet in any room of your house without new cabling.
The 85Mbps Ethernet Powerline Adapter TL-PA101 2.0 provides an easy way to set it up, just simply connect one adapter to your router, plug it into your existing power outlet, and then it could help you to build up the whole house network connection and provide Internet access.
The maximum transmission range of our adapter could be up to 200m over your household power supply grid.
Besides, with 85Mbps high speed and build-in QoS feature, TL-PA101 enables lag-free entertainment such as online/LAN gaming, audio/video streaming simultaneously, and the application with real-time requirements. The 56-bit DES encryption also protects your network from external attack.
|
Software Specification
|
|
Standards
|
HomePlug Turbo 85Mbps
IEEE 802.3 10/100 Ethernet
|
|
Modulation Technology
|
OFDM
|
|
Protocol Support
|
TCP/IP
|
|
Network Operating System Support
|
Windows 98SE , 2000, XP, 2003, Vista
|
|
Advanced Feature
|
Build-in QoS feature
|
|
Intelligent channel adaptation
|
|
Support 56-bit DES encryption
|
|
Hardware Specification
|
|
Interface
|
Ethernet LAN Port * 1
|
|
Plug Type
|
EU, UK, AU (replaceable)
|
|
LEDs
|
Powerline, Power, Ethernet
|
|
Range
|
200M in house
|
|
Certifications
|
CE, FCC, RoHS compliant
|
|
Dimensions (LxWxH)
|
104 x 71 x 38 mm
4.1 x 2.8 x 1.5 in.
|
|
Weight
|
165 grams
|
|
Environment
|
Temperature: +0 ~ +60 ℃
Humidity: 10% ~ 90% RH
|
|
Power Consumption
|
<6W
|
|
