The TL-WR542G 54Mbps Wireless Router integrates firewall, NAT-router and Wireless AP. The design is dedicated to Small Office/Home Office (SOHO) Wireless network solution. The TL-WR542G 54Mbps Wireless Router will allow you to connect your network wirelessly better than ever, sharing Internet Access, files and fun, easily and securely.
With the most attentive wireless security, the TL-WR542G 54Mbps Wireless Router provides multiple protection measures. It can be set to turn off wireless network name (SSID) broadcast so that only stations that have the SSID can be connected. The Router provides wireless LAN 64/128/152-bit WEP encryption security, and WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security. It also supports VPN pass-through for sensitive data secure transmission.
The TL-WR542G 54Mbps Wireless Router complies with the IEEE 802.11g/b standards and adopts 2x to 3x eXtended Range™ WLAN transmission technology so that transmission distance is 2-3 times that of traditional 11g/b solutions, up to 855.36m tested in China. Transmission range is extended to 4-9 times. It is compatible with all IEEE 802.11g and IEEE 802.11b products.
The TL-WR542G 54Mbps Wireless Router provides flexible access control so that parents or network administrators can establish restricted access policies for children or staff. It has built-in NAT and DHCP server supporting static IP address distributing. It also supports Virtual Server and DMZ host for Port Triggering needs, as well as remote management and log so that network administrators can manage and monitor the network on real time.
The TL-WR542G 54Mbps Wireless Router is easy-to-manage. Quick Setup Wizard is supported and friendly help messages are provided for every step. So you can configure it quickly and share Internet access, files and fun.
|
Software Specification
|
|
Standards
|
IEEE 802.11g, IEEE 802.11b
|
|
Wireless Signal Rates
With Automatic Fallback
|
11g: 54/48/36/24/18/12/9/6M(dynamic)
11b: 11/5.5/2/1M(dynamic)
|
|
Frequency Range
|
2.4-2.4835GHz
|
|
Wireless Tx Power (MAX)
|
17dBm
|
|
Modulation Technology
|
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
|
|
Receiver Sensitivity
|
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
|
|
Wireless Mode
|
AP Router Mode
Bridge mode (point-to-point / point to Multi-point)
|
| Wireless Range |
Indoors up to 200m, Outdoors up to 830m
|
| Wireless Security |
SSID Enable/Disable
MAC Address Filter
64/128/152-bit WEP Encryption
WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
|
|
Hardware Specification
|
|
Interface
|
4 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX)
1 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX)
|
|
Antenna
|
3dBi Detachable Omni Directional Antenna (RP SMA Connector)
|
|
Power Supply Unit
|
Input: 100-240 AC
Output: 12VDC / 1A Switching PSU
|
|
Operating temperature
|
0°C~40°C (32℉~104℉)
|
|
Storage temperature
|
-40°C~70°C (-40℉~158℉)
|
|
Relative humidity
|
10% ~ 90%, Non Condensation
|
|
Storage Humidity
|
5%~95% Non-Condensing
|
|
Dimensions
|
6.9 x 4.4 x 1.2 in. (174 x 111 x 30 mm)
|

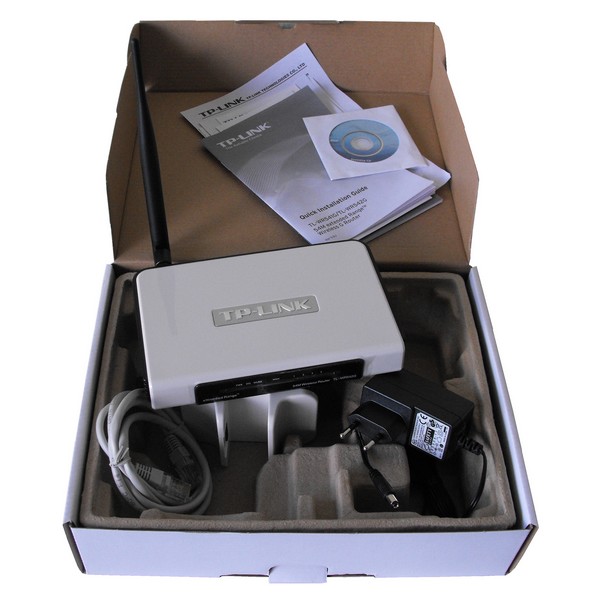

| Package Contents: |
|---|
| 1 x TL-WR542G 54M Wireless AP Client Router
|
| 1 x 9V/0.6A DC power Adapter for TL-WR542G
|
| 1 x Ethernet connection cable (1mt )
|
| 1 x Quick Installation Guide
|
| 1 x Resource CD, including, User's Guide, Other Helpful Info. |
