Connector / Adapter » SMA Connector » EZ-SMAM240

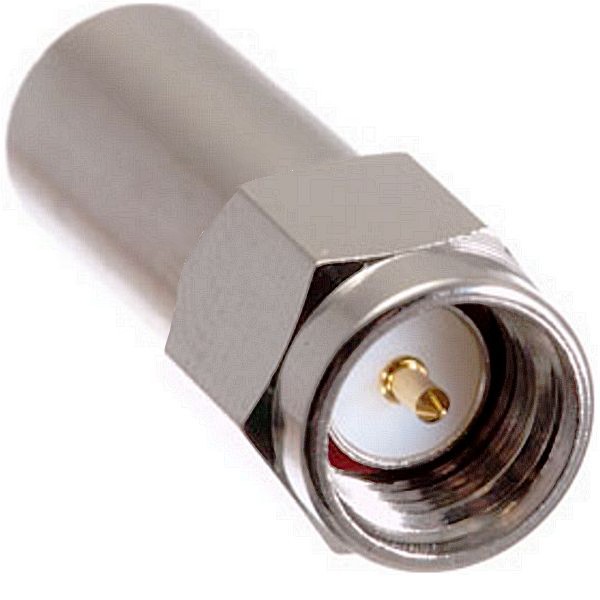

EZ-SMAM240, SMA Male Crimp connector for 240, RG-8X series cable
[3262][EZ-SMAM240]
Price: 1,17€
 Order or Qty  Price
 > 500€  5+   1,15€
 > 1000€  10+   1,12€
 > 2000€  20+   1,10€
 > 5000€  50+   1,08€
 > 10000€  100+   1,05€
Prices exclude VAT

EZ-SMAM240, SMA Male Crimp connector for 240, RG-8X series cable
In Stock: 100
Order Qty:
UPC:728615668131

EZ-SMAM240

SMA Male Crimp connector for 240, RG-8X series cable.

Part Material Finish
Body Brass Gold plated
Center Pin Bronze Gold plated
Crimp Tube Annealed Copper Nickel
Dielectric Teflon n/a
Specifications:
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
VSWR 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
ContactResistance center contact=1.0 Milliohms max
outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min
Connector
SMA
Female thread
Male center pin

Package Contents:
1 x EZ-SMAM240

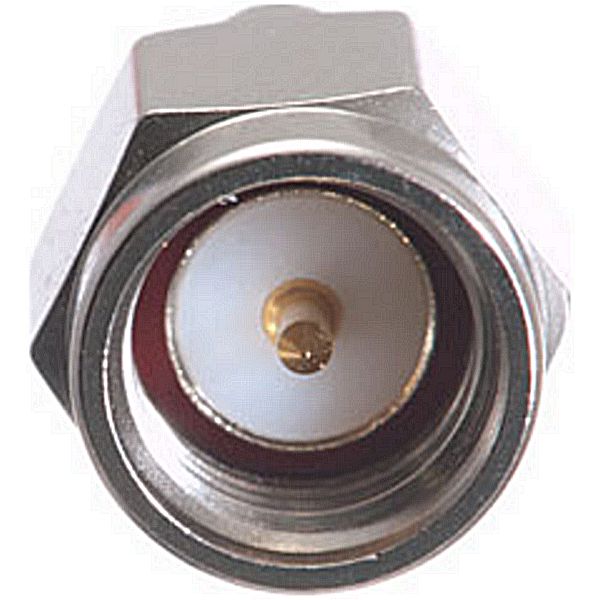

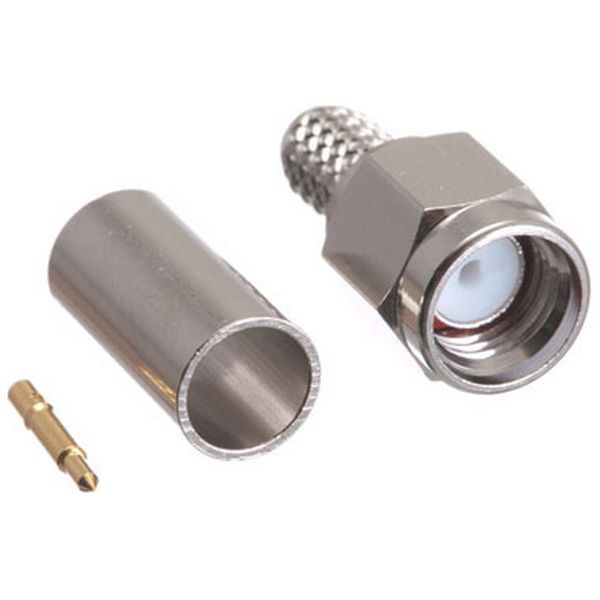

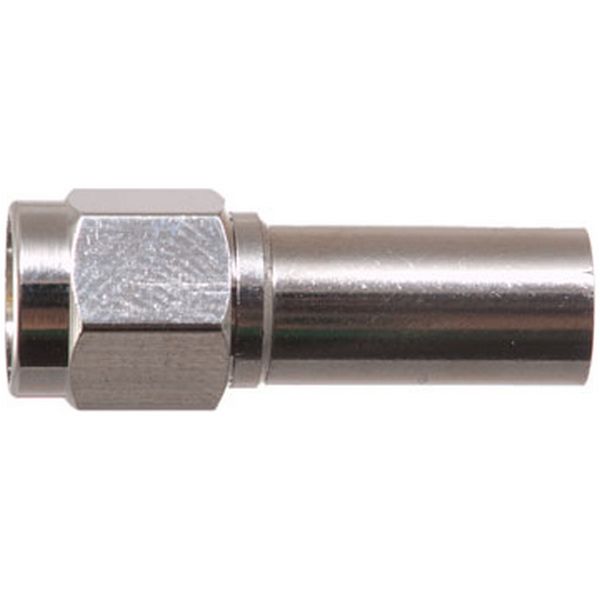

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
