PoE » Passive Splitter » EZ-LSPOE1210
EZ-LSPOE1210, 24v-48v to 12V/2A Out 10/100Μ PoE Splitter - Black
[3254][EZ-LSPOE1210]
Price: 5,18€
 Order or Qty  Price
 > 500€  5+   5,08€
 > 1000€  10+   4,98€
 > 2000€  20+   4,87€
 > 5000€  40+   4,77€
 > 10000€  100+   4,67€
Prices exclude VAT

EZ-LSPOE1210, 24v-48v to 12V/2A Out 10/100Μ PoE Splitter - Black
In Stock: 13
Order Qty:
UPC:728615668018

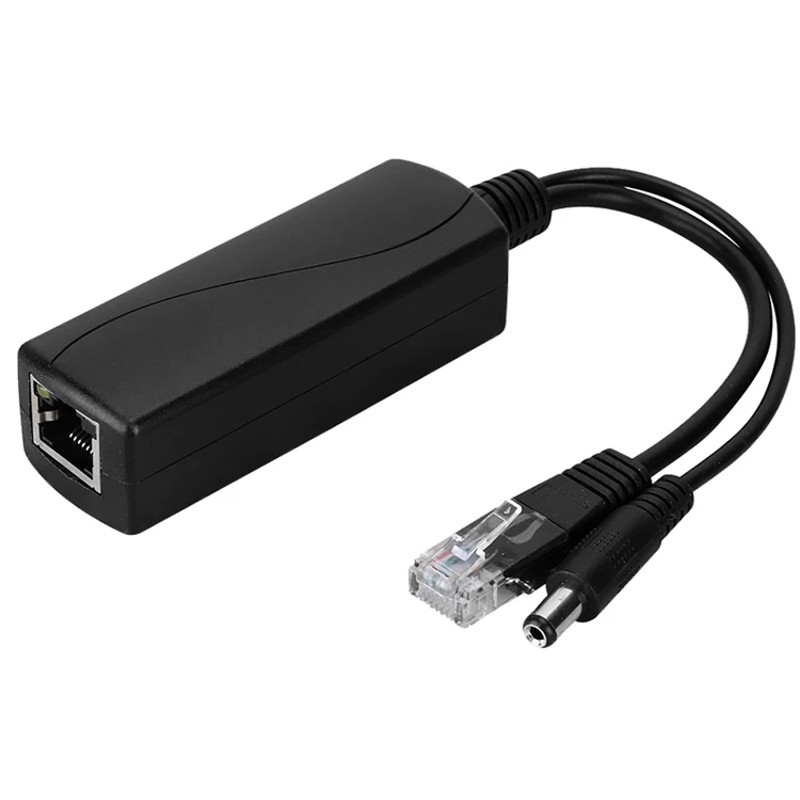

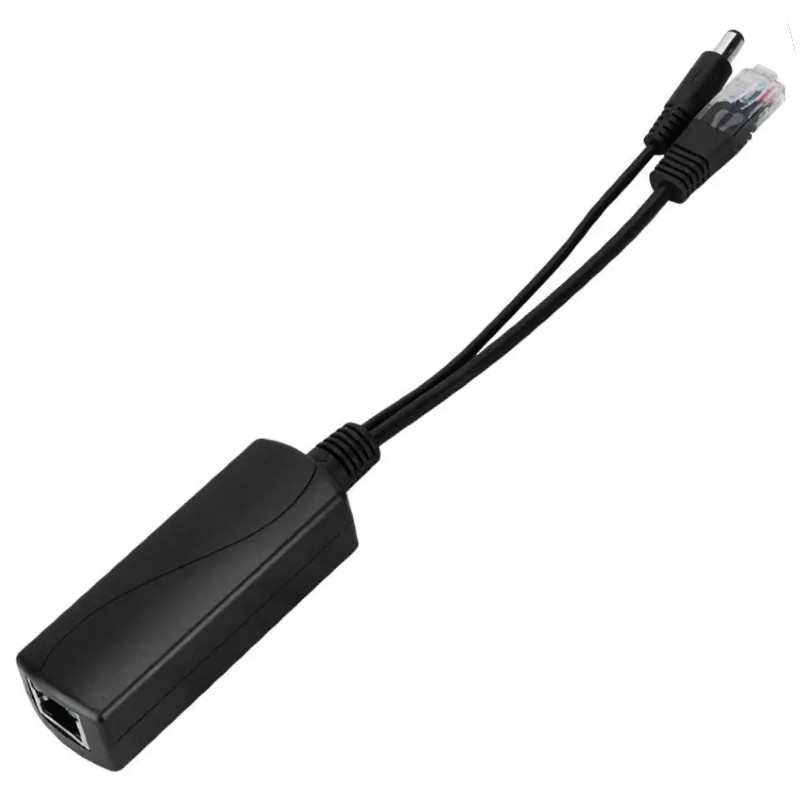

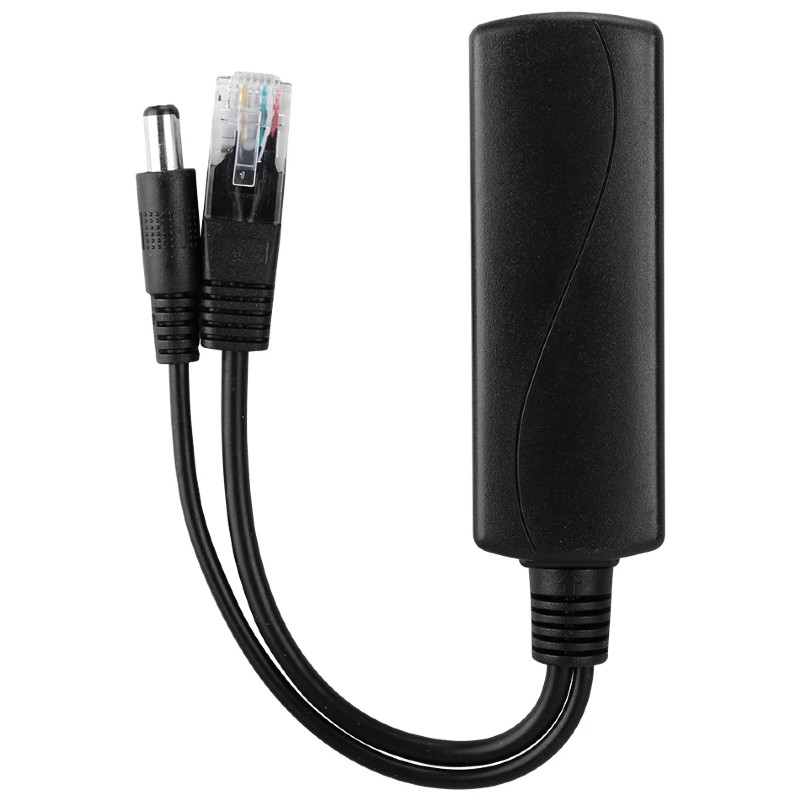

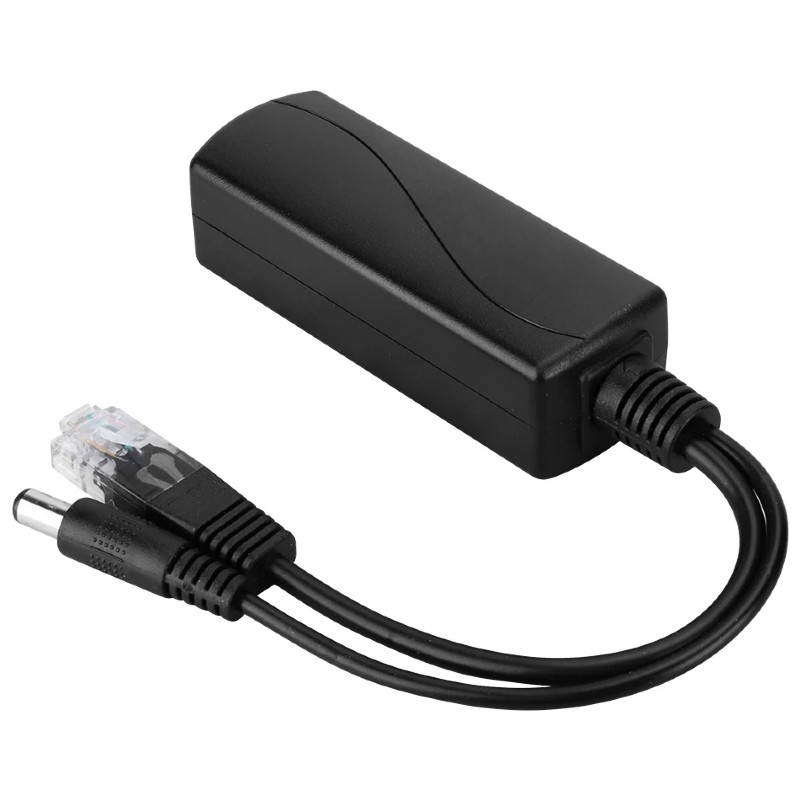

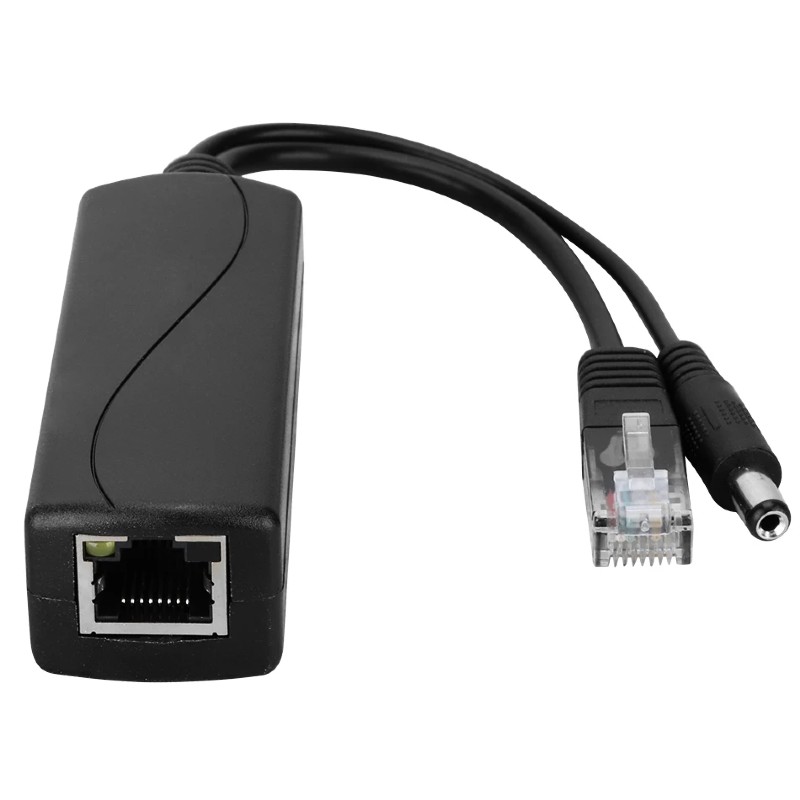

EZ-LSPOE1210 is a PoE splitter to power non-PoE enabled devices.

It accepts a wide range of DC input from 15v to 48v PoE via 10/100 RJ45 Jack to output fixed 12v/2A via the DC Jack (5.5 x 2.1mm).

This way a non PoE enabled device can be powered remotely via any PoE Injector or PoE Switch

Input / Output Specifications :
DC Input Voltage Max  48V DC
DC Input Voltage Min  24V DC
DC Output Voltage  12V DC
Max Output Current  2A Max.
DC Jack  5.5mm x 2.1mm
General Specifications:
Operating Temperature  -10oC ~ +60oC
Storage Temperature  -20oC ~ +70oC
Humidity  Up to 90%
Weight 25gr
Dimensions 175mm * 28mm * 21mm
Input Pins
RJ45 Plug		 Output Pins
RJ45 Jack
1 Tx(+) Tx(+) 1
2 Tx (-) Tx (-) 2
3 Rx (+) Rx (+) 3
4 V+ N.C. 4
5 V+ N.C. 5
6 Rx (-) Rx (-) 6
7 GND N.C. 7
8 GND N.C. 8

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
