Power Supply » DC-DC Converters » TBS21224B72Z
TBS21224B72Z, DC-DC 12v to 24v, 3A 72W Step-Up converter
[3239][TBS21224B72Z]
Price: 9,24€
 Order or Qty  Price
 > 500€  5+   9,06€
 > 1000€  10+   8,87€
 > 2000€  20+   8,69€
 > 5000€  40+   8,50€
 > 10000€  100+   8,32€
Prices exclude VAT

TBS21224B72Z, DC-DC 12v to 24v, 3A 72W Step-Up converter
In Stock: 8
Order Qty:
UPC:728615667660

TBS21224B72Z - DC-DC 12v to 24v, 3A 72W Step-Up converter

Specifications:
Part# TBS21224B72Z
Output Current 3A peak, 2A continous
Output Power 72W peak
Input Voltage 12v
Output Voltage 24v (±0.2v)
Conversion Efficiancy >95%
No Load Current >50ma
Working Temperature -20°C ~ +80°C
Housing Material Die Cast Aluminum

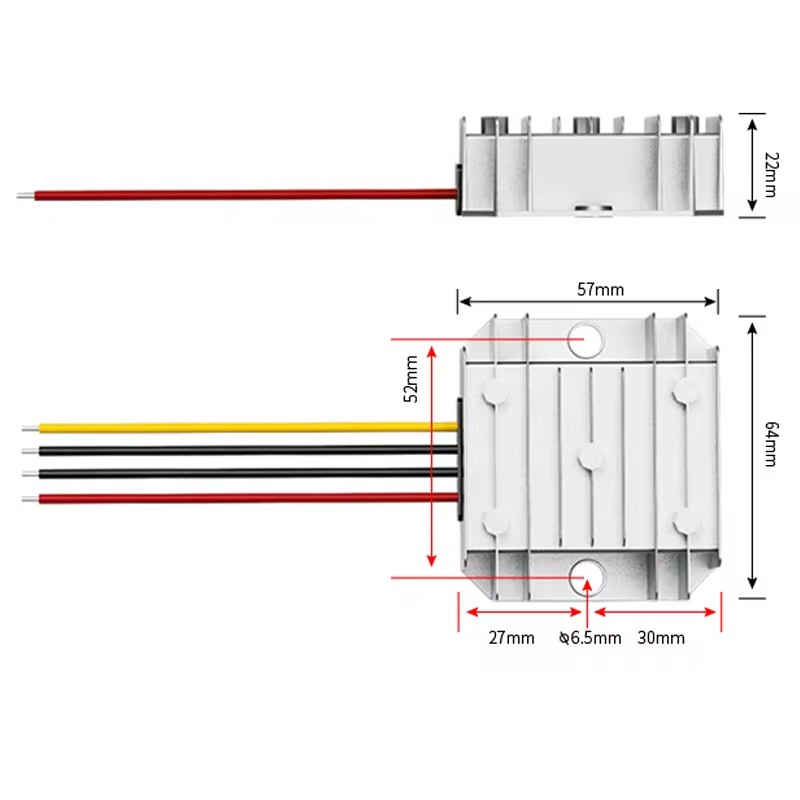

Product Dimensions 68x57x24mm
Product Weight 127g
Country of Origin China

Package Contents:
TBS21224B72Z, DC-DC 12v to 24v, 3A 72W Step-Up converter x

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
