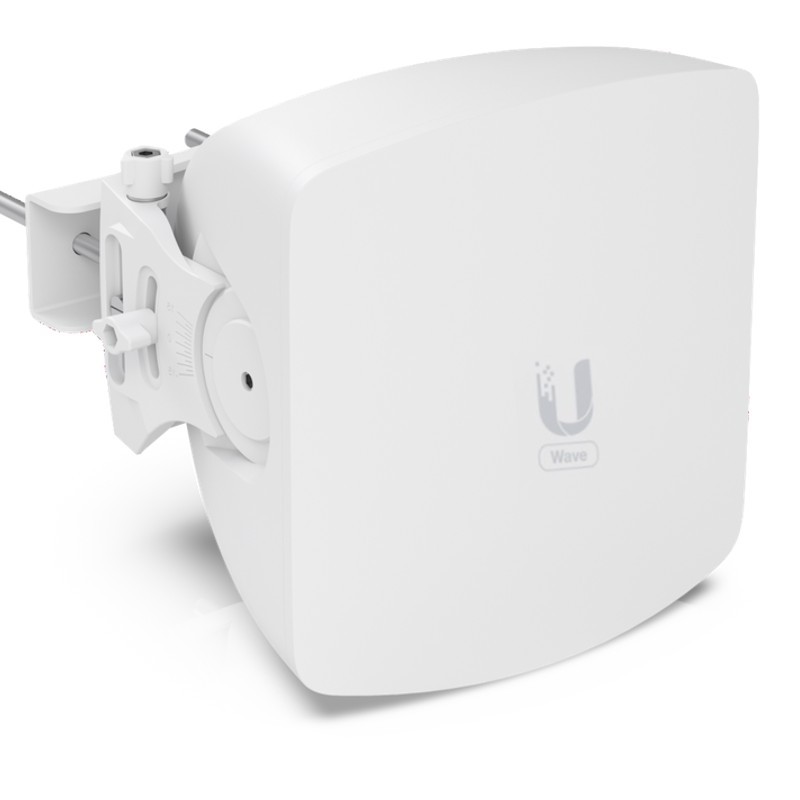

Wave-AP-EU - UISP Wave Access Point 60 GHz PtMP access point powered by Wave Technology.
The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex).
It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.
Features:
-
5 GHz backup radio
-
Supported stations and distances:
Wave Long-Range: up to 8 km
Wave Nano: up to 5 km
-
WAN Ports: (1) 10G SFP+, (1) 2.5GbE
-
Integrated GPS antenna
-
Link planning support via the ISP Design Center
|
Mechanical |
|
Dimensions |
212 x 205 x 187 mm |
|
Weight |
2.3 kg |
|
Enclosure materials |
Aluminum alloy, UV stabilized polycarbonate |
|
Pole mount diameter |
25 to 76 mm on pipe outer diameter |
|
Wind loading |
98 N at 200 km/h |
|
Weatherproofing |
IPX6 |
|
Hardware |
|
Processor |
Quad ARM® Cortex®-A53 cores at 1.4 GHz |
|
Memory |
DDR3L 512 MB |
|
Networking interface |
(1) 2.5GbE RJ45 port (100/1000/2500)*
(1) 10G SFP+ port (1/10)
* Active only when SFP+ port is down. |
|
Max. power consumption |
24W |
|
Power method |
48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
|
Power supply |
48V DC, 0.65A 2.5GbE PoE adapter (included) |
|
GPS |
Yes |
|
Button |
Factory reset |
|
LEDs |
Power, Ethernet, GPS |
|
Operating temperature |
-40°C to 60°C |
|
Operating humidity |
5 to 95% noncondensing |
|
Certifications |
FCC, IC, CE |
|
Software |
|
OS |
airOS® |
|
Operating mode |
PtMP access point |
|
Ubiquiti specific features |
Wave AI, discovery protocol |
|
Services |
UISP, ping watchdog, NTP client, SNMP |
|
Tools |
Antenna alignment, discovery utility, ping, trace route, speed test |
|
Network |
Bridge mode |
|
Software management |
Bluetooth management for easy setup over UISP Mobile app
WEB UI |
|
Minimum software requirements |
Any modern web browser/iOS™ or Android™ based smartphone |
|
System |
|
Total throughput |
5.4 Gbps (2.7 Gbps duplex) |
|
Supported clients count |
15 |
|
Range |
Connecting to a Wave Long-Range: up to 8 km
Connecting to a Wave Nano: up to 5 km |
|
Encryption |
WPA2-PSK (AES) |
|
RF |
|
Operating frequency* |
57 to 71 GHz *Depends on regulatory region. |
|
Channel bandwidth |
2160, 1080 MHz |
|
Operating channels* |
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880,
66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
|
Modulation |
16QAM, QPSK |
|
Antenna gain |
24 dBi |
|
Polarization |
Vertically linear |
|
Beamwidth |
Azimuth: 30°
Elevation: 3dB 3°, 6dB 4° |
|
Electrical downtilt |
0° |
|
Back-Up RF |
|
WiFi standard |
802.11ax (WiFi 6) |
|
Operating frequency* |
5150 - 5875 MHz *Depends on regulatory region. |
|
Channel bandwidth |
20, 40, 80 MHz |
|
Modulation |
BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3),
64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
|
Antenna gain |
12 dBi |
|
Cross-pol isolation |
10 dB |
|
Electric downtilt |
0° |
|
LEDs |
|
Power |
Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress |
|
Ethernet |
Flashing white: Ethernet traffic detected
Flashing blue: SFP+ traffic detected |
|
GPS |
Blue: receiving at least (4) GPS satellite signal |

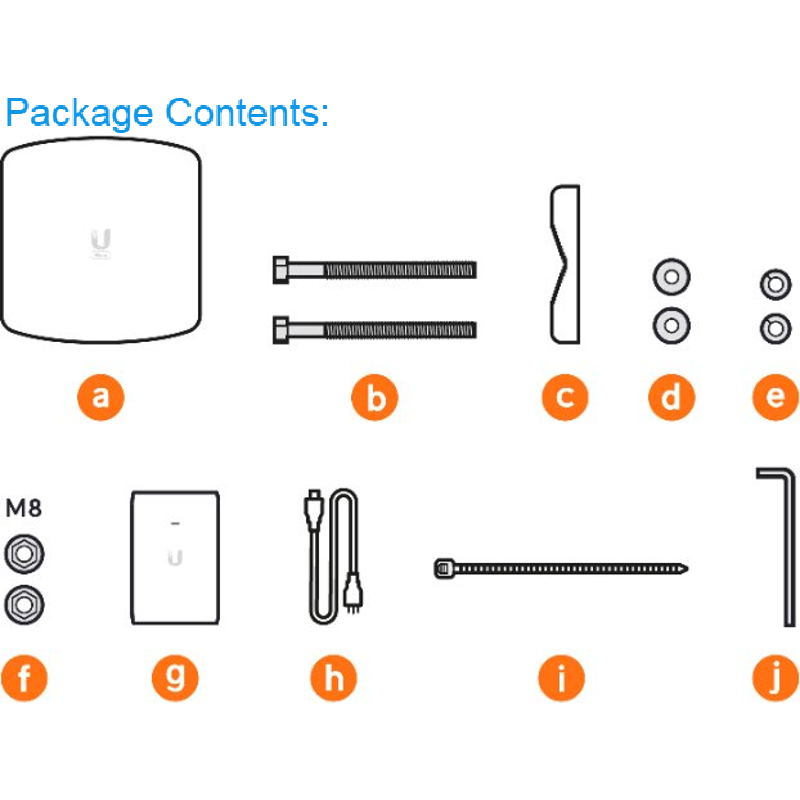

| Package Contents: |
|---|
| 1 x Wave-AP
|
| 1 x Fine adjustment mount kit
|
| 1 x Power Supply 48 V/0.65 A
|
| 1 x AC Cables |
|
