Aerial.net :: EZ-CBS-5e, STP Cat.5e SHIELDED Connection Box

RJ45 / Ethernet » Accessories » EZ-CBS-5e

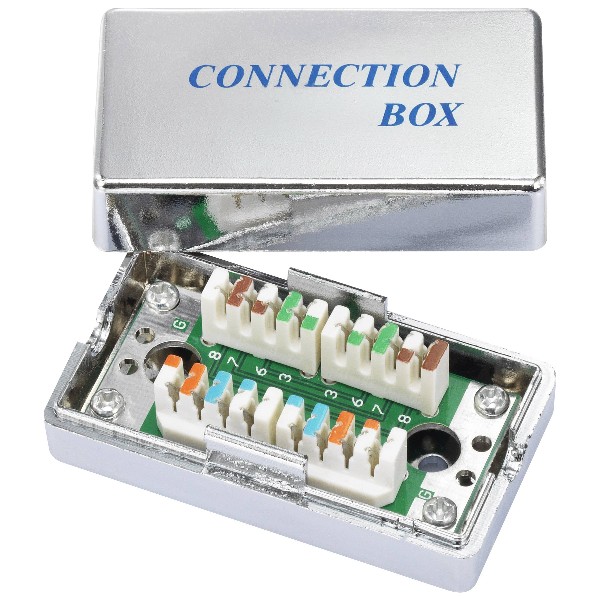

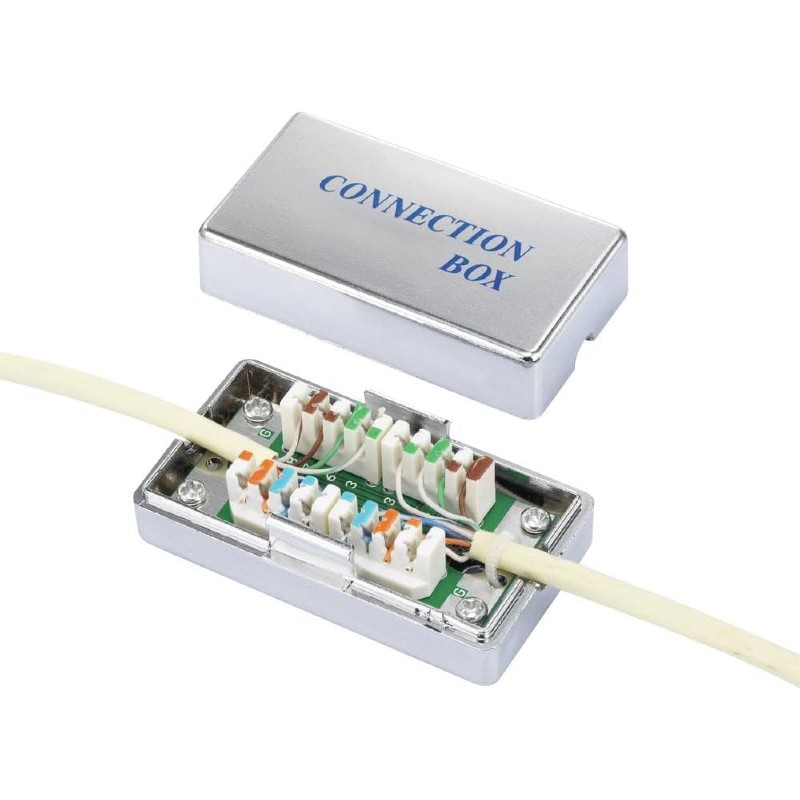

EZ-CBS-5e, STP Cat.5e SHIELDED Connection Box - 2 cutting field
[2934][EZ-CBS-5e]

Price: 1,65€

Prices exclude VAT

In Stock: 15

Order Qty:

UPC:	728615665925

EZ-CBU-5e - Category 5e Connection Box SHIELDED

Features:

Full compliance with Category 5e standard requirements for a consolidation point
Quick release lid
Robust outer casing
Patented cable retention clip
Supplied with fixing screws and adhesive pad for optional mounting
IDC's - industry standard 'Krone LSA+' type

Specifications:
Part #	EZ-CBU-5e
Material	PC+ABS (compliant withROHS,UL 94V-0 fire resistant)
PCB type	FR-4 / 1.6mm thickness,UL 94V-0 certificated
LSA IDC Terminal	Phosphor Bronze with Nickel plated.
Suitable for	CAT5/5e CableAWG26 - AWG24.
Color	Silver
Dimensions	65x35x25mm
Weight	50g

Package Contents:
1 x EZ-CBS-5e

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
