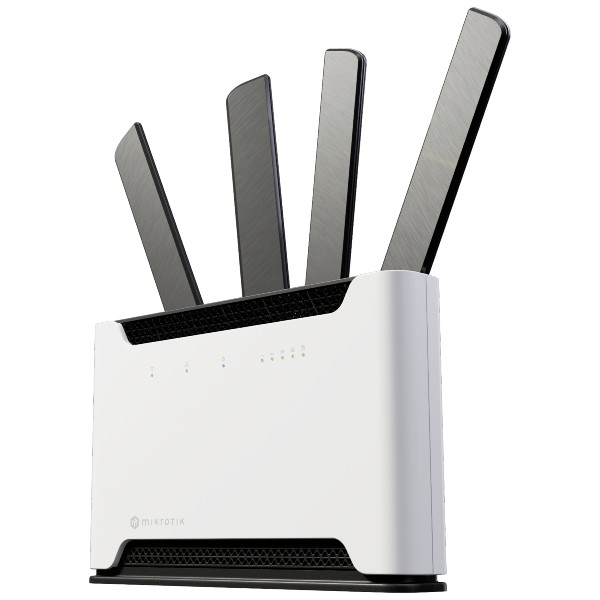

Chateau 5G ax - Generation 6 version of Chateau 5G. Much faster wireless, improved CPU, and now – with 2.5 Gigabit Ethernet!
With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau 5G ax can deliver unprecedented speed. 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum!

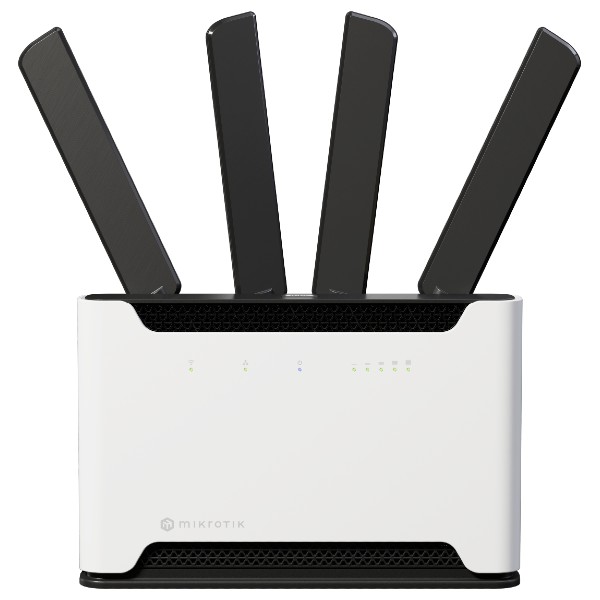

Chateau 5G ax supports MIMO 4x4 on 5G and LTE. There are 6 built-in LTE/5G antennas. One pair of external antennas provides even better wireless network coverage in the largest homes, and the other - improved LTE/5G connectivity.

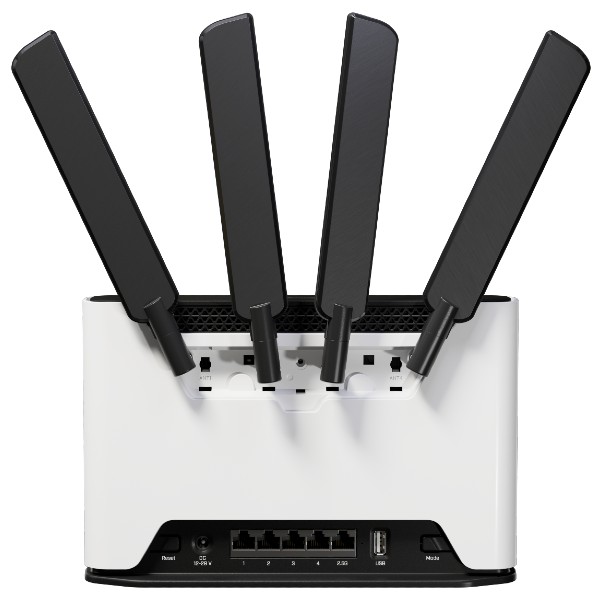

Four Gigabit Ethernet ports and added a 2.5 Gigabit Ethernet port on top, and a USB 3.0 which can be handy for storage purposes.
The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. With the addition of WPA3 advanced encryption support, you’re safer than ever before.
|
Specifications: |
|
Product code |
S53UG+M-5HaxD2HaxD-TC&RG502Q-EA |
|
Architecture |
ARM 64bit |
|
CPU |
IPQ-6010 |
|
CPU core count |
4 |
|
CPU nominal frequency |
auto (864-1800) MHz |
|
RouterOS license |
4 |
|
Operating System |
RouterOS (v7 only) |
|
Size of RAM |
1 GB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
Number of DC inputs |
1 (DC jack) |
|
DC jack input Voltage |
12-28 V |
|
Max power consumption |
19 W |
|
Max power consumption without attachments |
16 W |
|
Cooling type |
Passive |
|
Mobile |
|
3G Category |
R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
|
3G bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 6 (850 MHz) / 8 (900MHz) / 19 (800 MHz) |
|
LTE Category |
20 (2.0 Gbps Downlink, 200 Mbps Uplink) |
|
MIMO DL |
4x4 |
|
MIMO UL |
1x1 |
|
LTE FDD bands |
3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz)
1 (2100MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz) / 32 (1500 MHz) |
|
LTE TDD bands |
34 (2000 MHz) / 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
|
5G NSA FDD bands |
1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) |
|
5G NSA TDD bands |
38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz) |
|
5G SA FDD bands |
1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) |
|
5G SA TDD bands |
38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz) |
|
Wireless specifications
|
|
Wireless 2.4 GHz Max data rate |
574 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n/ax |
|
Antenna gain dBi for 2.4 GHz |
3 |
|
Wireless 2.4 GHz chip model |
QCN-5022 |
|
Wireless 2.4 GHz generation |
Wi-Fi 6 |
|
Wireless 5 GHz Max data rate |
1200 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac/ax |
|
Antenna gain dBi for 5 GHz |
6 |
|
Wireless 5 GHz chip model |
QCN-5052 |
|
Wireless 5 GHz generation |
Wi-Fi 6 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
4 |
|
Number of 2.5G Ethernet ports |
1 |
|
Peripherals |
|
Number of SIM slots |
1 Modem (Micro SIM) |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
|
Number of M.2 slots |
1 |

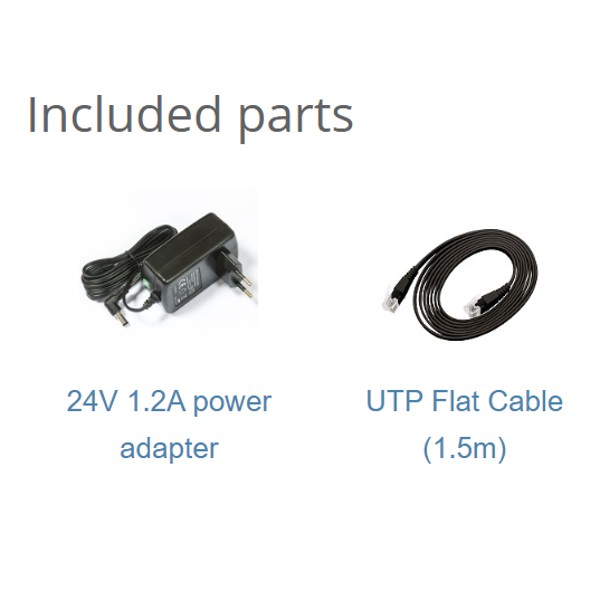

| Package Contents: |
|---|
| 1 x Chateau 5G ax
|
| 1 x 24V 1.2A power adapter
|
| 1 x UTP Flat Cable 1.5m |
|
