The product is
no longer available |
| Prices exclude VAT |
|
|
|
|

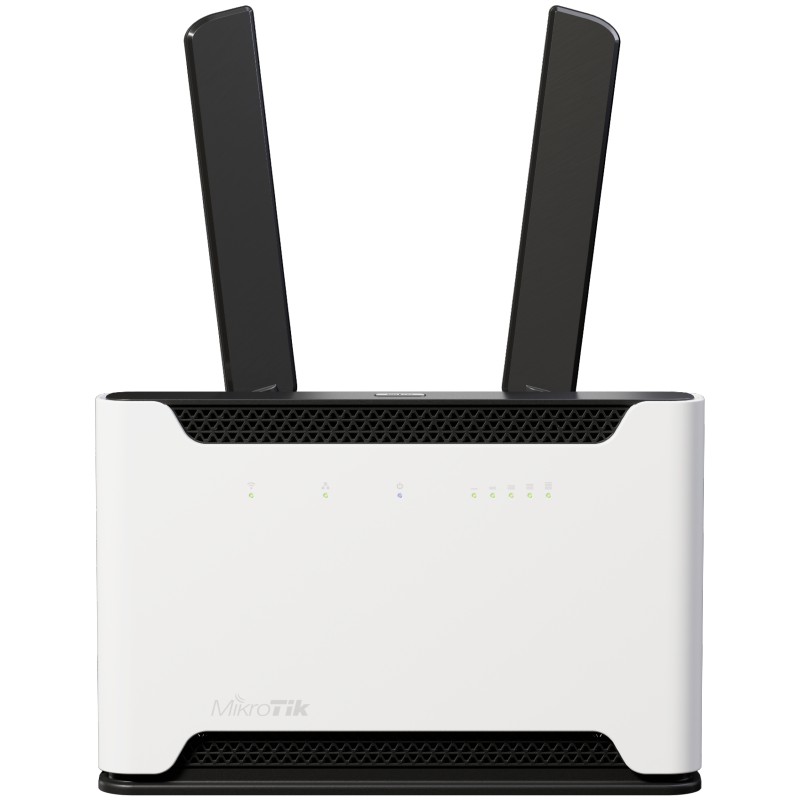

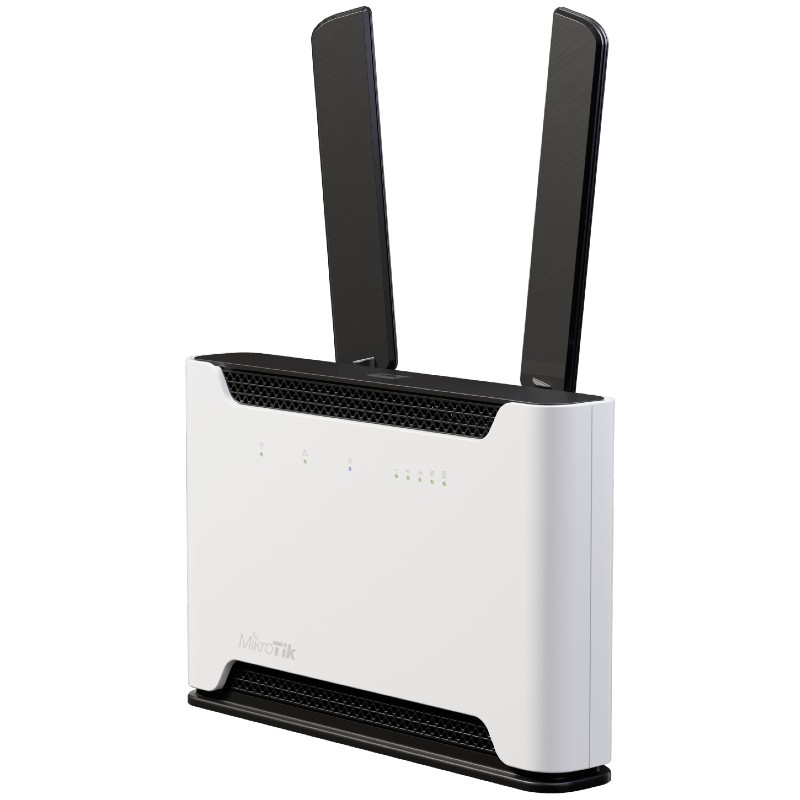

Chateau 5G - One router to delight them all – introducing the ultimate home AP with ultra-fast LTE/5G support
Chateau 5G s a high-speed, dual-band home access point with LTE/5G support – for really fast Internet anywhere, anytime.
There are many options to choose from, depending on your needs: from CAT4 LTE up to the CAT20 LTE and the ultra-fast 5G. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.
Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.
Chateau can be customized: you can choose a variety of labels, we can print your branding, if necessary. And there is another great feature – you can use TR-069 technology to create a custom remote client management option.
You can choose how much control your clients need and which features of the highly versatile RouterOS they get to use.
|
Specifications |
|
Product code |
D53G-5HacD2HnD-TC&RG502Q-EA |
|
Architecture |
ARM 32bit |
|
CPU |
IPQ-4019 |
|
CPU core count |
4 |
|
Dimensions |
240 x 156 x 44 mm |
|
RouterOS license |
4 |
|
Operating System |
RouterOS (v7 only) |
|
Size of RAM |
256 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
Number of DC inputs |
1 (DC jack) |
|
DC jack input Voltage |
12-28 V |
|
FAN count |
Passive |
|
Mobile |
|
3G Category |
R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
|
3G bands |
6 (850 MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
19 (800 MHz) / 1 (2100MHz) |
|
LTE Category |
20 (2.0 Gbps Downlink, 200 Mbps Uplink) |
|
LTE FDD bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz)
8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz) / 20 (800MHz)
26 (850MHz) / 28 (700MHz) / 32 (1500 MHz) |
|
LTE TDD bands |
38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz)
42 (3500MHz) / 43 (3700MHz) / 34 (2000 MHz) |
|
Wireless specifications
|
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Antenna gain dBi for 2.4 GHz |
3 |
|
Wireless 2.4 GHz chip model |
IPQ-4019 |
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
|
Wireless 5 GHz Max data rate |
867 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac |
|
Antenna gain dBi for 5 GHz |
4 |
|
Wireless 5 GHz chip model |
IPQ-4019 |
|
Wireless 5 GHz generation |
Wi-Fi 5 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
5 |
|
Peripherals
|
|
Number of SIM slots |
1 Modem (Micro SIM) |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
| Package Contents: |
|---|
| 1 x Chateau LTE12
|
| 2 x External LTE/5G antennas
|
| 1 x 24V 1.5A power adapter
|
| 1 x UTP Flat Cable 1.5m |
|
