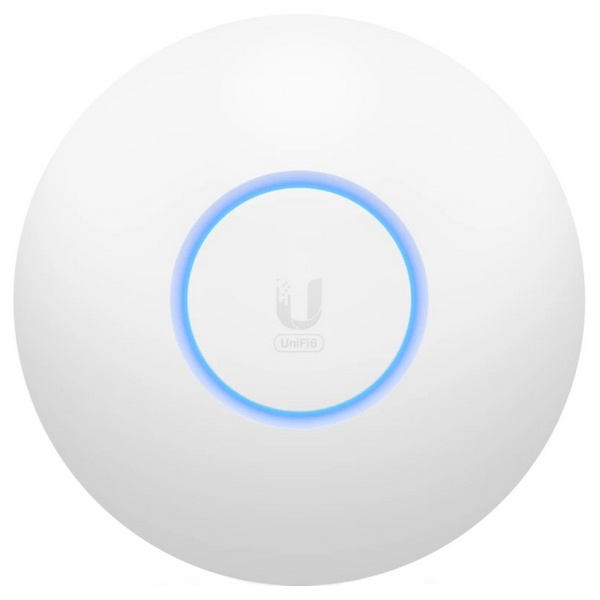

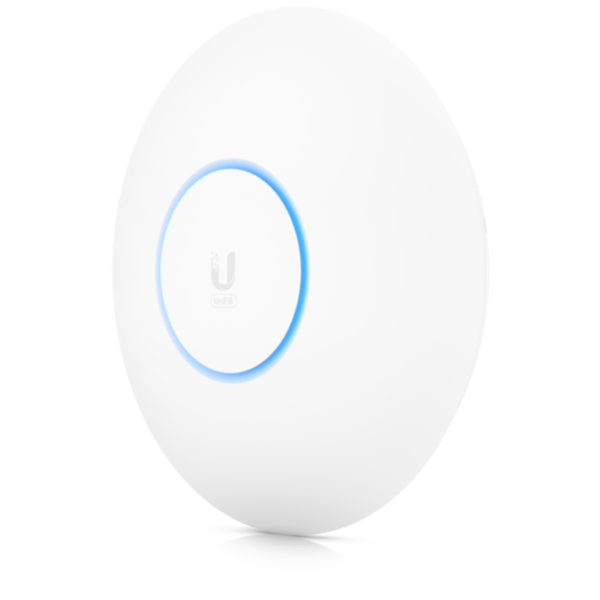

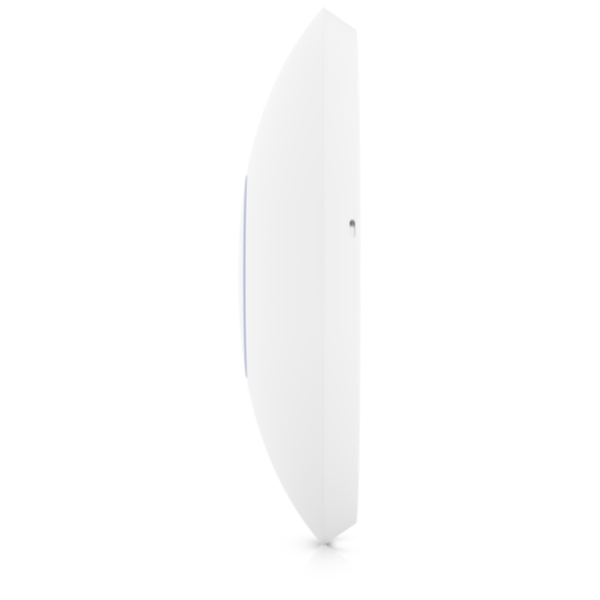

U6-LR - UniFi 6 Long-Range Access Point
U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios.
The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features:
-
1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
-
Four-stream high-efficiency Wi-Fi 6 technology
-
5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
-
2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
-
Powered with 802.3at PoE (PoE injector not included)
|
MECHANICAL |
|
Dimensions |
Ø220 x 48 mm |
|
Weight |
Without Mount: 800 g
With Mount: 930 g |
|
Enclosure Material |
Plastic |
|
Mounting Material |
SGCC Steel |
|
Weatherproofing |
IP54 |
|
HARDWARE |
|
Processor Specs |
Dual-Core® Cortex® A53 at 1.35 GHz |
|
Memory Information |
512 MB |
|
Management Interface |
Ethernet |
|
Networking Interface |

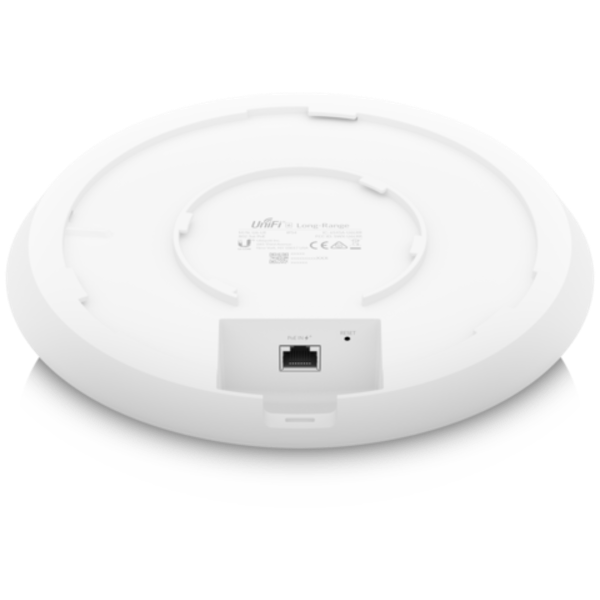

(1) 1 Gbps Ethernet RJ45 |
|
Button |
Factory Reset |
|
LEDs |
RGB |
|
Power Method |
PoE+, Passive PoE (48V) |
|
Power Supply |
UniFi PoE Switch
48V, 0.5A PoE Adapter (Not Included) |
|
Supported Voltage Range |
44 to 57VDC |
|
Max. Power Consumption |
16.5W |
|
Max. TX Power |
26 dBm @ 2.4 GHz
26 dBm @ 5 GHz |
|
MIMO |
4 x 4 @ 2.4 GHz
4 x 4 @ 5 GHz |
|
Throughput Speeds |
600 Mbps @ 2.4 GHz
2400 Mbps @ 5 GHz |
|
Antenna Gain |
4 dBi @ 2.4 GHz
5.5 dBi @ 5 GHz |
|
Mounting |
Wall/Ceiling (Kits Included) |
|
Operating Temperature |
-30 to 60° C |
|
Operating Humidity |
5 - 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
SOFTWARE |
|
Wi-Fi Standards |
802.11a/b/g, Wi-Fi 4/5/6 |
|
Wireless Security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) |
|
BSSID |
8 per Radio |
|
VLAN |
802.1Q |
|
Advanced QoS |
Per-User Rate Limiting |
|
Guest Trafc Isolation |
Supported |
|
Concurrent Clients |
300+ |
|
SUPPORTED DATA RATES (MBPS) |
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11n (Wi-Fi 4) |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
|
802.11ac (Wi-Fi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
|
802.11ax (Wi-Fi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |

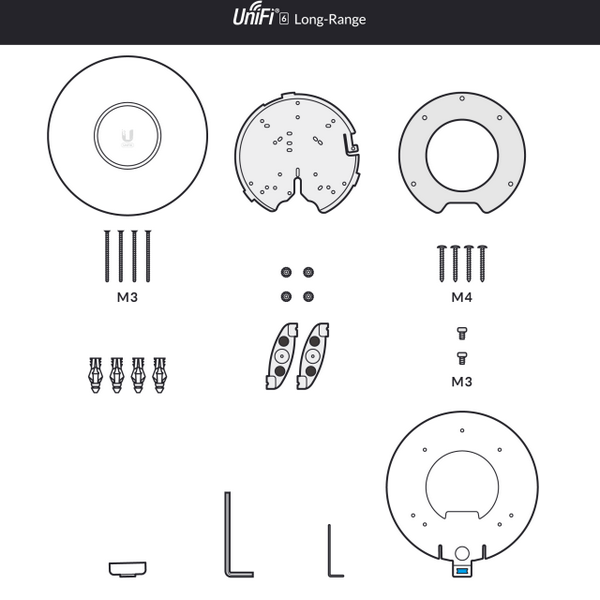

| Package Contents: |
|---|
| 1 x U6-LR
|
| 1 x Wall Mounting Kit
|
| 0 x Without PoE |
|
