Complying with the powerful 802.11ac standard, AC12 delivers a blazing-fast Wi-Fi speed of up to 1200Mbps, which is 3x faster than the speed of the previous 802.11n standard.
AC12 lets your home devices achieve their optimal Wi-Fi performance. It is the superior choice for providing faster, stronger Wi-Fi over your home or office.
AC12 provides simultaneous dual-band Wi-Fi signals. The 2.4GHz band delivers 300Mbps Wi-Fi for everyday activities like surfing the internet and sending emails. The crystal 5GHz band reaches 867Mbps so you can game online and stream in HD simultaneously. Both bands work at the same time to meet the needs of multiple tasks on different devices.

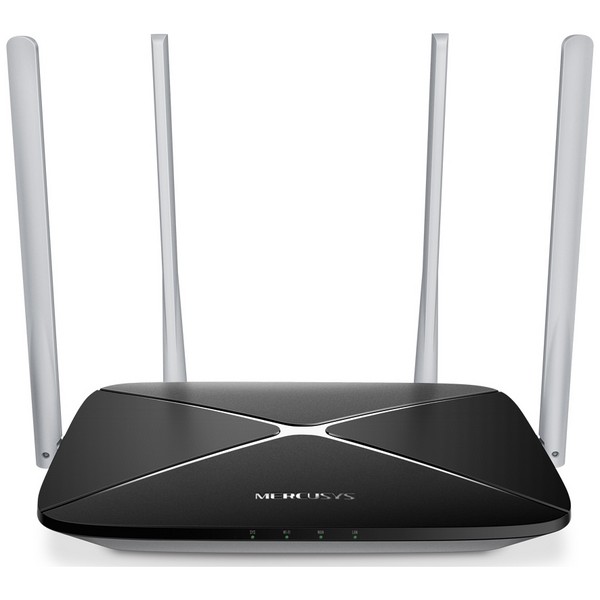

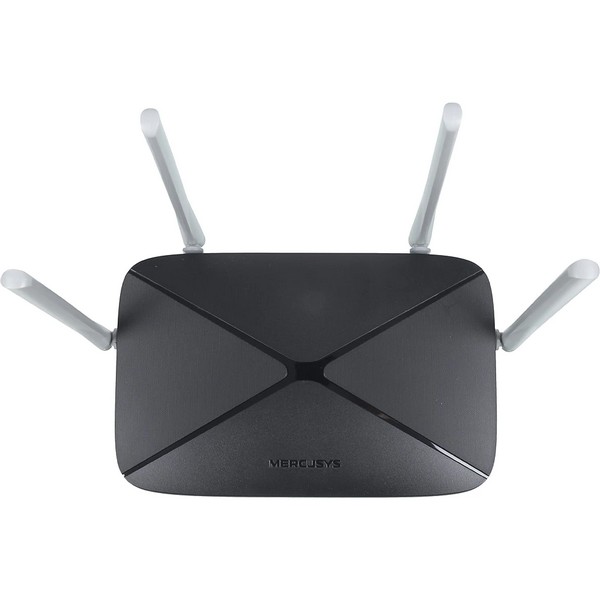

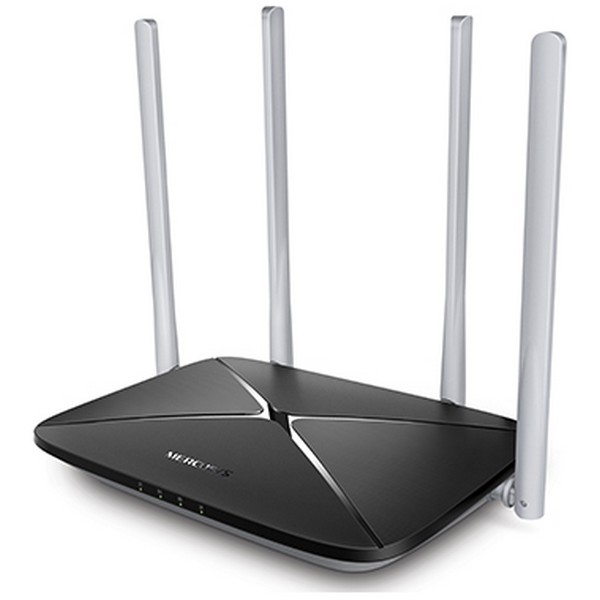

Four external 5dBi antennas powered with advanced antenna technology provide users with larger wireless coverage and wireless signal intensity throughout your large home or office, making weak, dropped connections a thing of the past.
|
Specifications: |
|

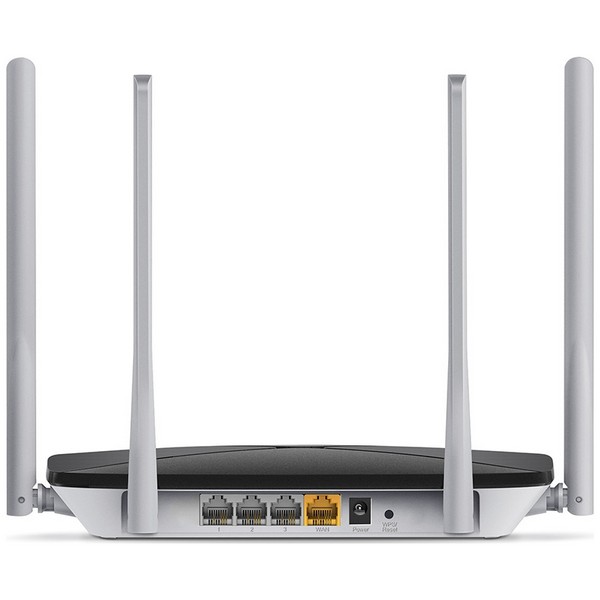

Ethernet Ports |
LAN : 3*10/100Mbps
WAN : 1*10/100Mbps |
|
Button |
WPS/Reset Button |
|
External Power Supply |
9V/0.85A |
|
Dimensions (W X D X H) |
222 x 140 x 32 mm |
|
Antenna Type |
4 * 5dBi |
|
Wireless Standards |
IEEE 802.11a/n/ac 5GHz
IEEE 802.11b/g/n 2.4GHz |
|
Frequency |
2.4 - 2.5GHz, 5.15 - 5.25GHz |
|
Signal Rate |
300Mbps at 2.4GHz
867Mbps at 5GHz |
|
Reception Sensitivity |
5GHz
• 11a 6M: -92dBm
• 11a 54M: -75dBm
• 11ac 20M MCS8: -70dBm
• 11ac 40M MCS9: -64dBm
• 11ac 80M MCS9: -60dBm
2.4GHz
• 11g 6M: -95dBm
• 11g 54M: -77dBm
• 11n 20M MCS7: -74dBm
• 11n 40M MCS7: -71dBm |
|
Wireless Security |
WPA-PSK / WPA2-PSK |
|
WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
|
Management |
Access Control
Local Management
Remote Management |
|
Firewall Security |
IP and MAC Address Binding |
|
Guest Network |
2.4GHz Guest Network
5GHz Guest Network |
|
Operating Temperature: |
0°C~40°C |
|
Operating Humidity: |
10%~90% Non-Condensing |
| Package Contents: |
|---|
| 1 x AC12
|
| 1 x Quick Installation Guide
|
| 1 x Power Adapter 9V / 0.85Α
|
| 1 x Lan Cable |
|
