Aerial.net :: EZ3+ PCB 250mw 24dB 802.11b/g (BR3+, AR3+, CR3+)

EZ3

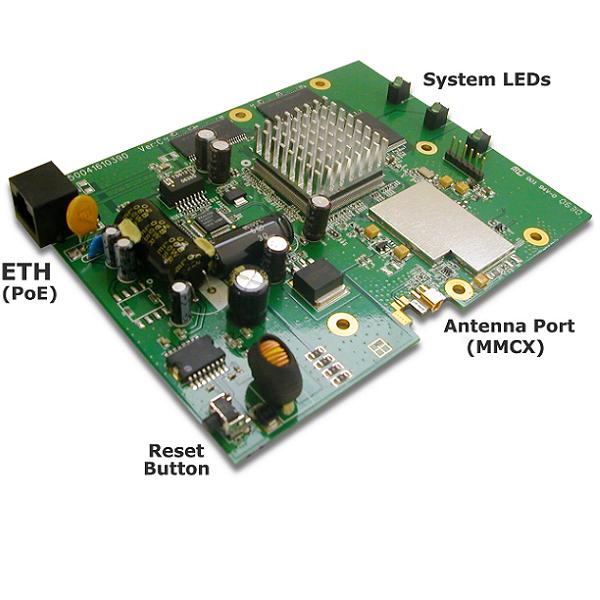

EZ3+ PCB 250mw 24dB 802.11b/g (BR3+, AR3+, CR3+)
[0250][EZ3]

The product is
no longer available

Prices exclude VAT

Datasheet

Manual

Dimensions

Firmware

Live Demo units in the following modes :
(User Name = demo / Password = demo)

AP Client Bridge

AP Client Router

The EZ3 PCB can be powered by any of the following PoE devices :


48V Power over Ethernet Passive (recommended)	48V Power over Ethernet 802.3af	Passive PoE Injector and 18v 0.8A Power Supply BUNDLE

NOTE : Pigtails sold seperately in our MMCX pigtail section

Specifications :
OS	Linux with 2.4.18 kernel
IEEE Standard Compliance	IEEE 802.11b 2.4GHz CCK IEEE 802.11g 2.4GHz OFDM
Frequency Range	2.4 GHZ – 2.485 GHz
Channel Support	ETSI: 13 ch, US11 ch, MKK: 14 ch
Data Rate	802.11b: 11 / 5,5 / 2 / 1 Mbps 802.11g: 54 / 48 / 36 / 24 / 12 / 9 / 6 Mbps
Sensitivity	802.11g: -76 +/- 2dBm @ 54Mbps 802.11b: -86 +/- 2dBm @ 11Mbps
RF output power stepping	802.11b: 0 to 24 dBm at 1dBm increments 802.11g: 0 to 20 dBm at 1dBm increments
Output power	250mW @ 11Mbit 802.11b 100mW @ 54Mbit 802.11g
AR3+ (AP Router):	Access Point Router Universal Repeater
CR3+ (Client Router) :	Access Point Client Router Universal Repeater
BR3+ (Bridge) :	AP AP Client Point to Point WDS WDS + AP Universal Repeater
Security :	Password protection MAC filtering Hidden SSID broadcast 64 / 128-bit WEP encryption WAP for 802.1x and WPA-PSK WAP2 / IEEE 802.11i
Management	Web interface SSH connection Telnet connection SNMP Windows Utility
Antenna connector	MMCX
Power	802.3af PoE and/or 10V to 48 V Passive PoE
Operating environment	Temprature -30C to 60C Humidity 10 – 90% (non condensing)
Wi-Fi Complaiant	2.4 GHz band (802.11b) 2.4 GHz band (802.11g) WPA and WPA2

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
