Ubiquiti UMA-D, High Efficiency Dual-Band Directional Mesh Antenna
[2260][UMA-D]
Price: 83,30€
 Order or Qty  Price
 > 500€  5+   82,47€
 > 1000€  10+   81,64€
 > 2000€  20+   80,80€
 > 5000€  40+   79,97€
 > 10000€  100+   79,14€
Prices exclude VAT

Ubiquiti UMA-D, High Efficiency Dual-Band Directional Mesh Antenna

No Stock
Order Qty:
UPC:817882022736

UMA-D

Is a dual-band, dual-polarity antenna optimized for 802.11ac.

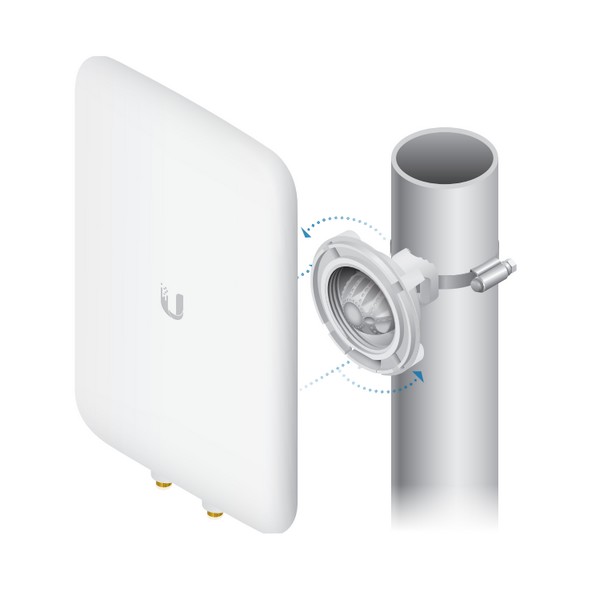

It offers a directional radiation pattern and a three-axis ball joint mount for precise aiming.

Directivity allows you to get coverage where you need it.

With its high-efficiency radiator, the UMA-D delivers significantly better performance for your desired coverage area and less interference with neighboring APs.

Use the included mount for horizontal or vertical mounting on a wall, ceiling, or pole.

Specifications:
Dimensions 201.3 x 128.0 x 32.5 mm
Weight
(with Mount)
(without Mount)

480 g
400 g
Enclosure Outdoor UV Stabilized Plastic
RF Connections (2) RP-SMA
Supported Frequency Range 2.4 - 2.5 GHz, 5.1 - 5.9 GHz
HPOL Beamwidth
2.4 GHz
5 GHz

90°
45°
VPOL Beamwidth
2.4 GHz
5 GHz

90°
45°
Elevation Beamwidth
2.4 GHz
5 GHz

90°
45°
Maximum VSWR 2.5:1
Polarization Dual-Linear
Cross-Pol Isolation 2.4 GHz 5 GHz  25 dB 30 dB
Antenna Gain 2.4 GHz 5 GHz 10 dBi 15 dBi
Mounting Wall/Pole (Kits Included)


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
