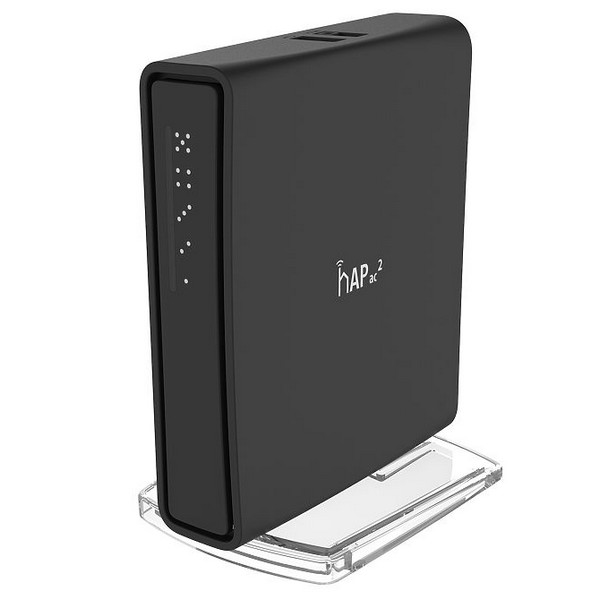

hAP ac² - Dual-Concurrent 2.4/5GHz AP, 802.11a/b/g/n/ac, Five Gigabit Ethernet ports, USB for 3G/4G support, universal tower case and IPsec hardware encryption support
The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time.
Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.

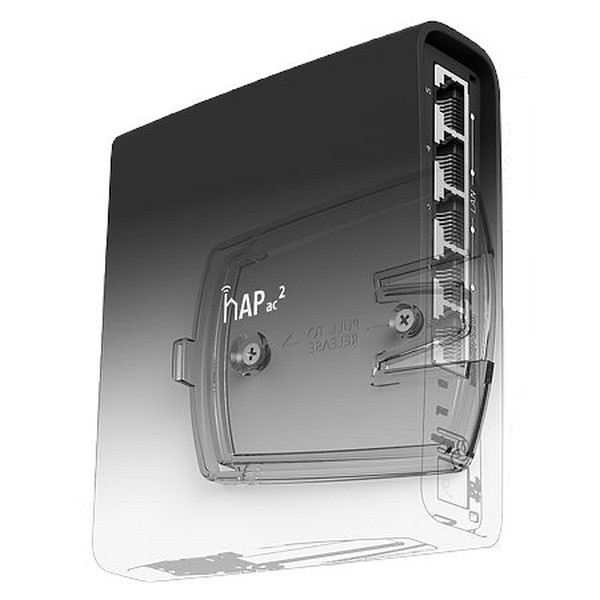

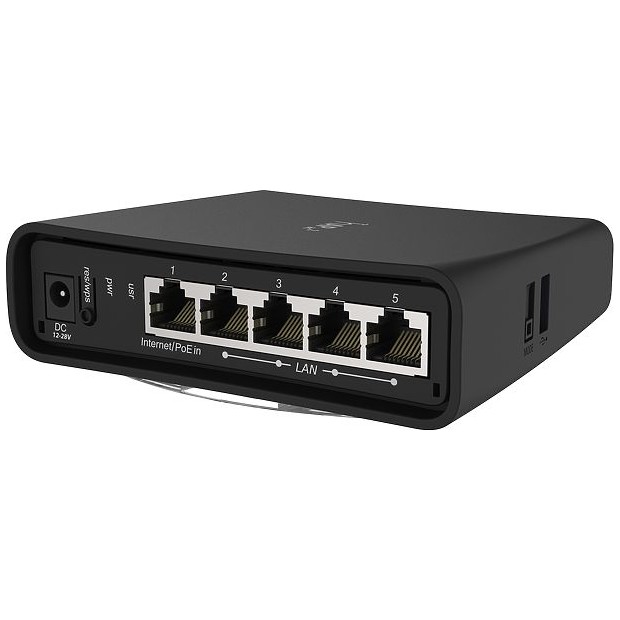

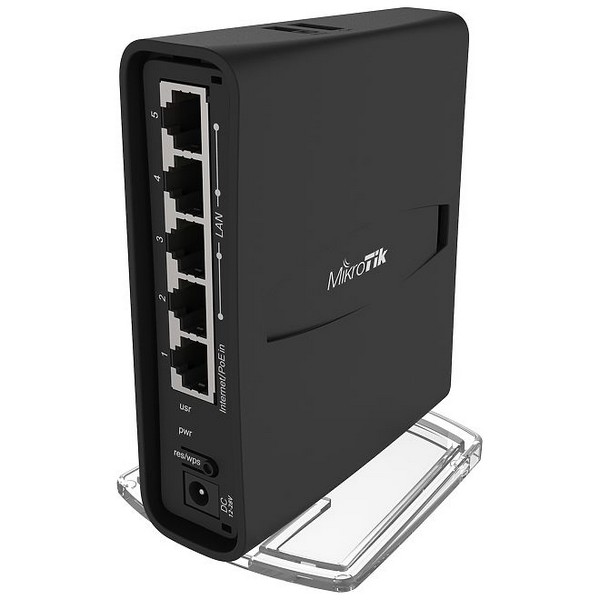

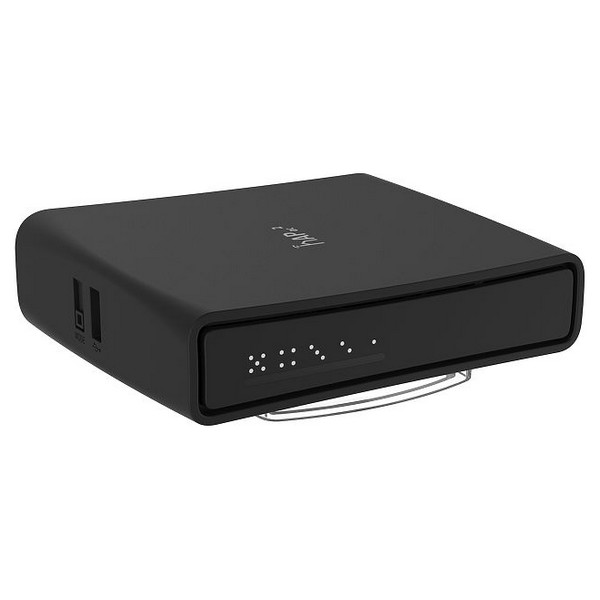

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
- hAP ac2 supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
|
Sp[ecifications: |
|
Product code |
RBD52G-5HacD2HnD-TC |
|
Architecture |
ARM 32bit |
|
CPU |
IPQ-4018 |
|
CPU core count |
4 |
|
CPU nominal frequency |
716 MHz |
|
Dimensions |
34 x 119 x 98mm |
|
License level |
4 |
|
Operating System |
RouterOS |
|
Size of RAM |
128 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-40°C to 50°C |
|
Powering |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
18-28 V |
|
Number of DC inputs |
2 (PoE-IN, DC jack) |
|
DC jack input Voltage |
12-30 V |
|
Max power consumption |
21 W |
|
Max power consumption without attachments |
16 W |
|
Wireless |
|
AC speed |
AC1200 |
|
Antenna gain dBi for 2.4 GHz |
2.5 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Wi-Fi generation |
5 |
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
Wireless 5 GHz Max data rate |
867 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz chip model |
IPQ-4018 |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac |
|
Antenna gain dBi for 5 GHz |
2.5 |
|
Wireless 5 GHz chip model |
IPQ-4018 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
5 |
|
Peripherals |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
| Package Contents: |
|---|
| 1 x hAP ac2
|
| 1 x Power Supply 24V 0.8A EU type |
|
