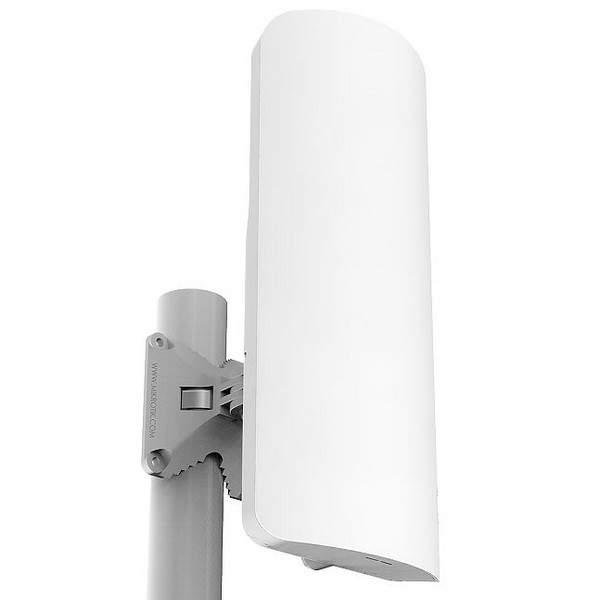

mANTBox 2 12s - 2.4GHz 120° 12dBi dual polarization sector Integrated antenna with 600Mhz CPU, 64MB RAM, Gigabit Ethernet, PSU and PoE
mANTBox 2 12s is long range 12dbi 120° integrated Base Station for 2.4 GHz.
The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in.
Powered by the RB911 device, the mANTBox comes ready to use with everything included.
The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.
|
Specifications |
|
Product code |
RB911G-2HPnD-12S |
|
CPU |
AR9342 |
|
CPU core count |
1 |
|
CPU nominal frequency |
600 MHz |
|
Dimensions |
140 x 348 x 82 mm |
|
License level |
4 |
|
Operating System |
RouterOS |
|
Size of RAM |
64 MB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
Tested ambient temperature |
-40°C to 70°C |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
10-28 V |
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
8-30 V |
|
Max power consumption |
11 W |
|
Antenna gain dBi for 2.4 GHz |
12 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Wi-Fi generation |
4 |
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz chip model |
AR9342 |
|
10/100/1000 Ethernet ports |
1 |

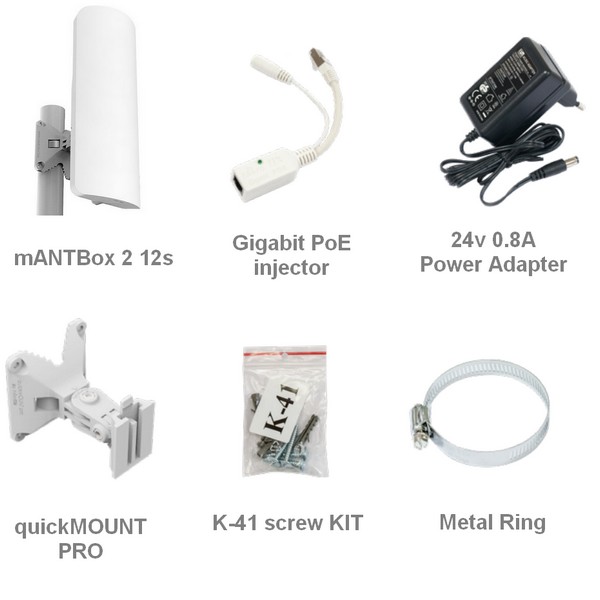

| Package Contents: |
|---|
| 1 x MANTBox 2 12s
|
| 1 x 24V 0.38A power adapter
|
| 1 x quickMOUNT PRO
|
| 1 x Metal ring
|
| 1 x PoE injector |
|
