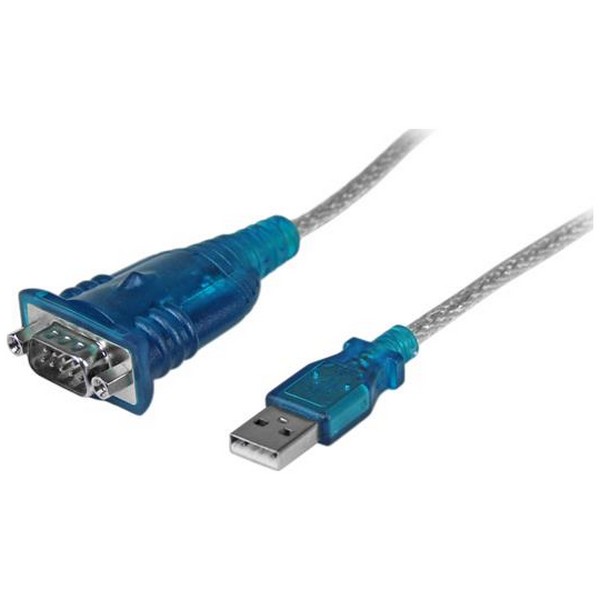

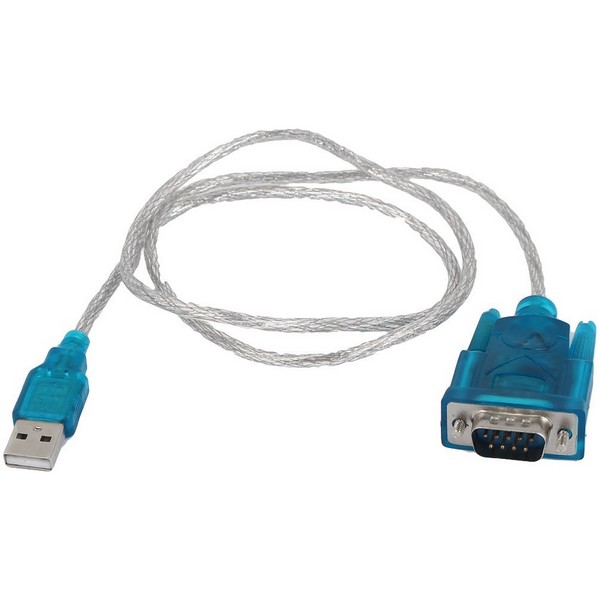

The IOT-U2RS USB to Serial Adapter converts a USB port into an RS232 DB9 serial port to connect to, monitor, and control a serial device.
Supporting data transfer rates up to 921.6 Kbps, the USB to serial cable is a convenient and cost-saving solution for providing serial connectivity to devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.
The USB to RS232 converter is easy to install and offers broad operating system compatibility for easy integration into mixed environments.
|
Specifications: |
|
Bus Type |
USB 2.0 |
|
Chipset ID |
Prolific - PL2303RA |
|
Industry Standards |
USB 1.1/2.0 RS232 |
|
Interface |
Serial |
|
Port Style |
Cable Adapters |
|
Ports |
1 |
|
Performance: |
|
Data Bits |
5, 6, 7, 8 |
|
FIFO |
512 Bytes |
|
Flow Control |
None, Xon/Xoff, RTS/CTS, DTR/DSR |
|
Max Baud Rate |
921.6 Kbps |
|
MTBF |
30,000 Hours |
|
Parity |
Odd, Even, Mark, Space, or None Parity Modes |
|
Serial Protocol |
RS-232 |
|
Stop Bits |
1, 1.5, 2 |
|
Connectrs: |
|
Connector A |

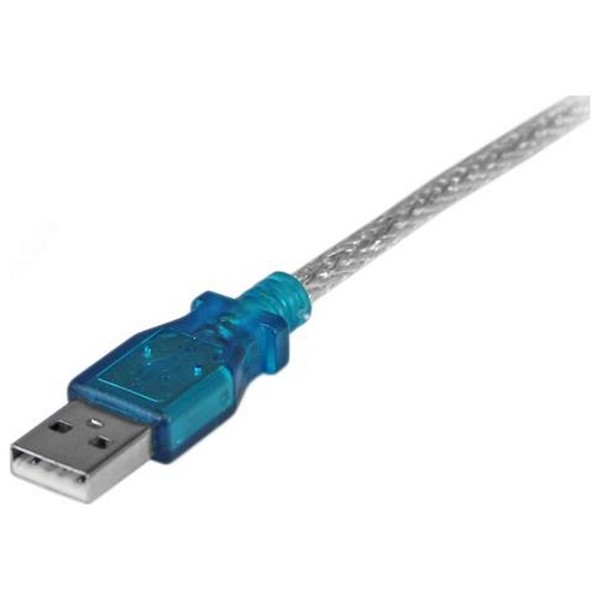

1 - USB Type-A (4 pin) USB 2.0 Male |
|
Connector B |

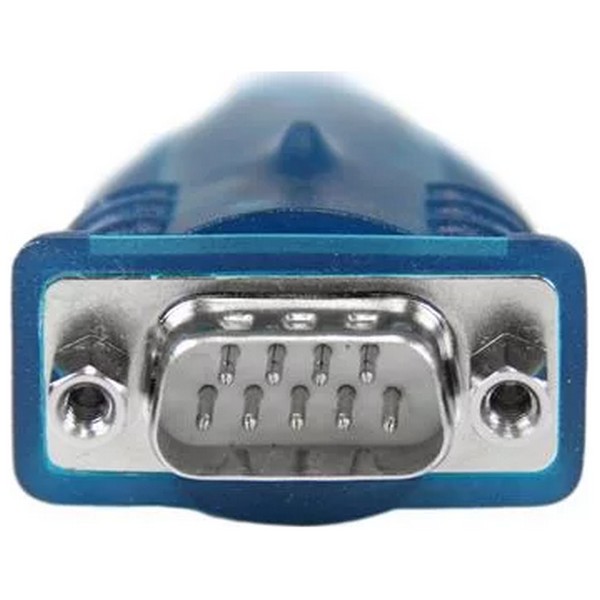

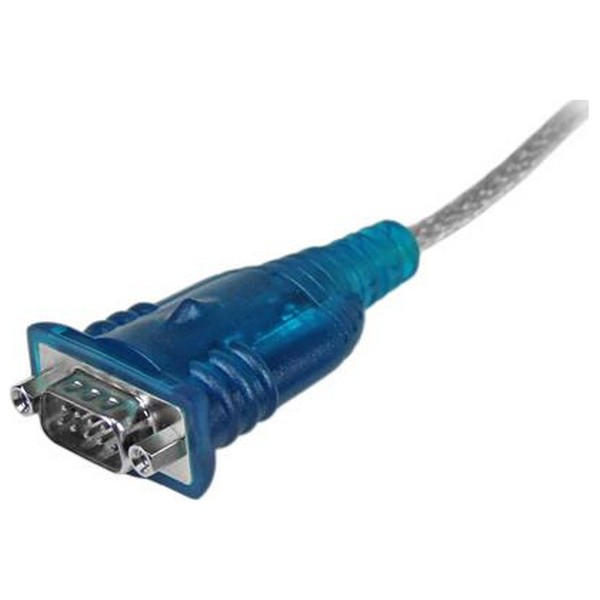

1 - DB-9 (9 pin, D-Sub) Male |
| Package Contents: |
|---|
| 1 x USB to RS232 cable adapter. |
|
