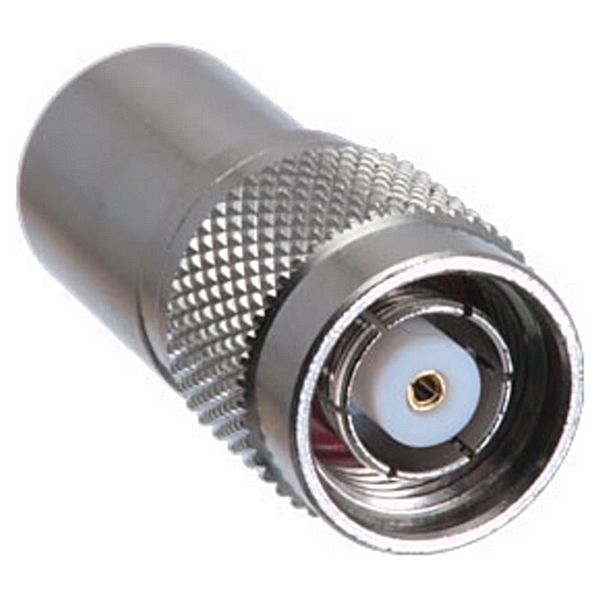

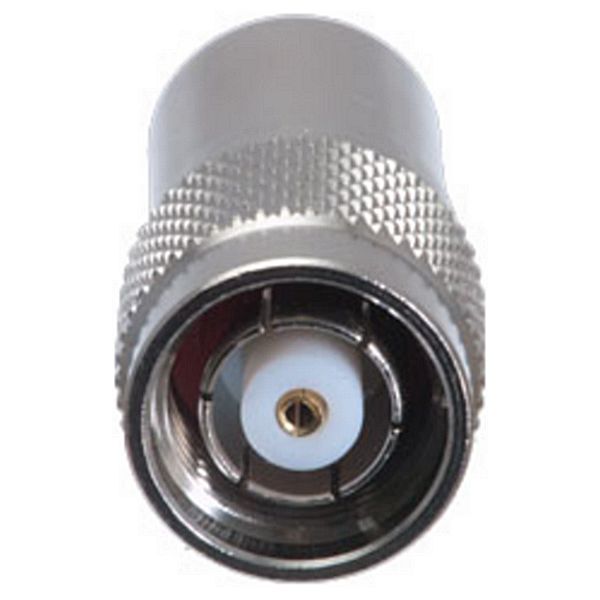

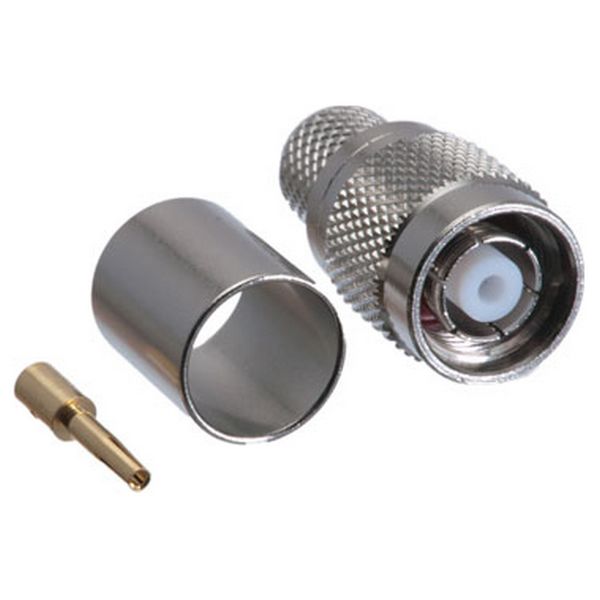

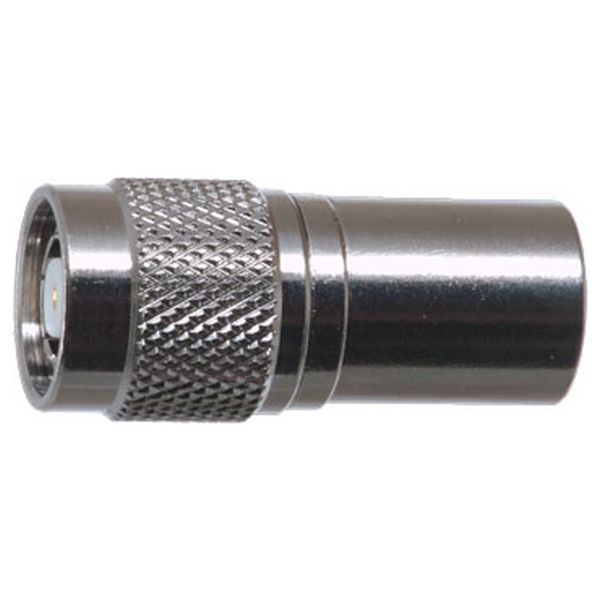

RP-TNC Plug Crimp connector for 400, RG-8 series cable
[0191][EZ-RPTNCP400]

Price: 1,99€

Prices exclude VAT

In Stock: 47

Order Qty:

EZ-RPTNCP400

RP-TNC Plug Crimp connector for 400, RG-8 series cable.

Product Links:
Product Page	Datasheet

Specifications :
Impedance	50 ohm
Frequency Range	0 to 11.0 GHz
VSWR	1.3 max
Working Voltage	1,000 volts rms max at sea level
Dielectric Withstanding Voltage	2,500 volts rms max at sea level
Contact Resistance	center contact=1.0 Milliohms max outer contact=1.0 Milliohms max
Insertion Loss	0.3 dB max at 10 GHz
Insulation Resistance	5,000 Megohms min

Connector
RP-TNC Plug

Female thread Female center pin

Package Contents:
1 x

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
