PBE-5AC-500-ISO

Ubiquiti PBE-5AC-500-ISO, 5 GHz PowerBeam ac, 500 mm, ISO
[1879][PBE-5AC-500-ISO]

The product is
no longer available

Prices exclude VAT

UPC:	810354023613

PBE‑5AC‑500‑ISO

Incorporating advanced engineering with proprietary airMAX ac technology, the PowerBeam ac ISO is ideal for deployments requiring maximum performance and RF isolation.

airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.

The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Product Links:
Datasheet	Quick Start Guide	airOS

Connectors and Interfaces:
LAN speed:	(1) 10/100/1000Mbps
Gigabit LAN:	Yes
Hardware:
RAM memory size:	128 MB
CPU:	Atheros MIPS 74KC
CPU frequency:	720 MHz
Physical characteristics:
Collar:	Yes
Purpose:	Outdoor
Buttons:	Reset
Operating temperature:	-40°C up to 70°C
Weight:	5200 g
Depth:	308 mm
Width:	564 mm
Height:	564 mm
Power:
Max. power consumption:	8 W
Power over Ethernet:	20 .. 26V DC
PoE type:	Input
Software:
Operating mode:	Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:	Transparent (bridge mode)
Default IP address:	192.168.1.20
Default login and password:	ubnt / ubnt
Wireless features:
Sensitivity:	-96 dBm
Wireless frequency:	5 GHz
Transmission speed - WiFi 5GHz:	866 Mb/s
WiFi standards:	airMAX ac
Tx power 5GHz:	22 dBm
Security:	WPA2 AES
5GHz MIMO:	2 x 2
Type of antenna:	Build-in
Internal antennas:	2
Antenna gain:	27 dBi

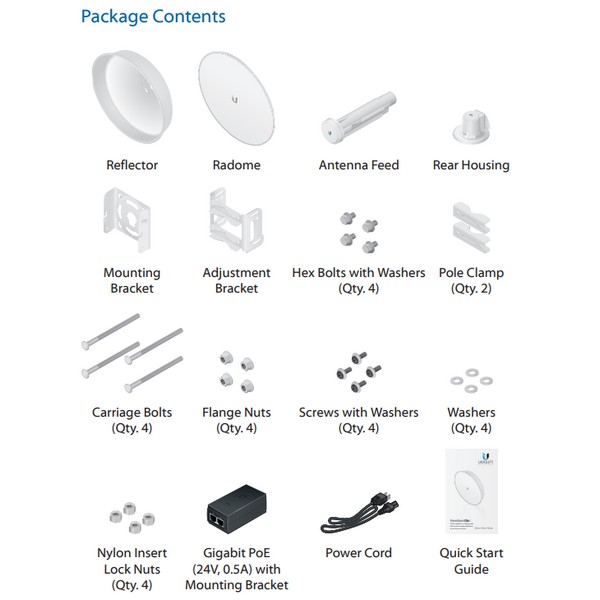

Package Contents:
1 x PBE-5AC-500-ISO
1 x Pole Mounting Kit
1 x Gigabit PoE 24V, 0.5A
1 x Power Cord

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
