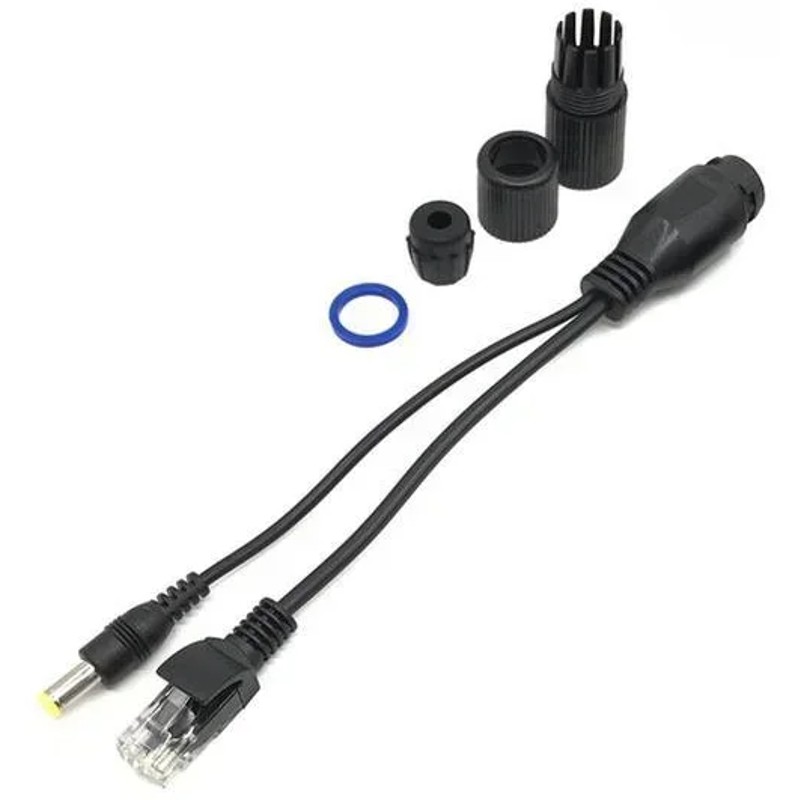

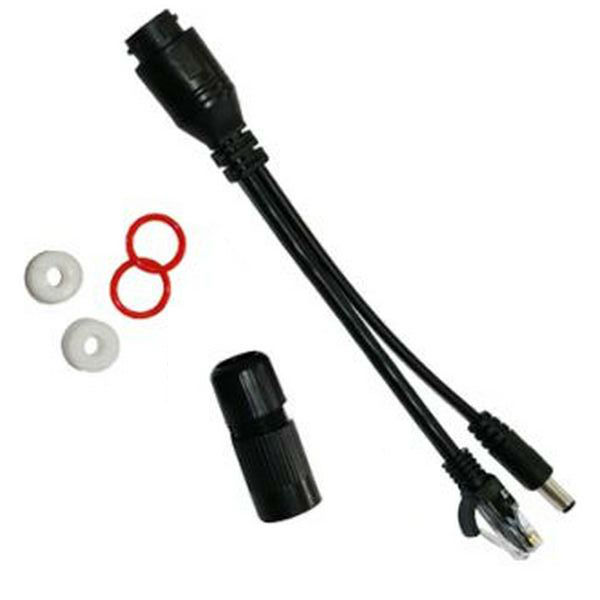

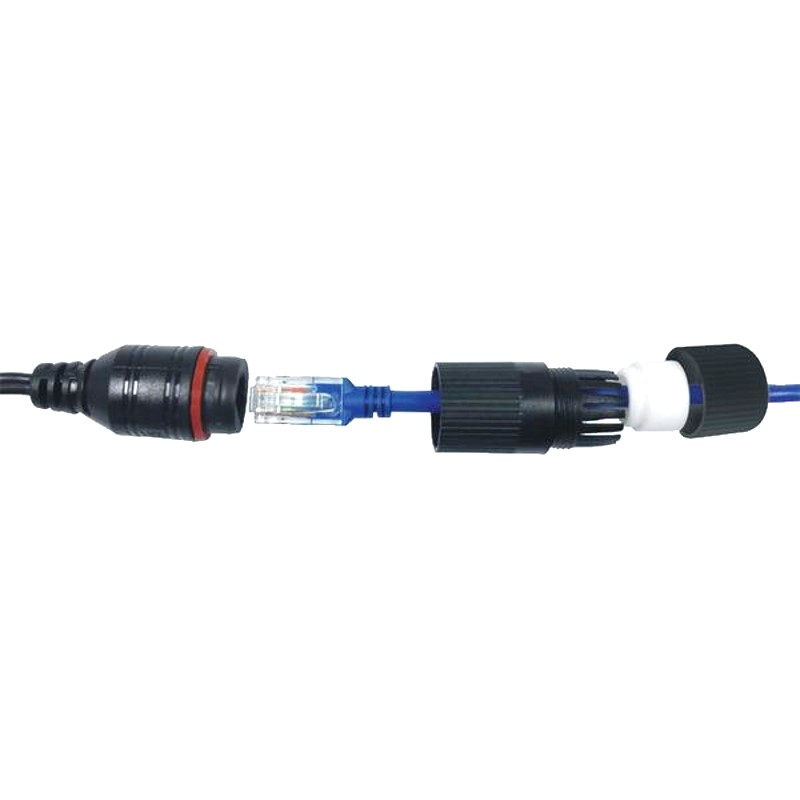

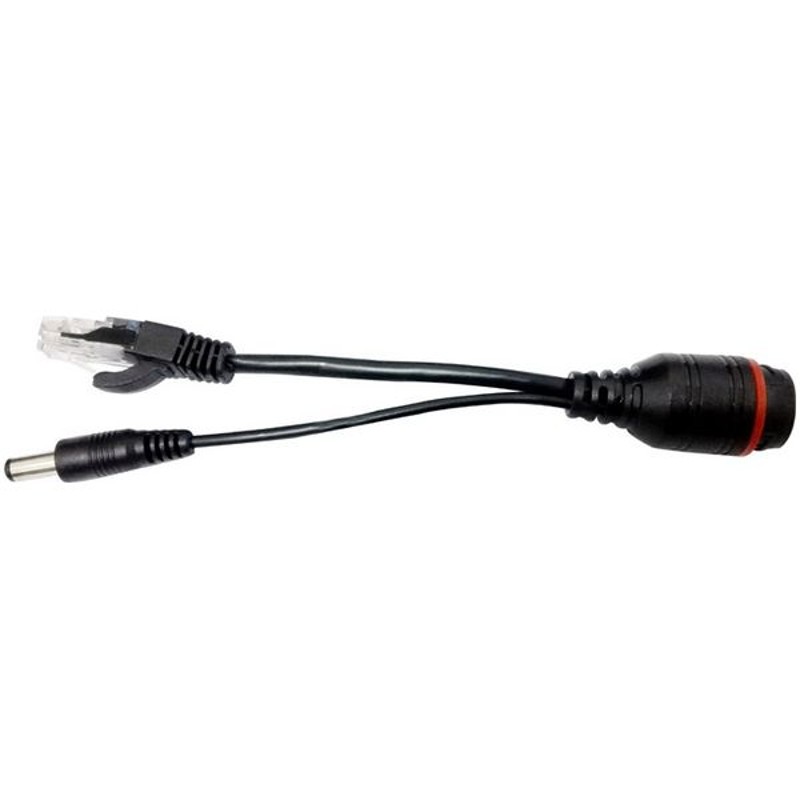

EZ-POEWS - 10/100M Outdoor Passive PoE Splitter, Cat.5e
Features:
-
Cat5 Cable
-
RJ45 Input / Output connector
-
Input / Output common ground
-
Power / Data Injector
|
Input / Output Specifications : |
|
DC Input Voltage |
5v - 48V ± 5 % |
|
DC Output Voltage |
Same as Inpute Voltage |
|
Max Output Current |
0.4A Max. |
|
Over Current Protection |
None |
|
General Specifications: |
|
Operating Temperature |
0oC ~ +50oC |
|
Storage Temperature |
-20oC ~ +70oC |
|
Humidity |
Up to 90% |
|
Weight |
50gr |
|
Dimensions |
160x22x21mm |
|
Input Pins

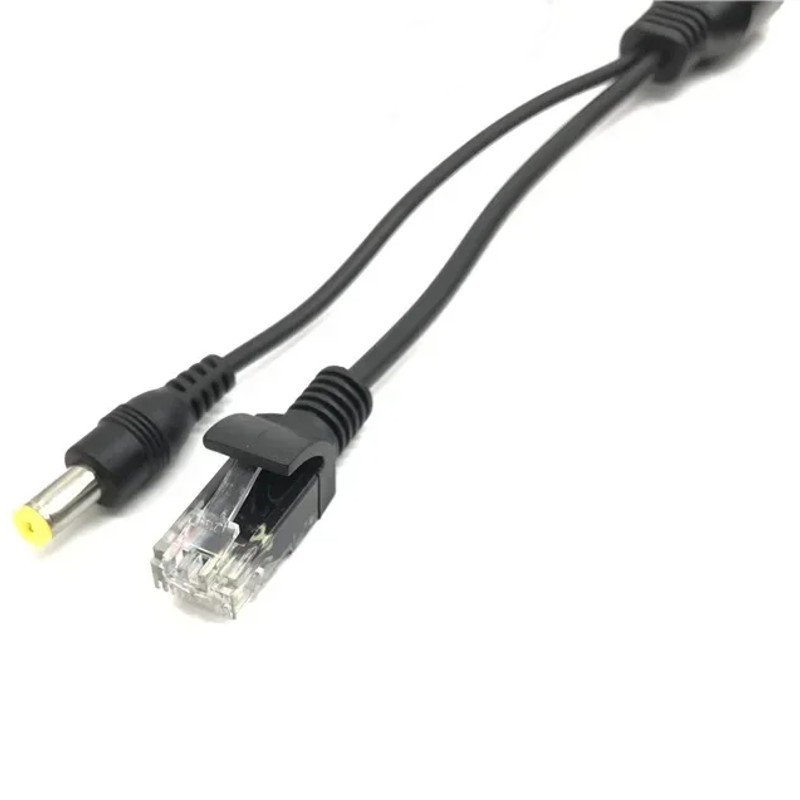

RJ-45 Plug |
Output Pins

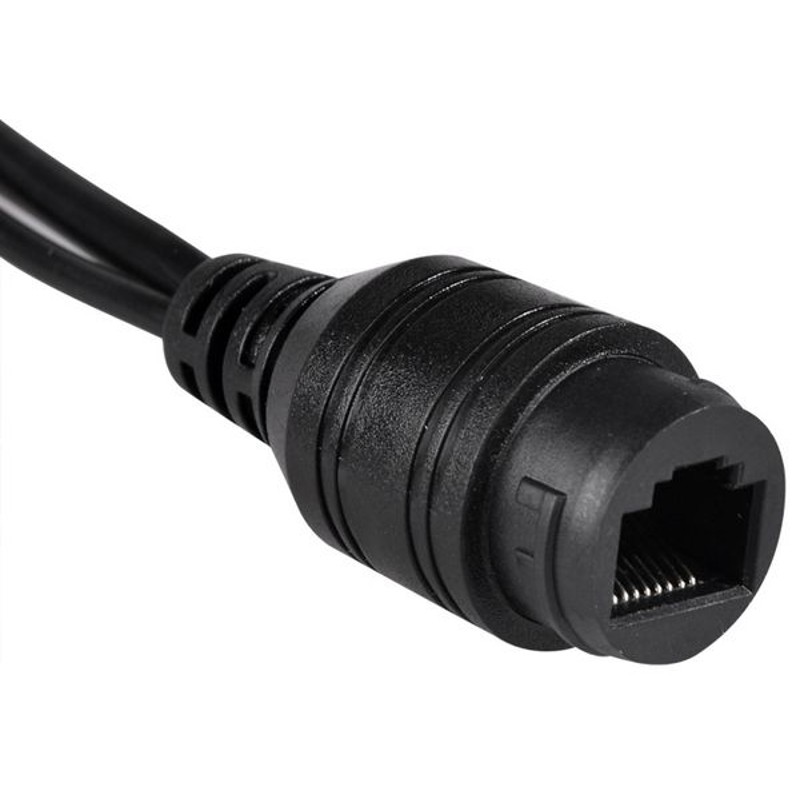

RJ-45 Jack |
|
1 |
Tx(+) |
Tx(+) |
1 |
|
2 |
Tx (-) |
Tx (-) |
2 |
|
3 |
Rx (+) |
Rx (+) |
3 |
|
4 |
N.C. |
V+ |
4 |
|
5 |
N.C. |
V+ |
5 |
|
6 |
Rx (-) |
Rx (-) |
6 |
|
7 |
N.C. |
GND |
7 |
|
8 |
N.C. |
GND |
8 |
|
| Package Contents: |
|---|
| 1 x EZ-POEWS |
|
