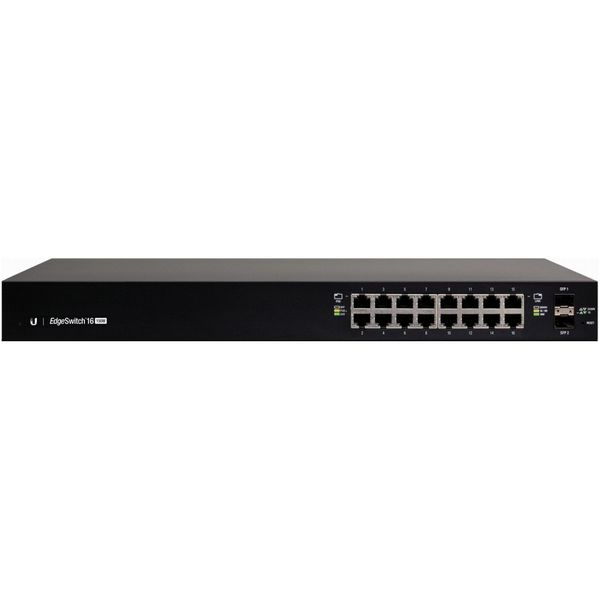

EdgeSwitch ES‑16‑150W
The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
It supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Two SFP ports support uplinks of up to 1 Gbps.
The EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface.
|
Specifications: |
|
Dimensions: |
443 x 43 x 221 mm |
|
Weight: |
2.89 kg |
|
Total Non-Blocking Throughput: |
18Gbps |
|
Max. Power Consumption: |
150 W |
|
Power Method: |
100-240VAC/50-60Hz, Universal Input |
|
Power Supply: |
AC/DC, Internal, 150W DC |
LEDs Per Port:
RJ45 Data Ports
SFP Data Ports |
PoE, Speed/Link/Activity
Speed/Link/Activity |
|

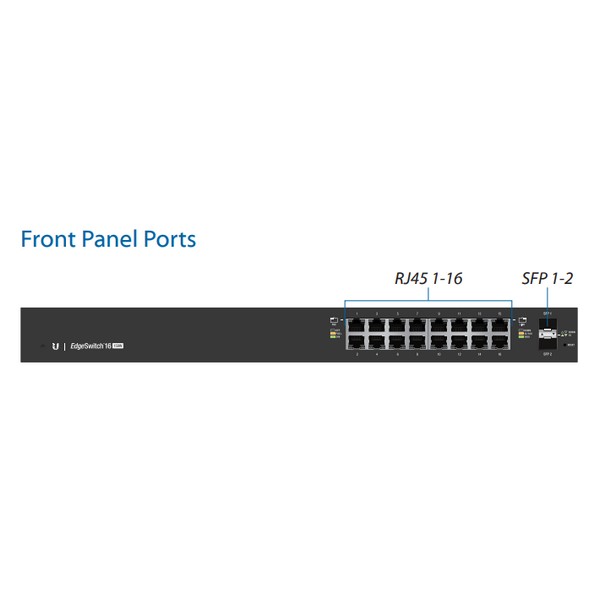

Networking Interfaces: |
16x 10/100/1000Mbps RJ45 Ethernet Ports
2x 1Gbps SFP Ethernet Ports |
|

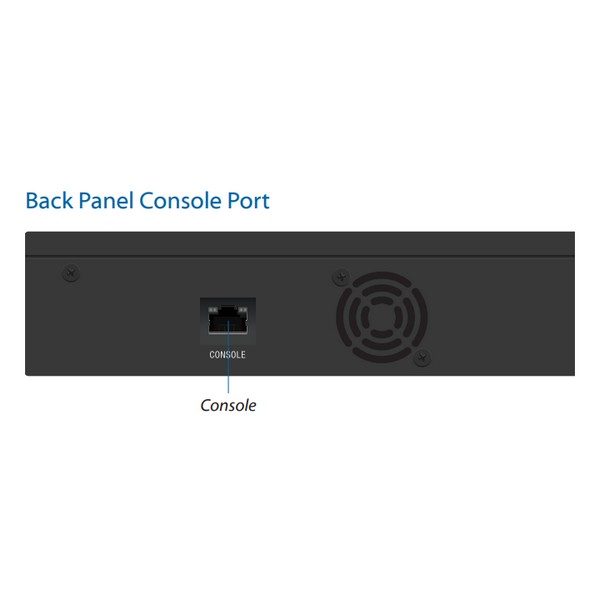

Management Interface: |
Ethernet In/Out of Band |
|
Certifications: |
CE, FCC, IC |
|
Rackmount: |
yes, 1U |
|
ESD/EMP Protection: |
Air: ±24kV, Contact: ±24kV |
|
Operating Temperature: |
-5°C to 40°C |
|
Operating Humidity: |
5 to 95% Noncondensing |
|
Shock and Vibration: |
ETSI300-019-1.4 Standard |
|
PoE Per Port: |
|
PoE Interfaces: |
POE+ IEEE 802.3af/at (Pins 1,2+, 3, 6-)
24VDC Passive PoE (Pins 4,5+,7,8-) |
|
Max. PoE+ Wattage per Port by PSE: |
34.2 W |
|
Voltage Range 802.3at Mode: |
50-57 V |
|
Max. Passive PoE Wattage per Port: |
17 W |
|
24V Passive PoE Voltage Range: |
20-27V |

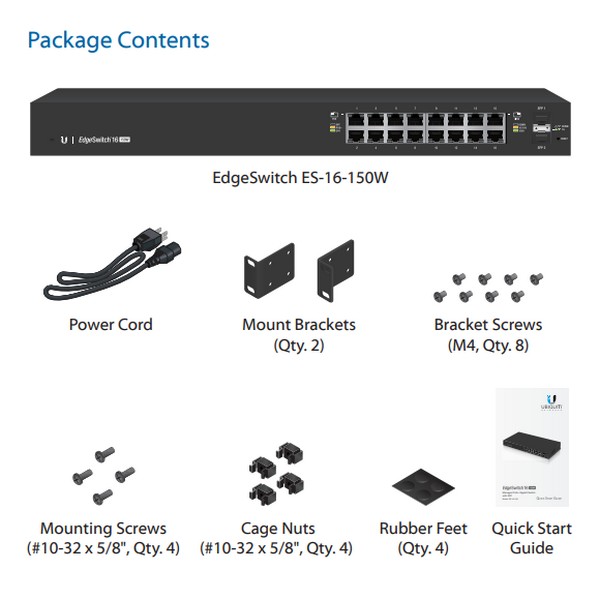

| Package Contents: |
|---|
| 1 x ES-16-150W
|
| 1 x Rack Mounting Kit
|
| 1 x Power Cord
|
| 4 x Rubber Feet |
|
