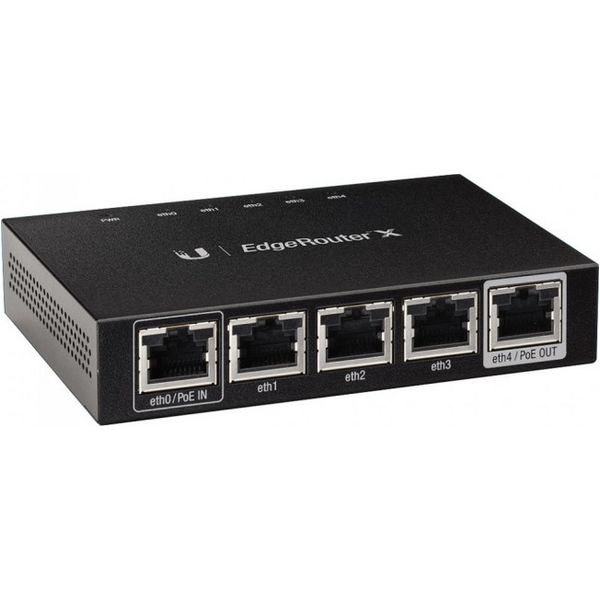

The EdgeRouter X delivers routing performance in an ultra‑compact form factor.
Powered by 24V passive PoE or a power adapter, the EdgeRouter X features a passive PoE passthrough option to power an airMAX device.
The EdgeRouter X offers a breakthrough combination of value and performance in routing technology.

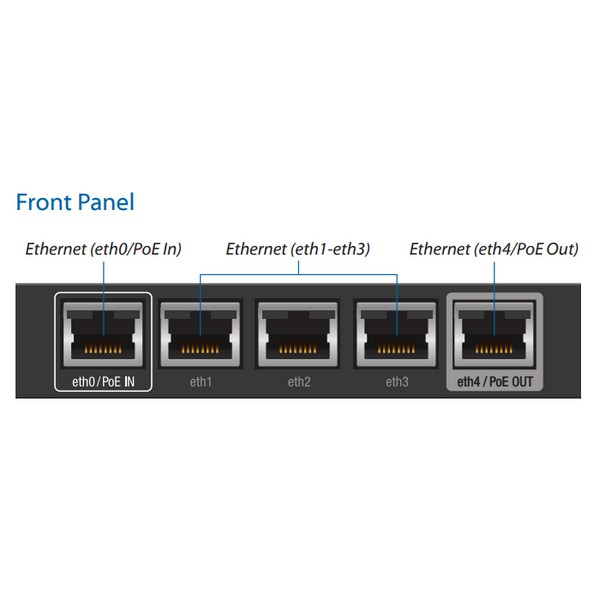

Also provides five independent, Gigabit RJ45 ports that are configurable for switching.
The EdgeRouter X SFP is supported and managed by UNMS, a comprehensive controller with an intuitive UI.
|
Specifications: |
|
Dimensions: |
110 x 75 x 22 mm |
|
Weight: |
175 g |
|
Power input: |
12VDC, 0.5A - Power Adapter (Included) - or 24V Passive PoE |
|

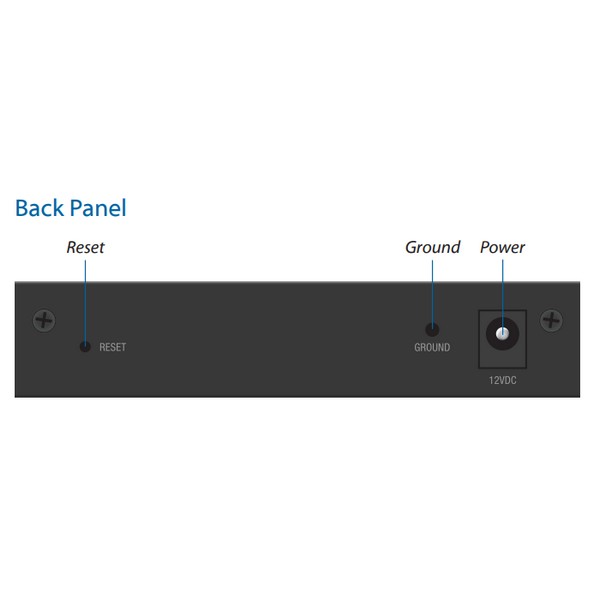

Button: |
Reset |
|
Processor: |
Dual-Core 880 MHz, MIPS1004Kc |
|
System Memory: |
256 MB DDR3 RAM |
|
Code Storage (Flash): |
256 MB |
|
Certifications: |
CE, FCC, IC |
|
Wall-Mount: |
Tak |
|
Operating Temperature: |
-10°C to 45°C |
|
Operating Humidity: |
90% Noncondensing |
|
Interface/Encapsulation: |
Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad) |
|
Addressing: |
Static IPv4/IPv6 Addressing
DHCP/DHCPv6 |
|
Routing: |
Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy |
|
Security: |
ACL-Based Firewall
Zone-Based Firewall
NAT |
|
VPN: |
IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client |
|
Services: |
DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching |
|
QoS: |
FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing |
|
Management: |
Web UI
CLI (Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Logging |
| Package Contents: |
|---|
| 1 x ER-X
|
| 1 x Power Adapter 12V 0,5A |
