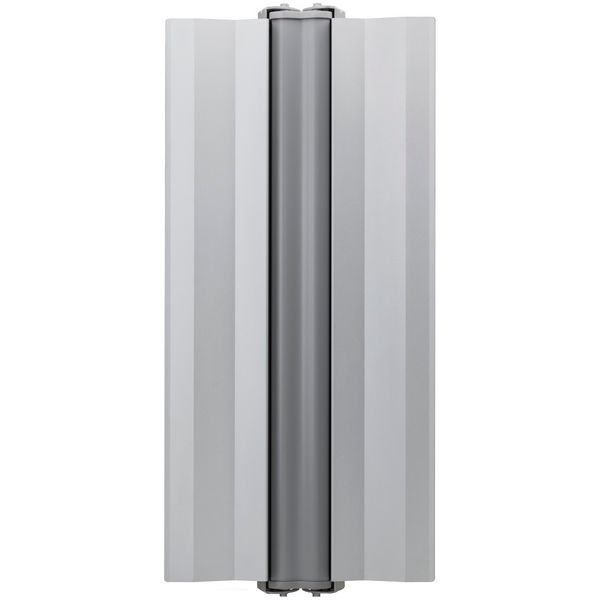

Ubiquiti AM-V2G-Ti, 2.4Ghz Variable Beam Base Station, 60-120deg
[1285][AM-V2G-Ti]

Price: 250,50€

Order or Qty		Price
> 500€	5+	248,00€
> 1000€	10+	245,49€
> 2000€	20+	242,99€
> 5000€	40+	240,48€
> 10000€	100+	237,98€

Prices exclude VAT

Ships in:
3-5 working days
Quantity: 5

Order Qty:

UPC:	810354021008

AM-V2G-Ti

Providing adjustable beamwidth from 60 to 120 degrees combined with great isolation performance, the new titanium sectors provide additional scalability and noise immunity performance in hi-noise environments and co-location deployments.

Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti’s best-in-class sector antennas.

Advanced RF isolation andvariable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology.

Drawing on Ubiquiti’s depth of electrical and mechnical engineering expertise, Ubiquiti has developed theairMAX Titanium Sector to be highly resistant to noise interference in co‑location deployments.

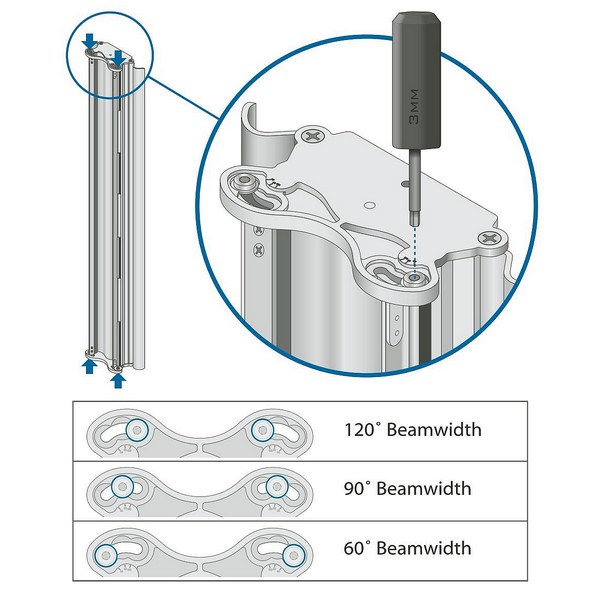

Having adjustable beamwidth options enhances scalability and streamlines inventory.

Product Links:
Datasheet	Quick Start Guide

Specifications:
Dimensions:	773 x 372 x 120 mm
Weight:	6.40 kg (with Brackets)
Frequency Range:	2.3 - 2.6 GHz

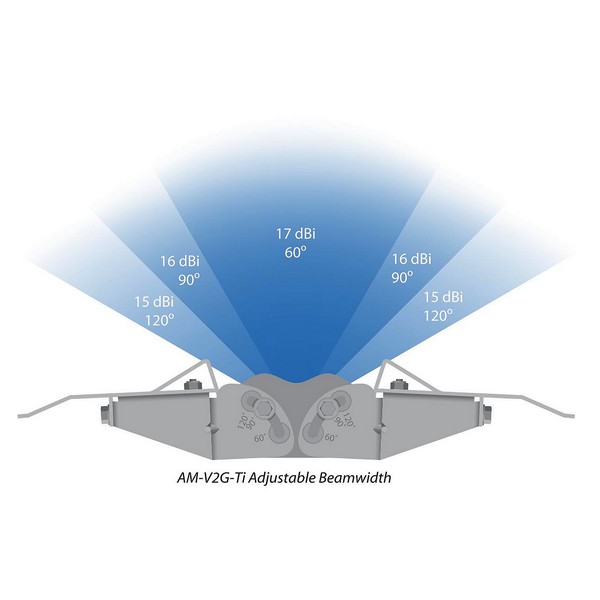

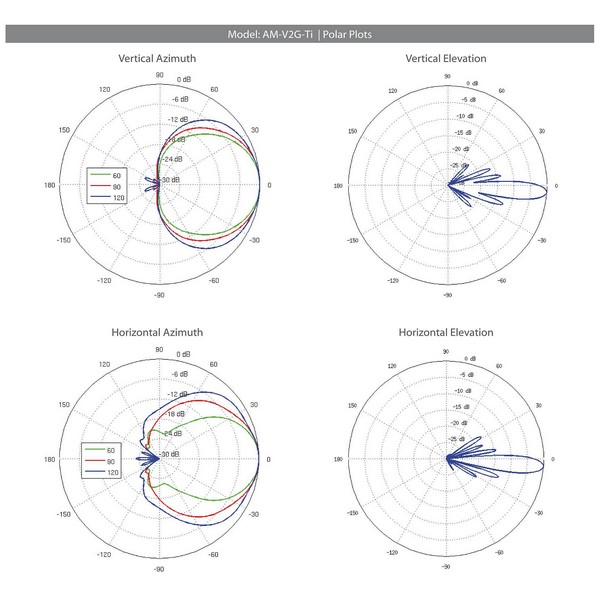

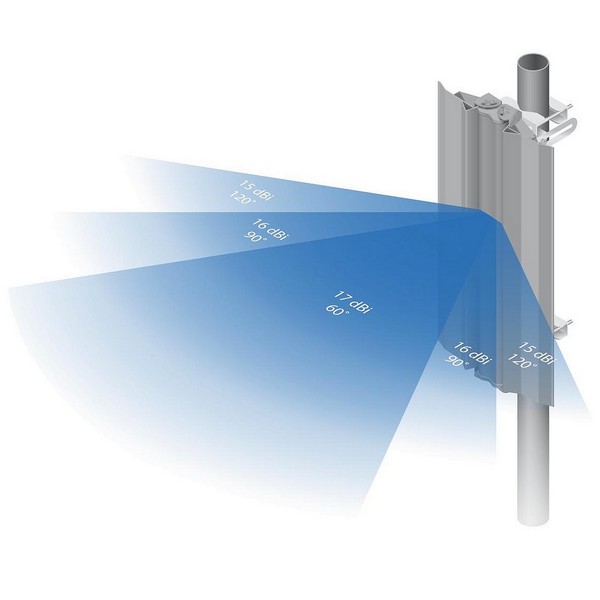

Beamwidth Angles:	60°/ 90°/ 120° Gain (Beamwidth Dependent) 17 dBi @ 60° 16 dBi @ 90° 15 dBi @ 120°
Elevation Beamwidth:	4°
Electrical Downtilt:	4°
Wind Survivability:	125 mph
Wind Loading:	92 lbs @ 100 mph
Polarization:	Dual Linear
Cross-Pol Isolation:	25 dB Typical
Front-to-Back Ratio:	30 dB Typical
Max. VSWR:	1.5:1

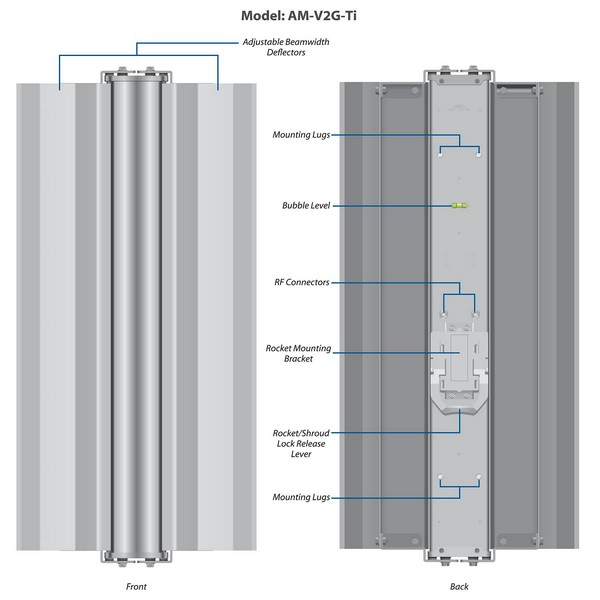

RF Connectors:	2 RP-SMA Connectors (Weatherproof )

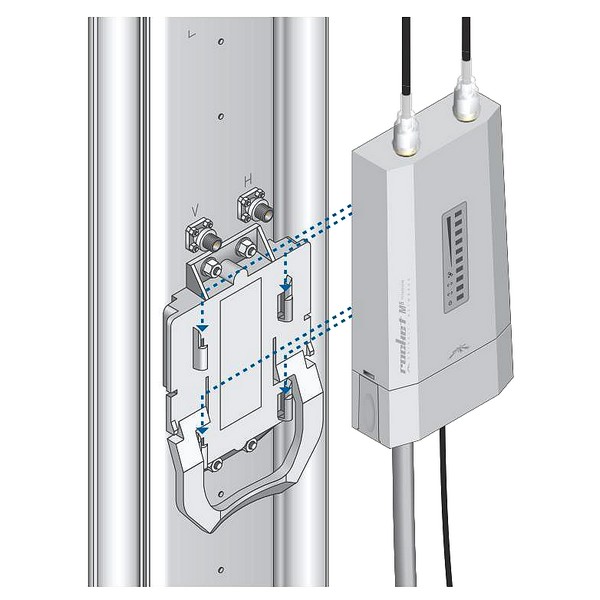

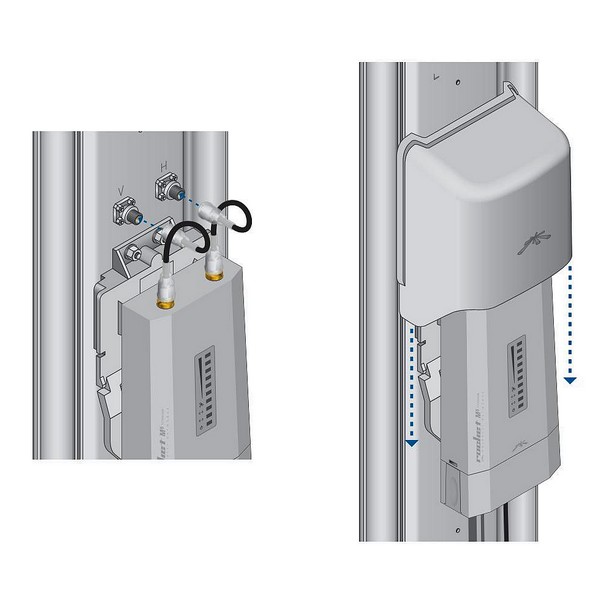

Compatible Radios:	RocketM2 Titanium /RocketM2
Mounting Pole Mount:	Yes
ETSI Specification:	EN 302 326 DN2
Certifications:	CE, FCC, IC
