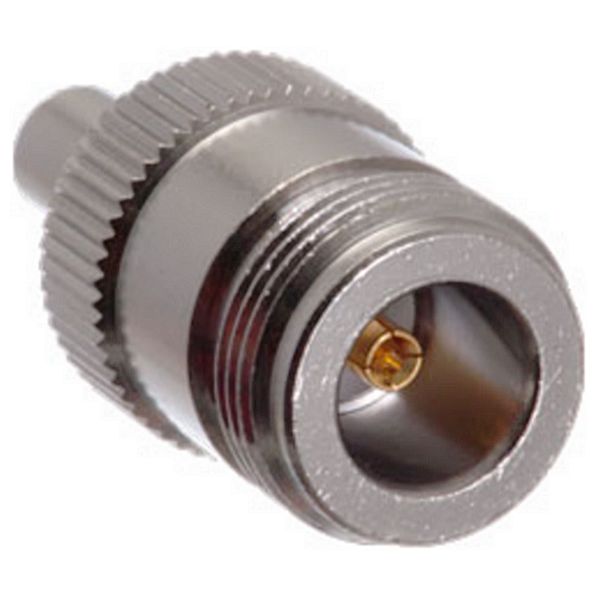

EZ-NF240, N-Type Female Crimp connector for 240, RG-8X series cable
[1164][EZ-NF240]

Price: 1,98€

Prices exclude VAT

In Stock: 612

Order Qty:

UPC:	728615668162

EZ-NF240 - N-type Female Crimp connector for 240 series cable.

N Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.

Their consistently low broadband VSWR have made them popular over the years in many applications.

The N series connector is impedance matched to 50 ohm cables.

Product Links:
Product Page	Datasheet

Specifications :
Impedance	50 ohm
Frequency Range	0 to 11.0 GHz
VSWR	1.3 max
Working Voltage	1,000 volts rms max at sea level
Dielectric Withstanding Voltage	2,500 volts rms max at sea level
ContactResistance	center contact=1.0 Milliohms max outer contact=1.0 Milliohms max
Insertion Loss	0.3 dB max at 10 GHz
Insulation Resistance	5,000 Megohms min

Connector
N-type

Male thread Female center pin

Package Contents:
1 x

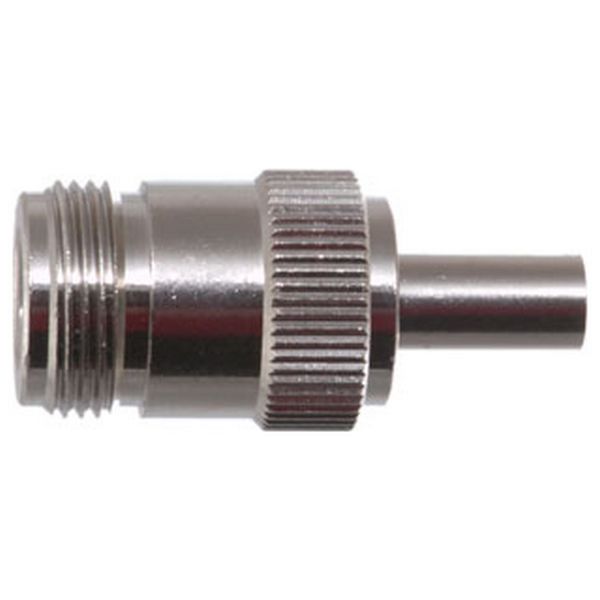

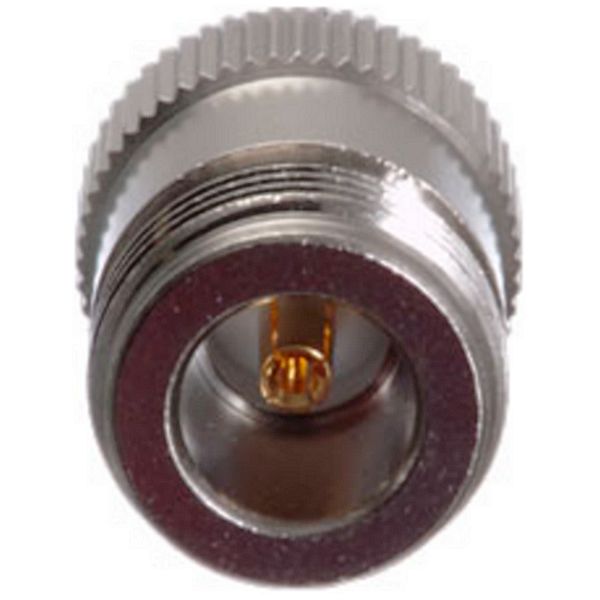

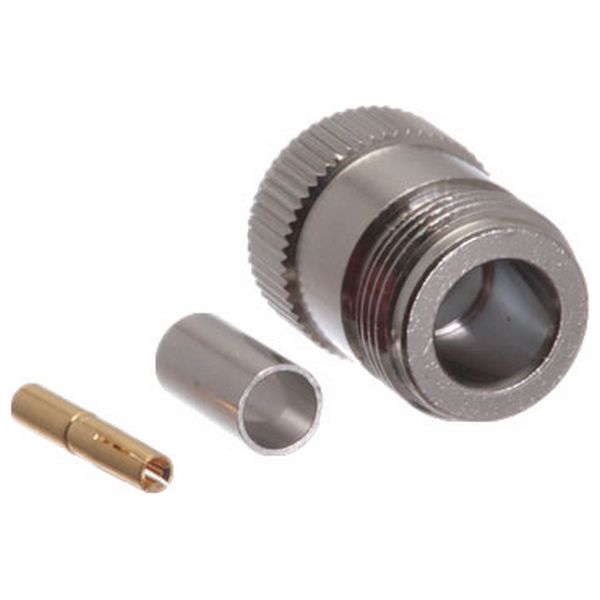

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
