ESP32 WEMOS S2 mini V1.0
No Stock
Order Qty:
UPC:728615665987

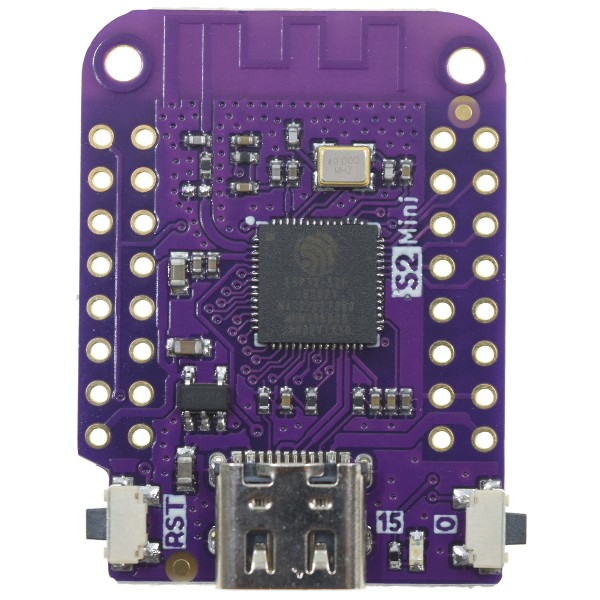

ESP32 S2 mini - A mini wifi board based on ESP32-S2FN4R2

Features

  • ESP32-S2FN4R2 WIFI IC
  • Type-C USB
  • 4MB Flash
  • 2MB PSRAM
  • 27x IO ADC, DAC, I2C, SPI, UART, USB OTG
  • Compatible with LOLIN D1 mini shields
  • Compatible with MicroPython, Arduino, CircuitPython and ESP-IDF
  • Default firmware: MicroPython

Product Links:
Product Page Product Page   Schematic Schematic   Datasheet Datasheet

Specifications:
Operating Voltage 3.3V
Digital I/O Pins 27
Clock Speed 240MHz
Flash 4M Bytes
PSRAM 2M Bytes

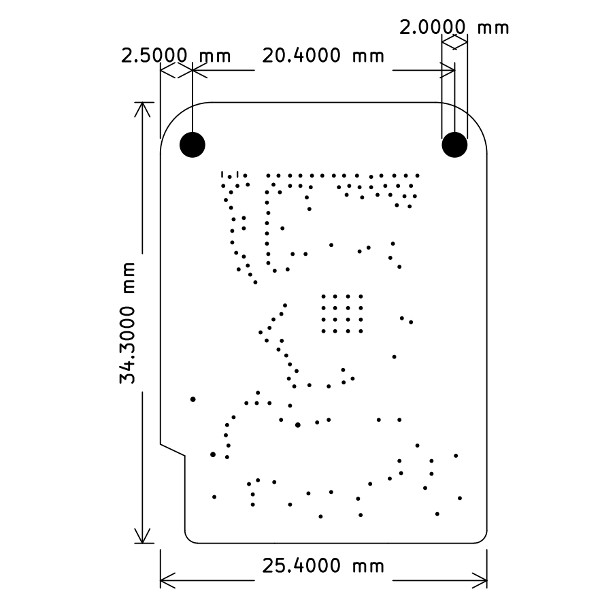

Size 34.3*25.4mm
Weight 2.4g

Package Contents:
1 x Wemos D1 Mini PCB
4 x 8P male Header
