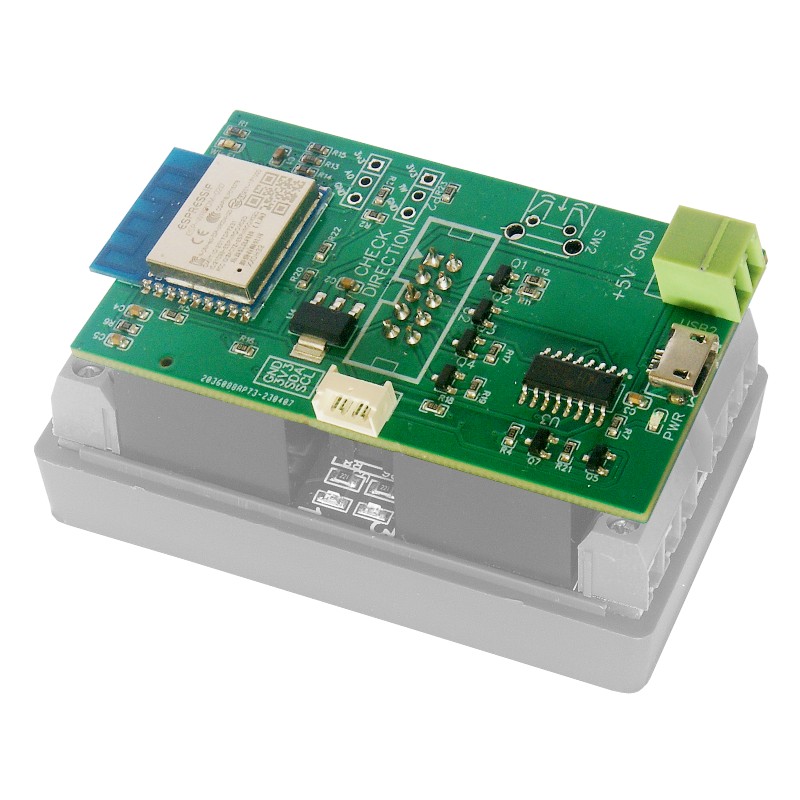

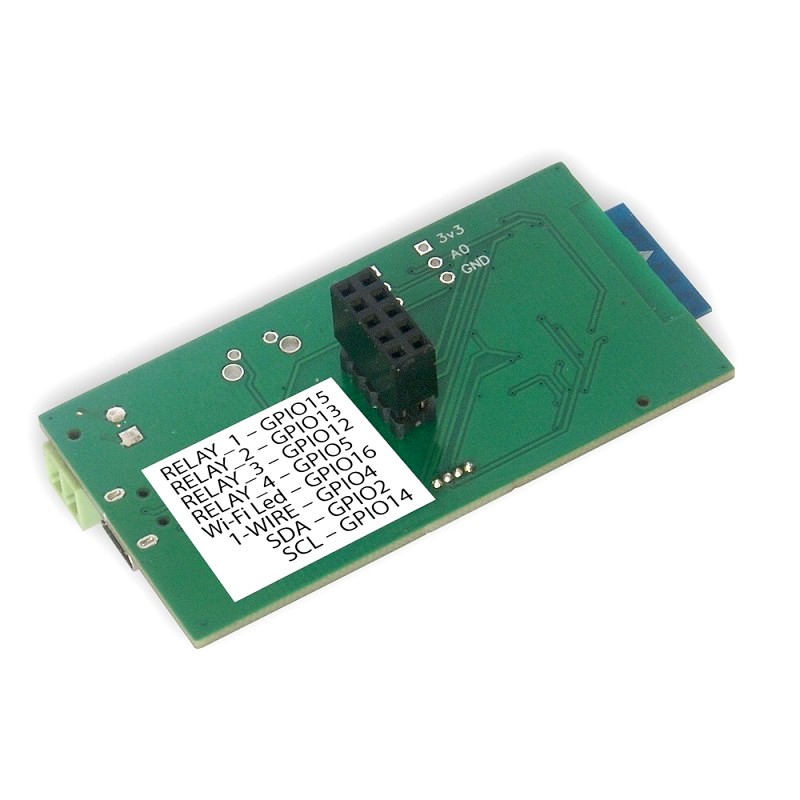

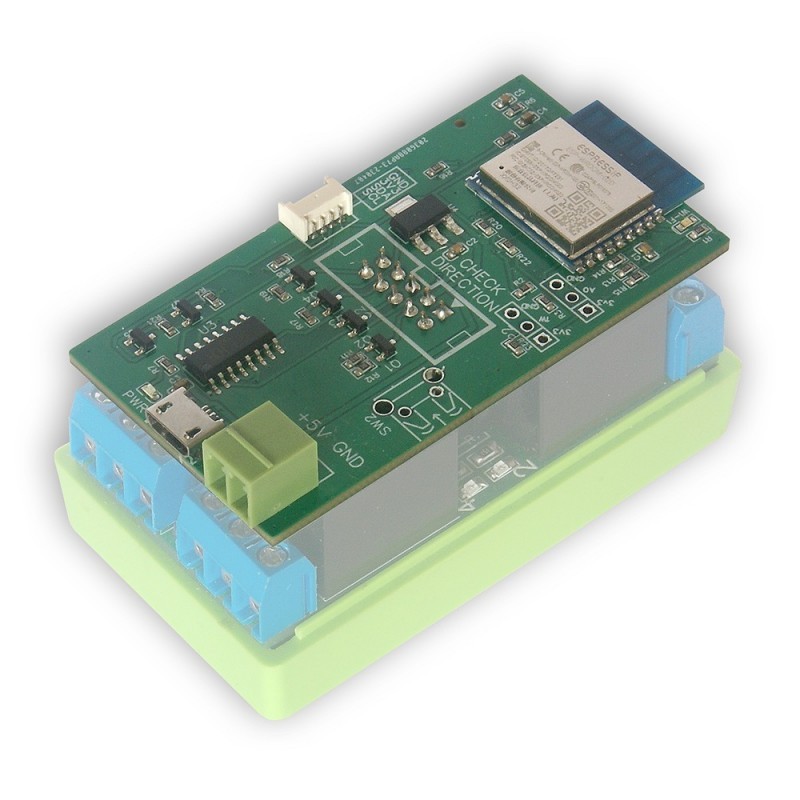

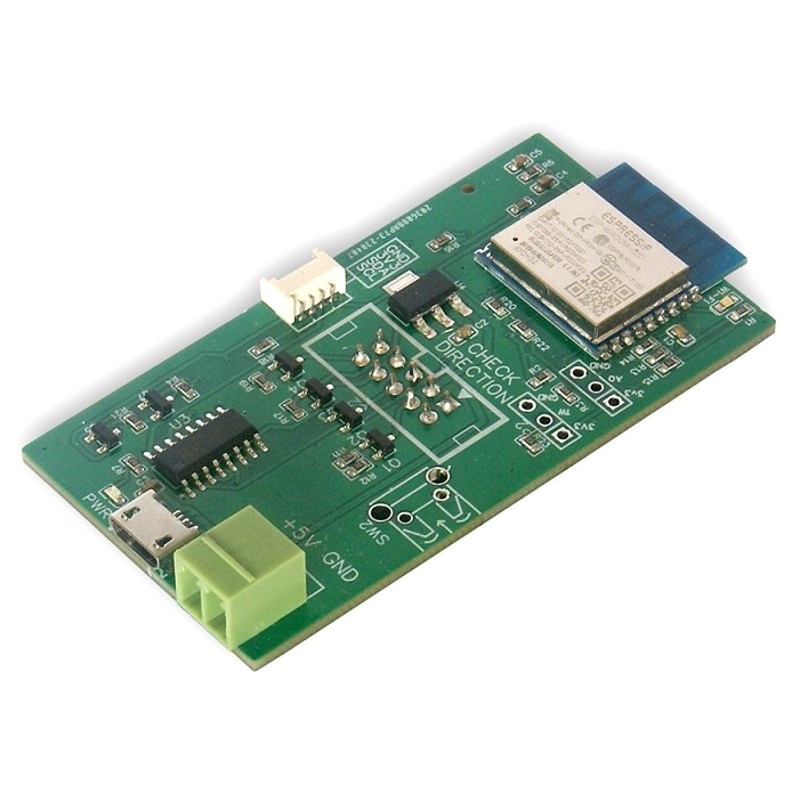

Tiny Smart Relay is a controller/overlay for the relay board LANKON-094
Easy control and monitoring of relays and optionally sensors as well.
Tiny Smart Relay with Tasmota software allows you to easily control the 4 on-board relays and read 1-Wire and I2C sensors.
You can also integrate Tiny Smart Relay as a Tasmota device with the mqtt.ats.pl free service .
It allows you to remotely control the device using the ATS MQTT Client mobile application, as well as track the status of the device.
After configuring the Tiny Smart Relay board with LAN Controller (v4.0, v3.5+, v3.0), we have control over the relays of Tiny Smart Relay as if they are connected directly to the LAN Controller.
You can integrate up to 4 Tiny Smart Relays with one LAN Controller. .
|
Specifications : |
|
Part # |
LANKON-084 |
|
Supply voltage |
5V |
|
Power socket |
micro USB or dedicated plug |
|
Number of relays |
4 |
|
Interfaces |
I2C - AM2301B sensor
1-Wire - DS18B20 sensor |
| Package Contents: |
|---|
| 1 x LANKON-084, Tiny Smart Relay |
|
