Current Sensor -15.5A TO + 15.5A
[1639][LANKON-040]

Price: 3,38€

Order or Qty		Price
> 500€	5+	3,31€
> 1000€	10+	3,24€
> 2000€	20+	3,18€
> 5000€	40+	3,11€
> 10000€	100+	3,04€

Prices exclude VAT

In Stock: 2

Order Qty:

Current sensor -15.5A to +15.5A

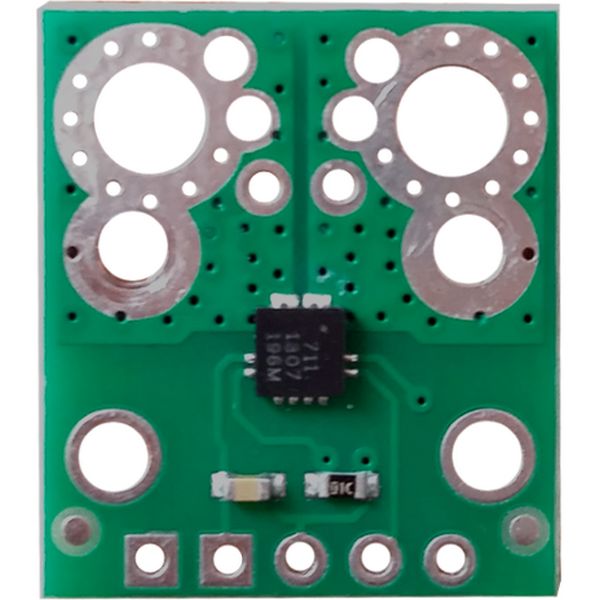

Board with Hall efect sensor.

Current flowing between terminals is isolated from measurement part, but inductes Hall effect which is measured as output voltage proportional to current.

Only 0.6mΩ as a resistance of a chip and double ticness cupper layer cause that losses are very small.

This product is intended for use below 48 V.

Working with higher voltages can be extremely dangerous and should only be attempted by qualified individuals with appropriate equipment and protective gear.

Product Links:
Product Page

Technical Specifications:
measurement range:	± 15,5 , ± 31A and ± 75A
supply voltage:	3-5,5V
sensitivity:	90 mV/A when Vcc jest 3,3V or 136 mV/A if Vcc It is 5 V
	45 mV/A when 3,3 V or 68 mV/A when Vcc 5 V
	18.5 mV/A when Vcc is 3.3 V (or 28 mV/A when Vcc is 5 V
path internal resistance:	0.6mΩ
maximum voltage in ciurcuit:	100V
operating temperature range:	-40°C to 125°C
board size:	20mmx18mm

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
