RF Elements STH-30-USMA, Symmetrical antenna StarterHorn, 30°, USMA, 5GHz, 18dBi
[2753][STH-30-USMA]

Price: 87,49€

Order or Qty		Price
> 500€	5+	86,61€
> 1000€	10+	85,74€
> 2000€	20+	84,86€
> 5000€	40+	83,99€
> 10000€	100+	83,11€

Prices exclude VAT

In Stock: 2

Available quantity within
3-5 working days: 99

Order Qty:

UPC:	708747439953

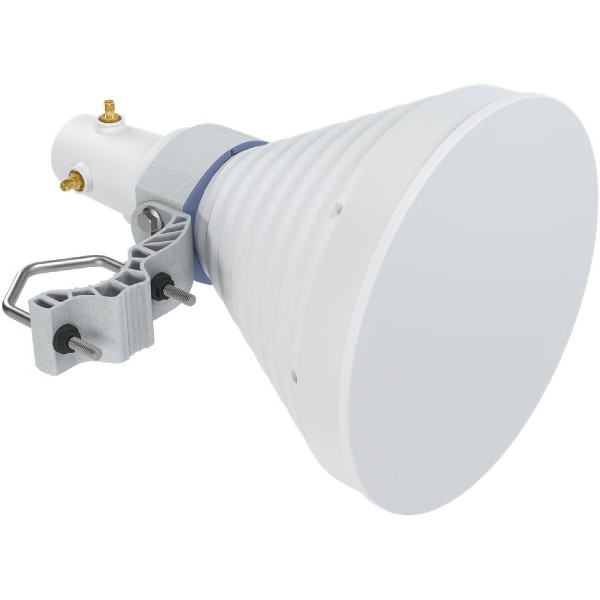

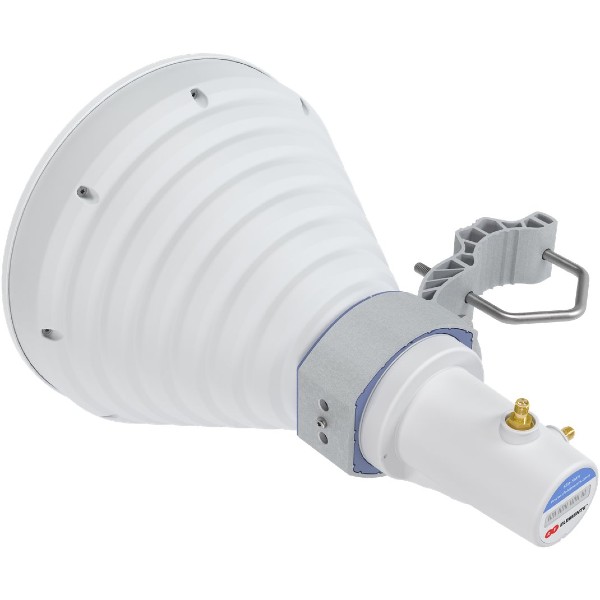

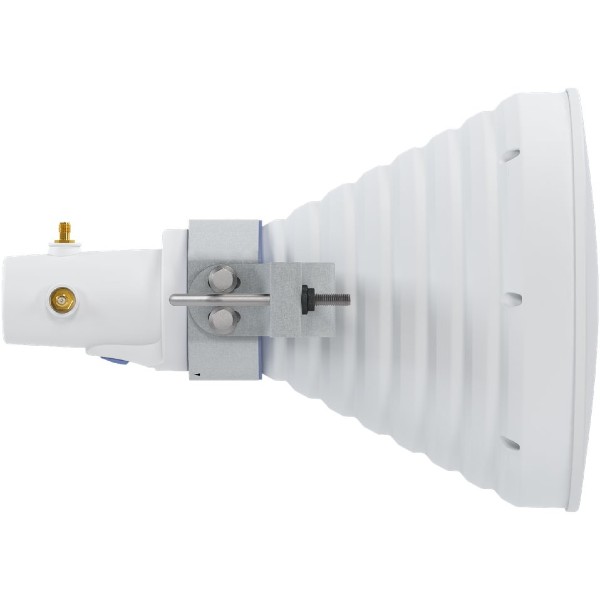

StarterHorn antenna from RF Elements is a symmetrical antenna with a gain of 18 dBi, a radiating angle of 30° and can be installed on a bracket or mast with a diameter of 20 to 55 mm.

This antenna offers the perfect combination of features and functions that address the major weaknesses of today's mainstream sector antennas.

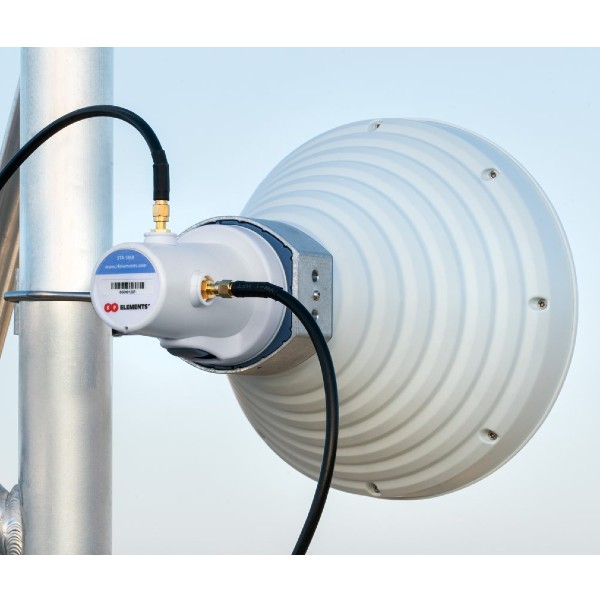

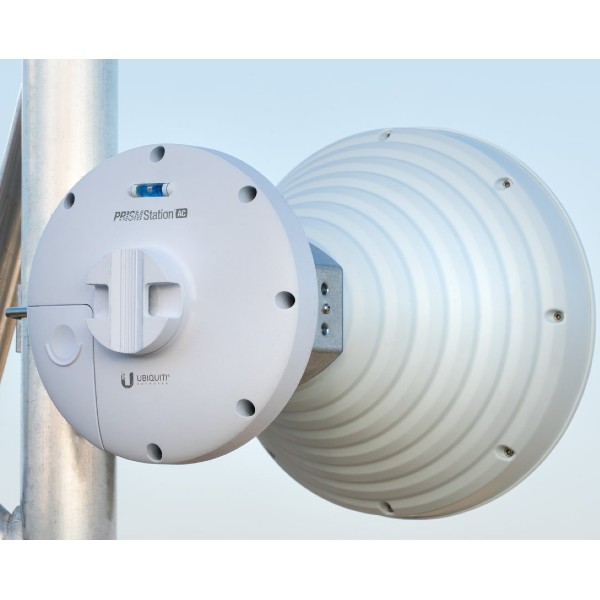

Antenna comes with a converter to 2x RSMA female (for connecting radios with connectors), which can be easily disconnected and instead connected directly to the IsoStation or PrismStation units from Ubiquiti Networks.

Product Links:
Product Page	Datasheet	Installation

Specifications:
Antenna Connection	RP-SMA Port, Waveguide Port
Antenna Type	Symmetrical Horn
Materials	UV Resistant ABS Plastic, Polyethylene, Aluminium, Stainless Steel
Enviromental	IP55
Flame Rating	UL 94 HB
Pole Mounting Diameter	20-55 mm
Temperature	-30°C to +55°C
Wind Survival	160 km/hour
Wind Loading	23 N at 160km/hour
Mechanical Tilt	± 30°
Weight	1.3 kg
Single Unit	269 × 240 × 240 mm @ 1.9 kg
10 Pack	1210 × 490 × 277 mm @ 20.9 kg
Wireless
Frequency Range	5150 - 5950 MHz
Gain	18 dBi
Azimuth Beam Width -3 dB	H 20° / V 20°
Elevation Beam Width -3 dB	H 20° / V 20°
Azimuth Beam Width -6 dB	H 30° / V 30°
Elevation Beam Width -6 dB	H 30° / V 30°
Beam Efficiency*	92 %
Front-to-Back Ratio	33 dB

Package Contents:
1 x STH-30-USMA
1 x Mounting bracket
1 x STA-SMA converter to 2x RSMA

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	0 day(s)	6 month(s)
