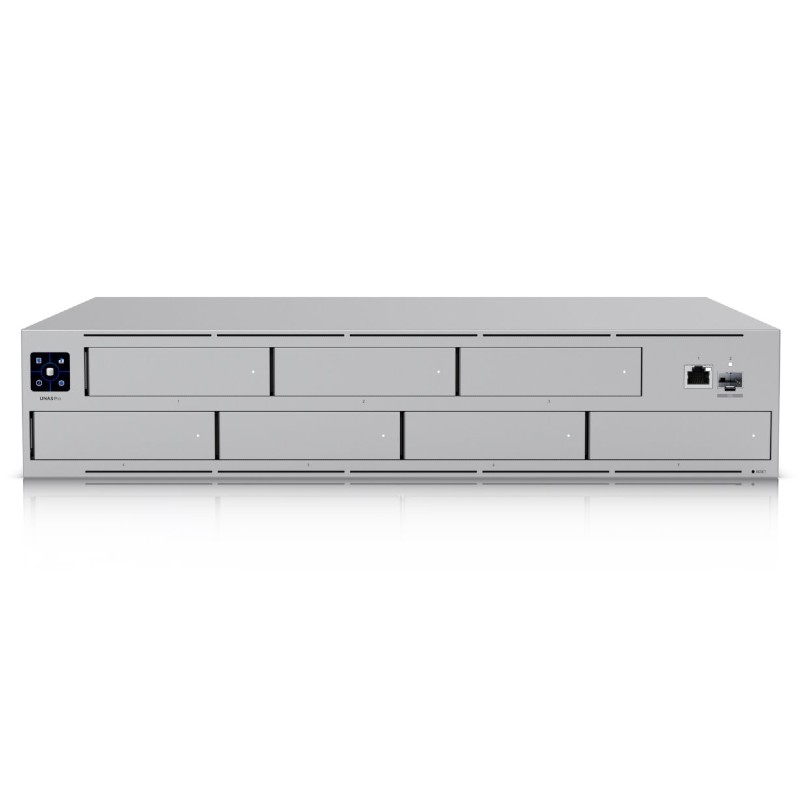

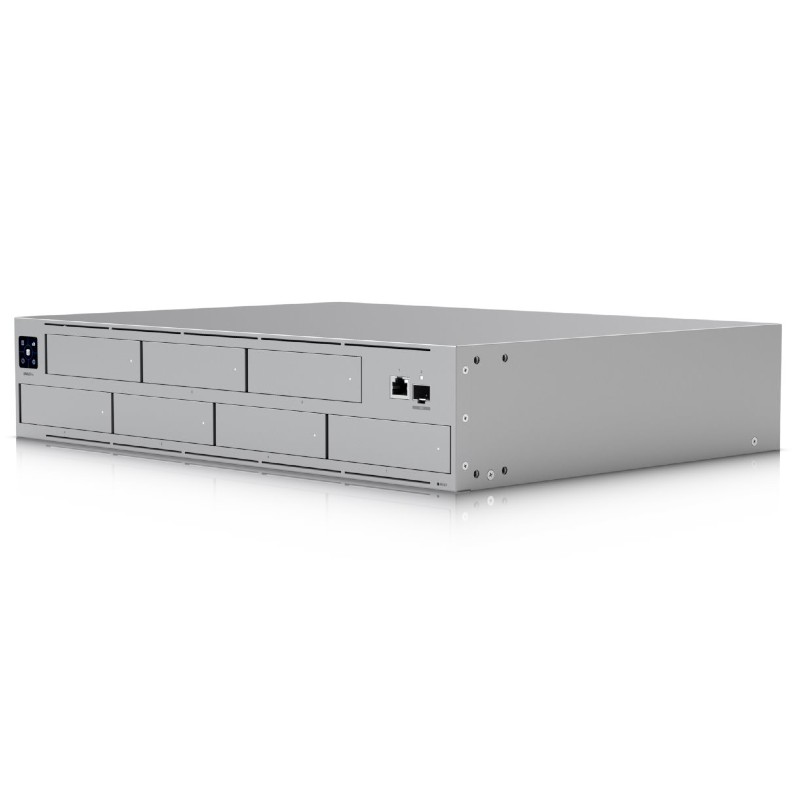

UNAS-Pro - 2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.
UniFi UNAS Pro from Ubiquiti Networks is simple network data storage solution that fits seamlessly into any UniFi ecosystem.
Thanks to multi-gigabit transmission via an optical SFP+ port, it is an ideal choice for medium and larger enterprises.
The UniFi software offers wide backup options and clear management with a simple user interface.
It allows backup of files from iOS, Android, macOS and Windows devices and supports backups to other UNAS drives, SMB or cloud services such as Google Drive and OneDrive.
|

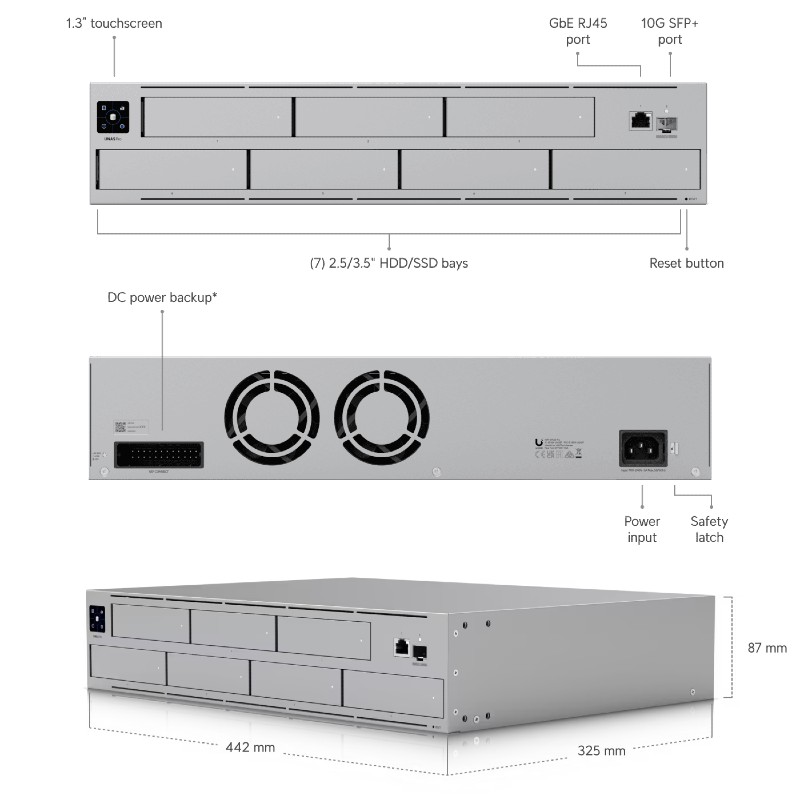

Mechanical |
|
Dimensions |
442 x 325 x 87 mm |
|
Weight |
Without mounting brackets: 9.2 kg
With mounting brackets: 9.5 kg |
|
Enclosure material |
SGCC steel |
|
Mount material |
SGCC steel |
|
Hardware |
|
Processor |
Quad-Core ARM® Cortex®-A57 at 1.7 GHz |
|
System memory |
8 GB |
|
Management interface |
Ethernet In-Band |
|
Networking interface |
(1) GbE RJ45 port
(1) 1/10 GbE SFP+ port |
|
RF interface |
Bluetooth 4.1 |
|
Power method |
(1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.91A |
|
Power supply |
AC/DC, internal, 200W |
|
Supported voltage range |
100—240V AC |
|
Max. power consumption |
160W |
|
Max. power budget for Drives |
135W |
|
ESD/EMP protection |
Air: ± 12kV, contact: ± 8kV |
|
LCM Display |
(1) 1.3" touchscreen |
|
Ambient operating temperature |
-5°C to 40°C |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
FCC, CE, IC |
|
LEDs |
|
Ethernet |
Green: 1 Gbps
Amber: 10/100 Mbps |
|
SFP+ |
White: 10 Gbps
Green: 1 Gbps |
|
HDD |
White: disk detected
Amber: disk error |
|
RPS |
Blue: ready |
|
Application Requirements |
|
UniFi Drive |
Version 1.16.0 and later |

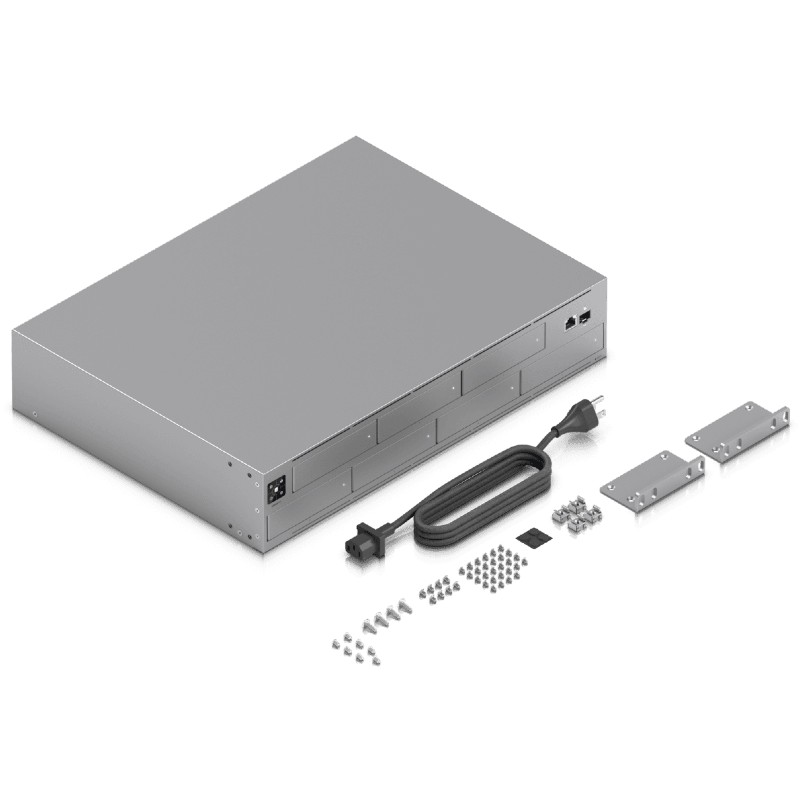

| Package Contents: |
|---|
| 1 x UNAS-PRO
|
| 1 x AC Cable
|
| 2 x L-Brackets
|
| 1 x Mounting kit |
|
