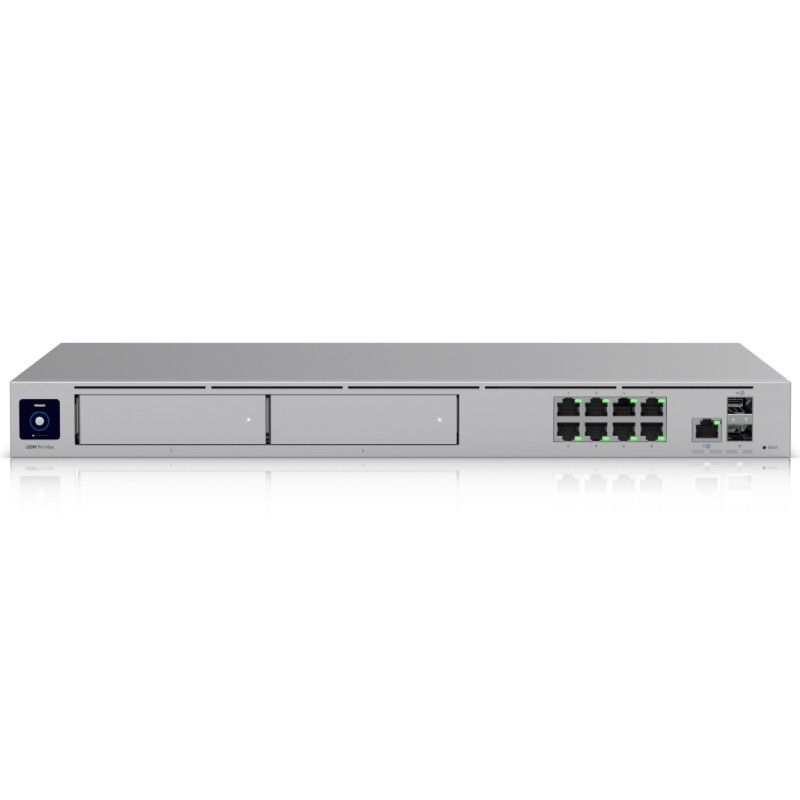

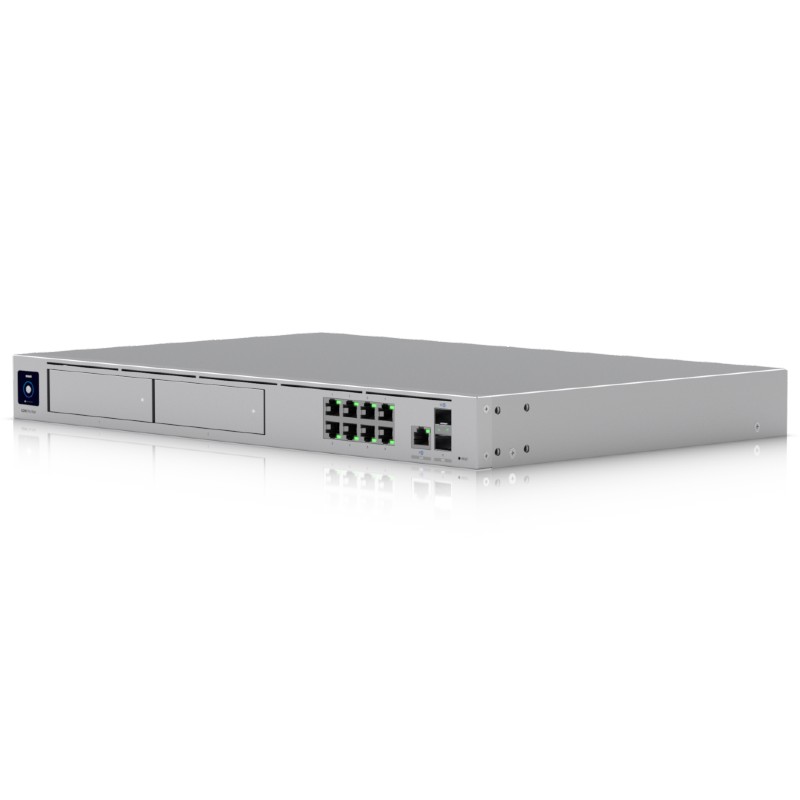

UDM-Pro-Max - Dream Machine Pro Max
10G Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.
 Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
 Includes full UniFi application suite for device management
 5 Gbps routing with IDS/IPS
 (1) 10G SFP+*, (8) GbE RJ45 LAN ports
 (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
 (2) 3.5" NVR HDD bays with RAID data protection
 Built-in 128 GB SSD for NVR detection recordings
 1.3" touchscreen
|

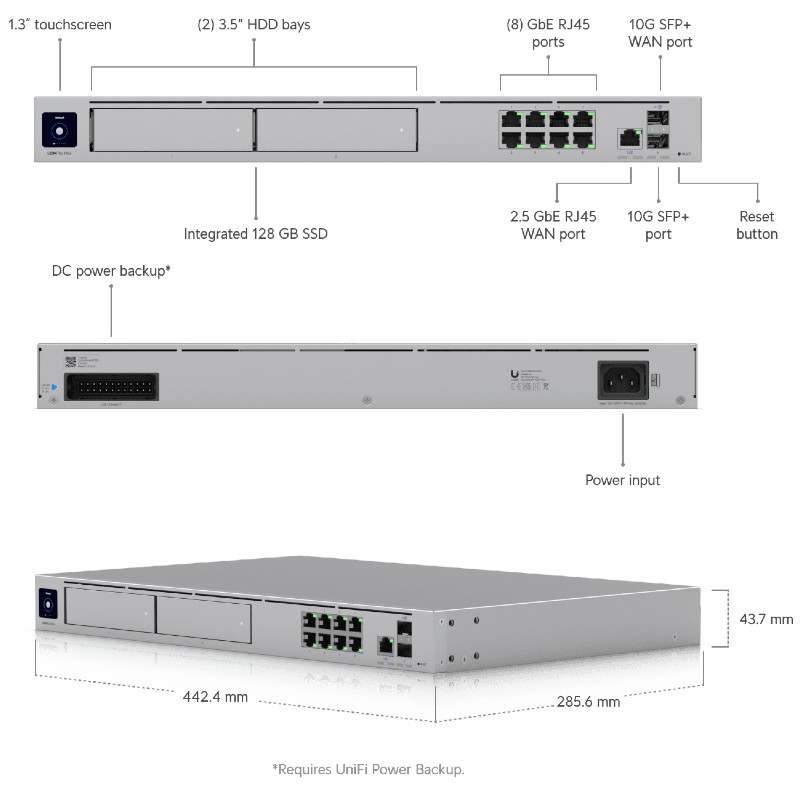

Mechanical |
|
Dimensions |
442.4 x 43.7 x 285.6 mm |
|
Weight |
4.7 kg |
|
Enclosure material |
Aluminium CNC, SGCC steel |
|
Mount material |
SGCC steel |
|
Hardware |
|
Processor |
Quad-core ARM® Cortex®-A57 at 2.0 GHz |
|
System memory |
8 GB DDR4 |
|
On-board storage |
32 GB eMMC
Integrated 128 GB SSD |
|
Management interface |
Ethernet
Bluetooth |
|
LAN interface |
(8) GbE RJ45 ports
(1) 10G SFP+ port |
|
WAN interface |
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port |
|
IDS/IPS throughput |
5 Gbps*
*Measured with iPerf3 on a DHCP network. |
|

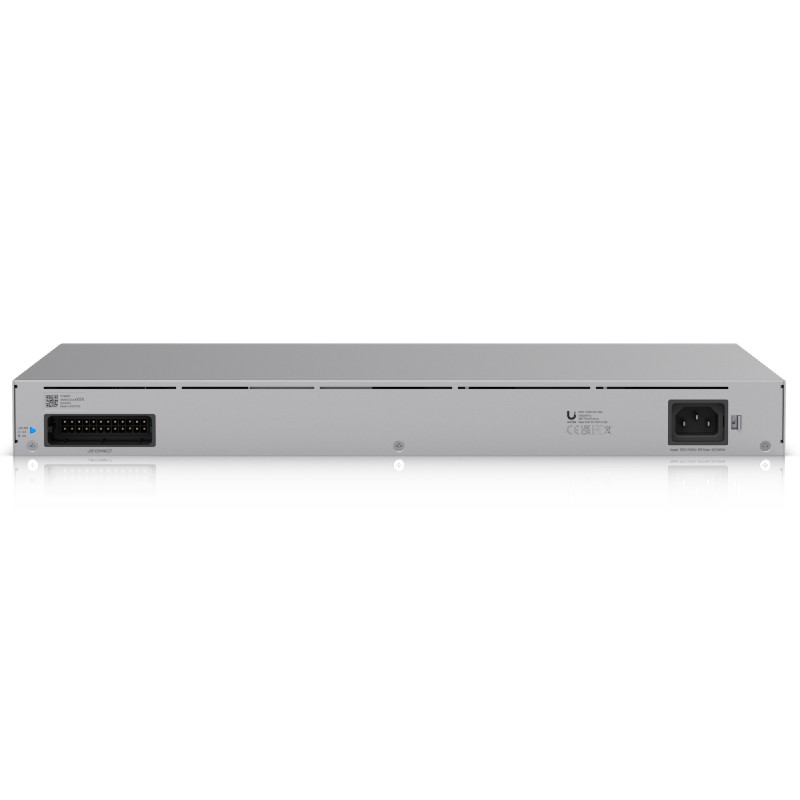

Power method |
(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A |
|
Power supply |
AC/DC, internal, 100W |
|
Supported voltage range |
100—240V AC |
|
Max. power consumption |
100W |
|
ESD/EMP protection |
Air: ± 15kV, contact: ± 8kV |
|
LCM display |
(1) 1.3" touchscreen |
|
Button |
Factory reset |
|
Ambient operating temperature |
-10°C to 40°C |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Gateway Features |
|
Performance |
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting |
|
Next-generation security |
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall |
|
Advanced networking |
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support |
|
LEDs |
|
Ethernet |
Green: link/activity |
|
SFP+ |
Green: link/activity |
|
HDD |
White: disk activity
Amber: disk error |
|
RPS |
Blue: ready |

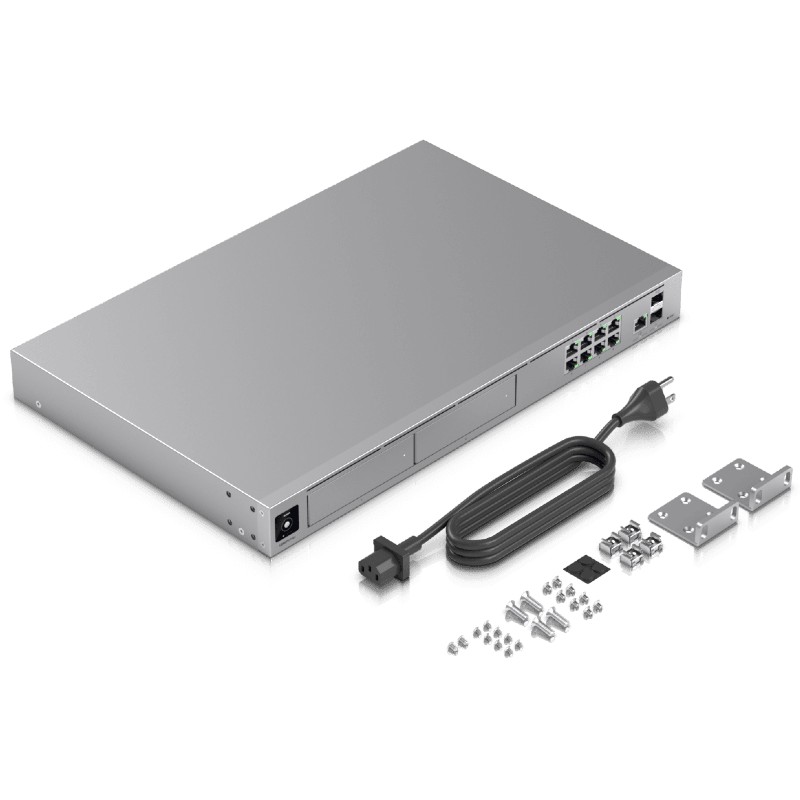

| Package Contents: |
|---|
| 1 x UDM-Pro-Max
|
| 1 x Rackount KIT
|
| 1 x AC Cable EU Type |
|
