Ubiquiti Networks » USW-Pro-Max-16

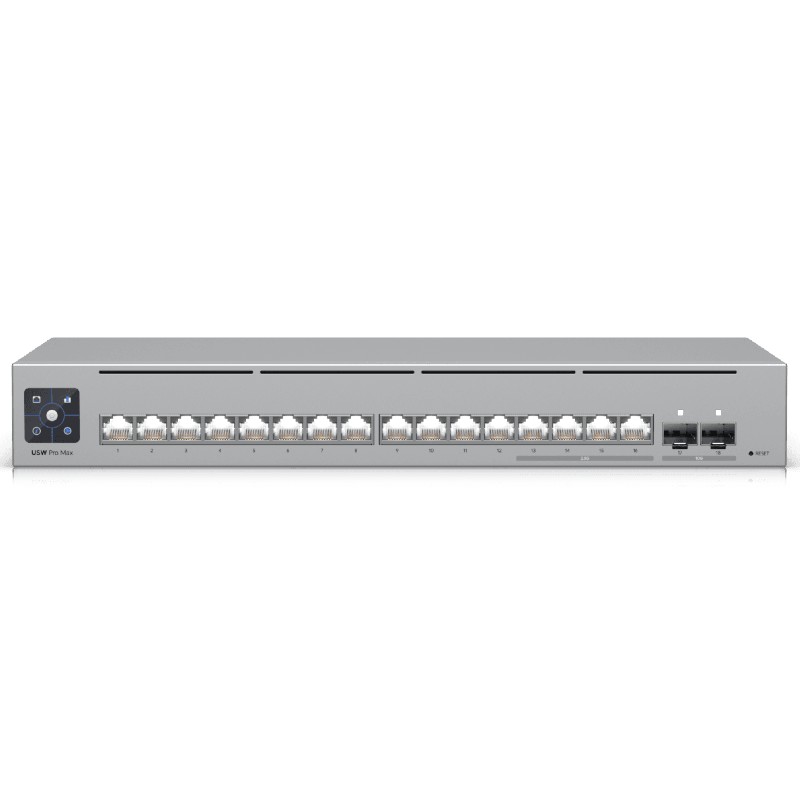

Ubiquiti USW-Pro-Max-16, UniFi Switch
[3178][USW-Pro-Max-16]
Price: 265,11€
 Order or Qty  Price
 > 500€  5+   262,46€
 > 1000€  10+   259,81€
 > 2000€  20+   257,16€
 > 5000€  40+   254,51€
 > 10000€  100+   251,85€
Prices exclude VAT

Ubiquiti USW-Pro-Max-16, UniFi Switch
Ships in:
3-5 working days
Quantity: 105
UI Care UI Care 45,00€
Order Qty:
USW-Pro-Max-16 - A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (4) 2.5 GbE RJ45 ports
  • (12) GbE RJ45 ports
  • (2) 10G SFP+ ports
  • Versatile desktop, wall, and rack** mounting
  • Silent, fanless cooling system
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.

Product Links:
Datasheet Datasheet   Installation Guide Installation Guide   UI Care UI Care

Mechanical
Dimensions 325.1 x 160 x 43.7mm
Weight 1.95 kg
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
Total non-blocking throughput 42 Gbps
Switching capacity 84 Gbps
Forwarding rate 62.496 Mpps
Power method Type-C adapter
Power supply 5V, 25W
Max. power consumption 25W
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5°C to 40°C
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
Application Requirements
UniFi Network Version 8.1.127 and later

Package Contents:
1 x USW-Pro-Max-24-PoE
1 x Power Supply
1 x Power cord
1 x Rackmount ears (ΚΙΤ)

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
