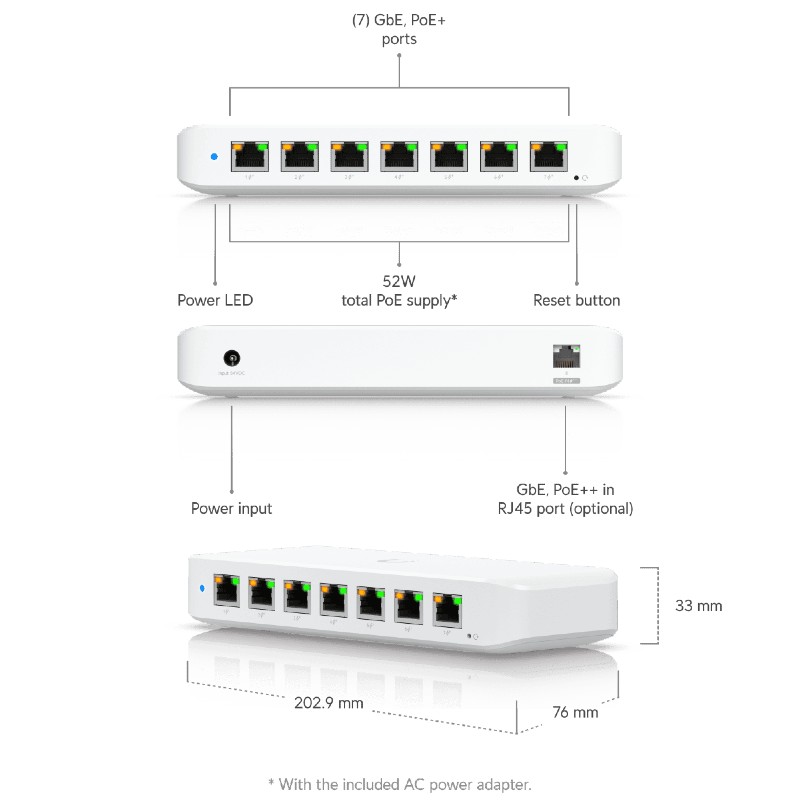

USW-Ultra-60W - A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
-
(7) GbE PoE+ output ports
-
(1) GbE PoE++ input port*
-
52W PoE availability with the included AC power adapter
*PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
|
Mechanical |
|
Dimensions |
203 x 76 x 33 mm |
|
Weight |
Device: 320 g
Wall mount: 45 g
60W adapter: 330 g |
|
Enclosure material |
Polycarbonate |
|
Hardware |
|
Management interface |
Ethernet In-Band |
|
Networking interface |
(8) GbE RJ45 ports |
|
PoE interface |
(7) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
|
Total non-blocking throughput |
8 Gbps |
|
Switching capacity |
16 Gbps |
|
Power method |
(1) 54V, 1.1A power adapter (included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) |
|
Supported voltage range |
44—57V DC |
|
Max. power consumption |
9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output) |
|
Total available PoE |
PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W*
*At 45°C operating temperature.
*Reduced to 161W (230V) or 121W (115V) at 60°C |
|
Max. PoE+ wattage per port by PSE |
30W |
|
Button |
Factory reset |
|
Ambient operating temperature |
PoE++ input: -30 to 60°C
60W AC adapter input: -20°C to +45°C
210W AC adapter input: -20°C to +60°C |
|
Ambient operating humidity |
10 to 90% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Switching Features |
|
Layer 2 features |
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit |
|
Layer 3 features |
– |
|
LEDs |
|
System |
Status |
|
Ethernet |
PoE
Link/activity |
|
Application Requirements |
|
UniFi Network |
Version 8.0.28 and later |

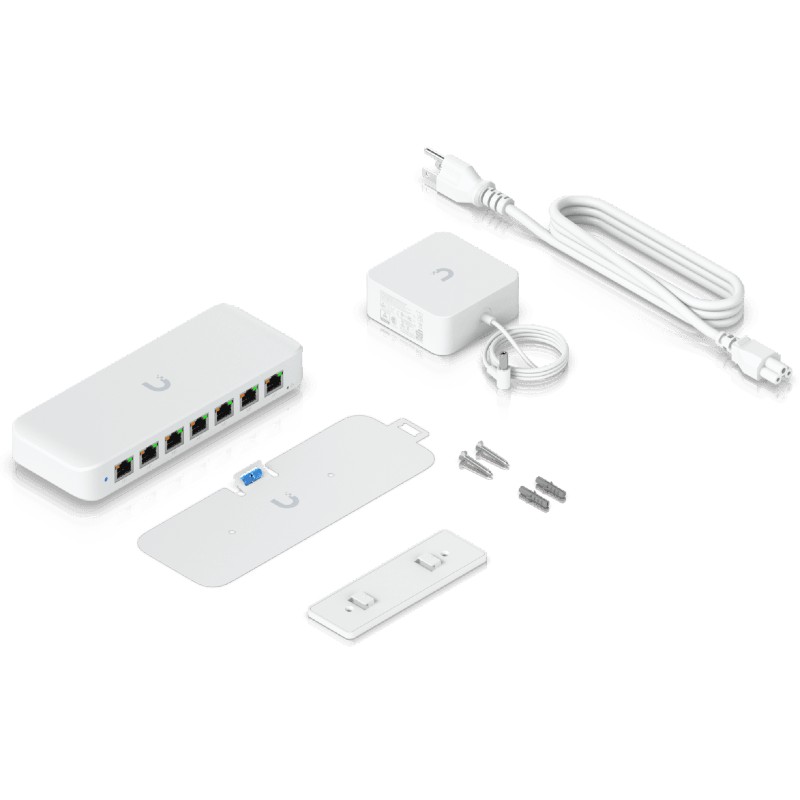

| Package Contents: |
|---|
| 1 x USW-Ultra
|
| 1 x Mount ΚΙΤ
|
| 1 x Power Supply 54V/1.1A |
|
