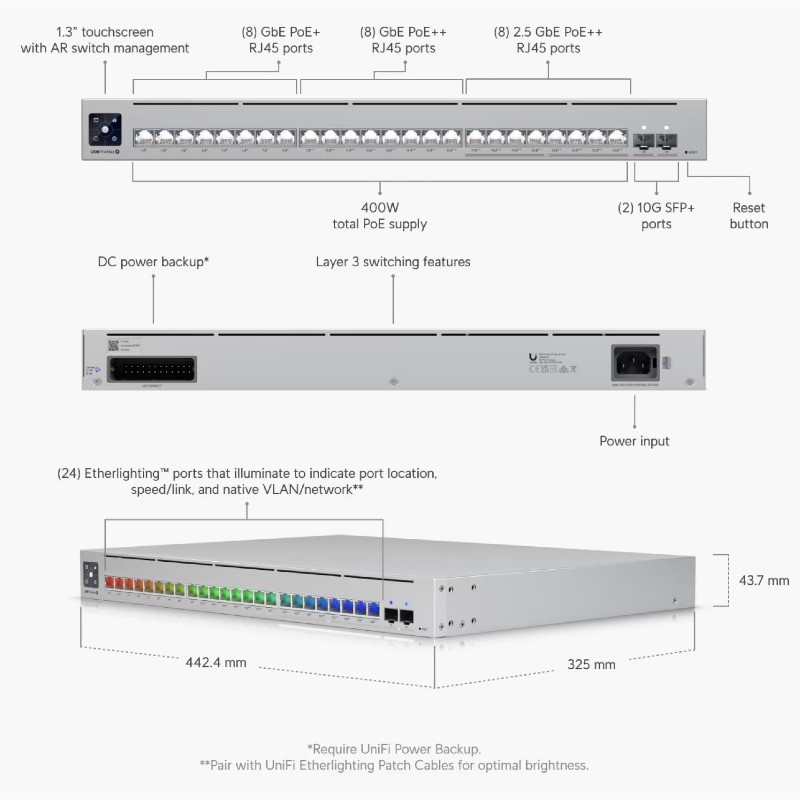

USW-Pro-Max-24-PoE (400W) - A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
-
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
-
(8) 2.5 GbE PoE++ ports
-
(16) GbE ports including (8) PoE+ and (8) PoE++
-
(2) 10G SFP+ ports
-
DC power backup ready
-
400W total PoE availability
-
Managed with UniFi Network 8.0.24 and later
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
|
Specifications |
|
Dimensions |
442 x 325 x 44 mm |
|
Weight |
Without mounting brackets: 5.1 kg
With mounting brackets: 5.2 kg |
|
Enclosure material |
SGCC steel |
|
Hardware |
|
Management interface |
Ethernet In-Band |
|
Networking interface |
(16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports |
|
PoE interface |
(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
|
Total non-blocking throughput |
56 Gbps |
|
Switching capacity |
112 Gbps |
|
Power method |
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input |
|
Power supply |
AC/DC, internal, 450W |
|
Supported voltage range |
100—240V AC |
|
Max. power consumption |
50W (Excluding PoE output) |
|
Total available PoE |
400W |
|
Max. PoE wattage per port by PSE |
PoE: 15.4W
PoE+: 30W
PoE++: 60W |
|
Voltage range PoE mode |
PoE: 44—57V
PoE+: 50—57V |
|
LCM display |
(1) 1.3" touchscreen |
|
Button |
Factory reset |
|
Ambient operating temperature |
-5°C έως +40°C |
|
Ambient operating humidity |
10 to 90% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Switching Features |
|
Layer 2 features |
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs |
|
Layer 3 features |
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs |
|
Etherlighting™ |
|
Ethernet |
Locating
Speed/link
Native VLAN/network |
|
SFP+ |
Locating
Speed/link
Native VLAN/network |
|
LEDs |
|
System |
Status |
|
RPS |
Status |
|
Application Requirements |
|
UniFi Network |
Version 8.0.24 and later |

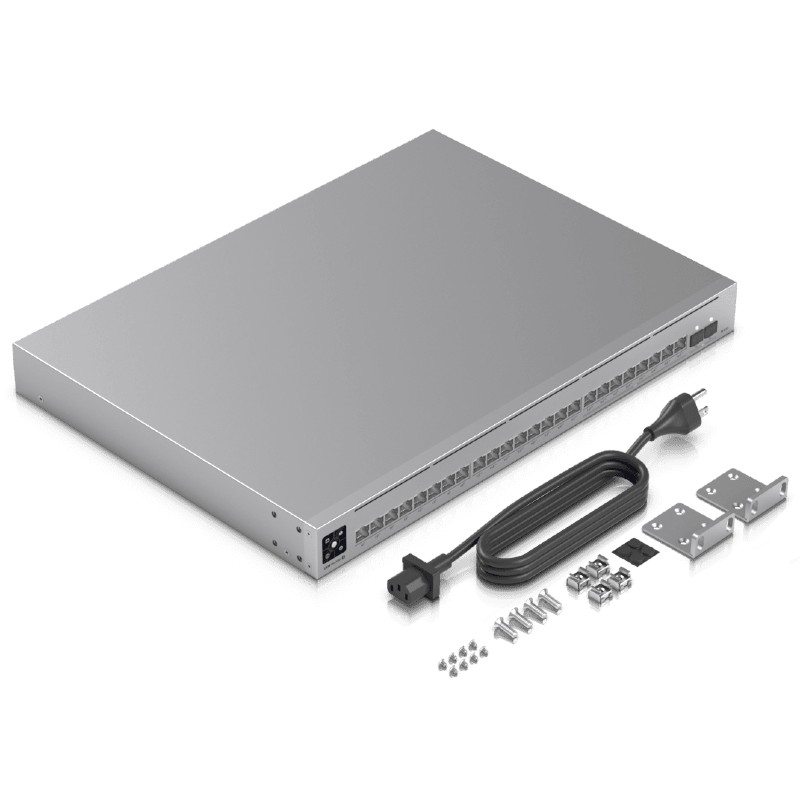

| Package Contents: |
|---|
| 1 x USW-Pro-Max-24-PoE
|
| 1 x Power cord
|
| 1 x Rackmount ears (ΚΙΤ) |
|
