Ubiquiti Networks » UISP-Console

Ubiquiti UISP-Console - UISP Console
[3021][UISP-Console]

Price: 258,04€

Order or Qty		Price
> 500€	5+	255,46€
> 1000€	10+	252,88€
> 2000€	20+	250,30€
> 5000€	40+	247,72€
> 10000€	100+	245,14€

Prices exclude VAT

Ships in:
3-5 working days
Quantity: 67

Order Qty:

UPC:	810010077752

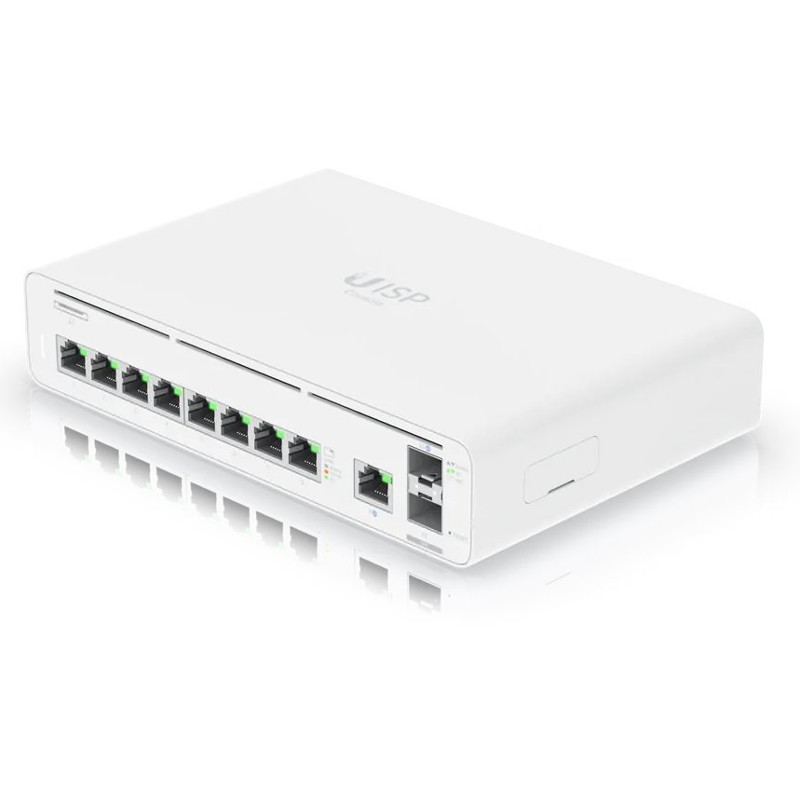

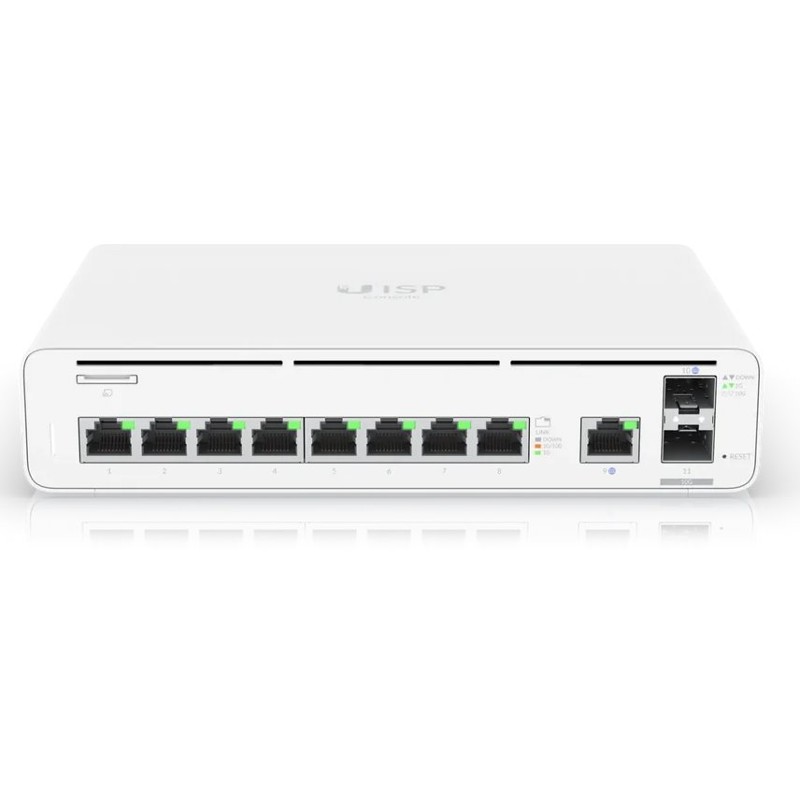

UISP-Console - UISP host console with an integrated switch and multi-gigabit Ethernet gateway.

The UISP® Console is designed to support small to moderate UISP deployments with its built-in switch equipped with (8) GbE RJ45 LAN ports.

The UISP Console also serves as a high-performance gateway with (1) 10G SFP+ LAN port and (2) WAN ports (10G SFP+ and GbE RJ45) that provide an ample connectivity range capable of supporting the most data-intensive deployments.

Product Links:
Datasheet	Installation Guide

Features:

(2) 10G SFP+ ports
(9) GbE RJ45 ports
Powered by an external AC/DC adapter (included)
Compact, durable metal casing
1U rack or wall-mountable (kits included)
Easy, Bluetooth-powered setup via the UISP Mobile app
Pre-installed UISP application

Mechanical
Dimensions	210.4 x 140.2 x 43.7mm
Weight	1.5 kg
Enclosure materials	SGCC steel, polycarbonate
Hardware
Processor	Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory	4 GB DDR4
Onboard flash storage	16 GB eMMC
Onboard storage	128 GB SSD
Card slot	(1) microSD
Networking interface	(8) LAN: GbE RJ45 ports (1) LAN: 1/10G SFP+ port (1) WAN: GbE RJ45 port (1) WAN: 1/10G SFP+ port
Management interface	Ethernet In-band Bluetooth
Power method	(1) External AC/DC adapter (1) Power TransPort DC input 27V DC, 1.5A
Power supply	24V DC, 2.5A power adapter (included)
Supported voltage range	24—28V DC
Max. power consumption	30W
ESD/EMP protection	Air: ± 15kV, contact: ± 8kV
Operating temperature	-10°C to 50°C
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
LEDs
System	Status
RJ45 data ports	Speed/link/activity
SFP+ data ports	Speed/link/activity
