Aerial.net :: Ubiquiti UP-Chime

Ubiquiti Networks » UP-Chime

Ubiquiti UP-Chime - Smart Chime
[3020][UP-Chime]

Price: 61,48€

Prices exclude VAT

Available after:
25 Dec 2024

Order Qty:

UPC:	810010077738

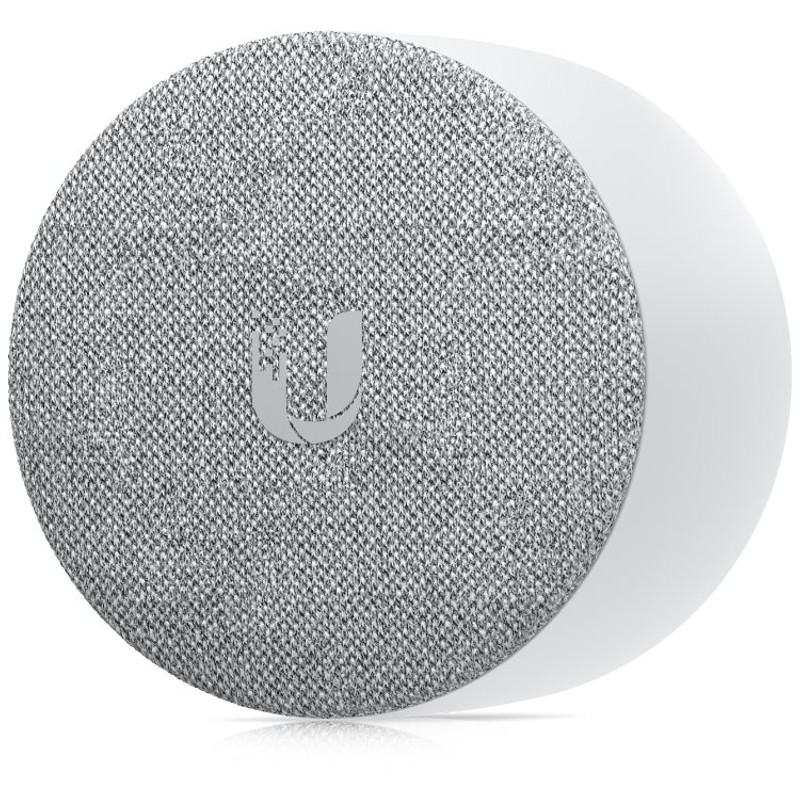

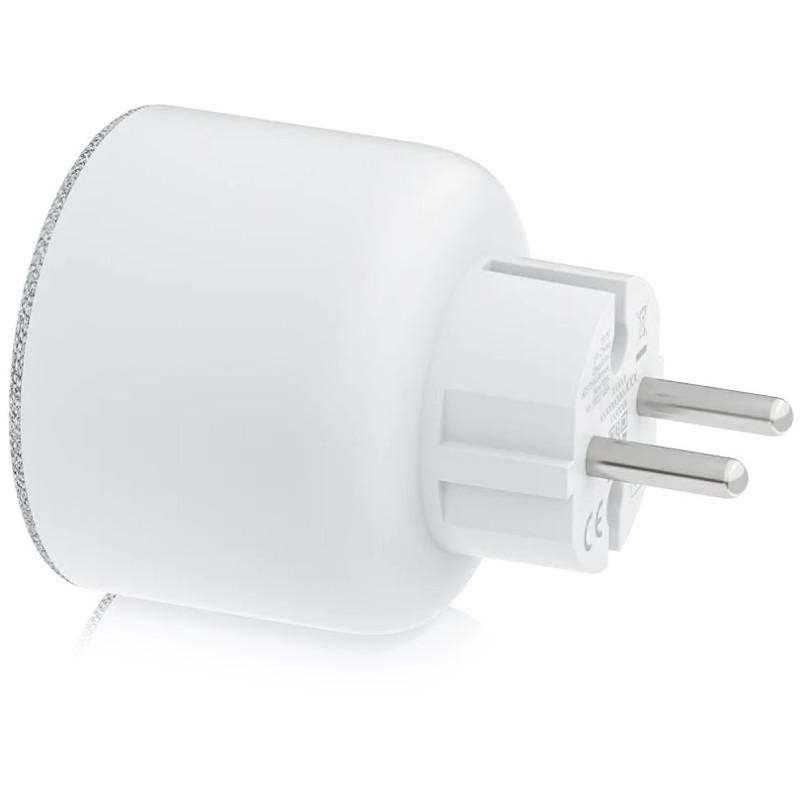

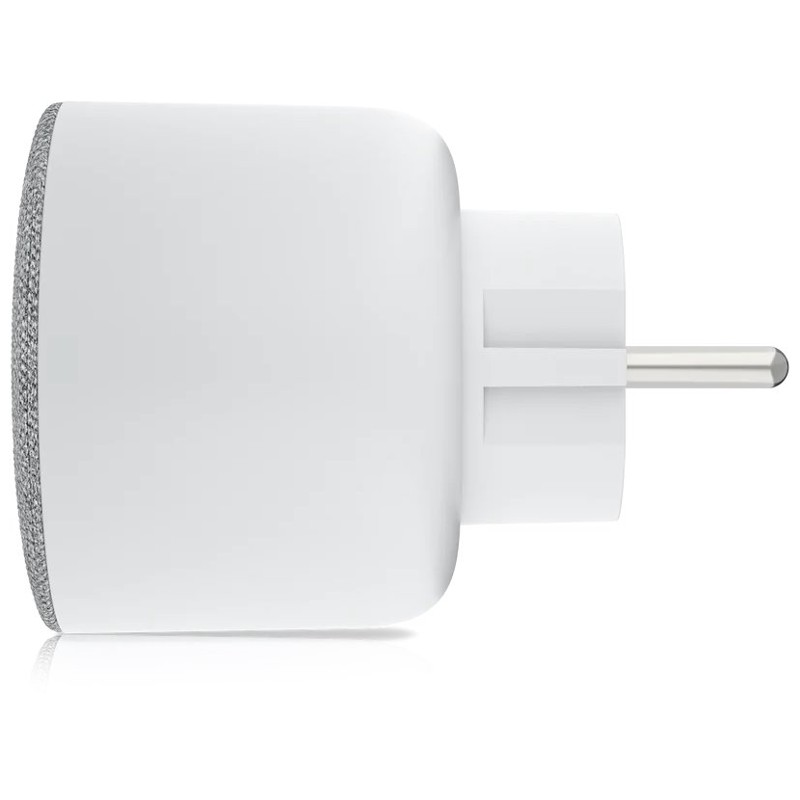

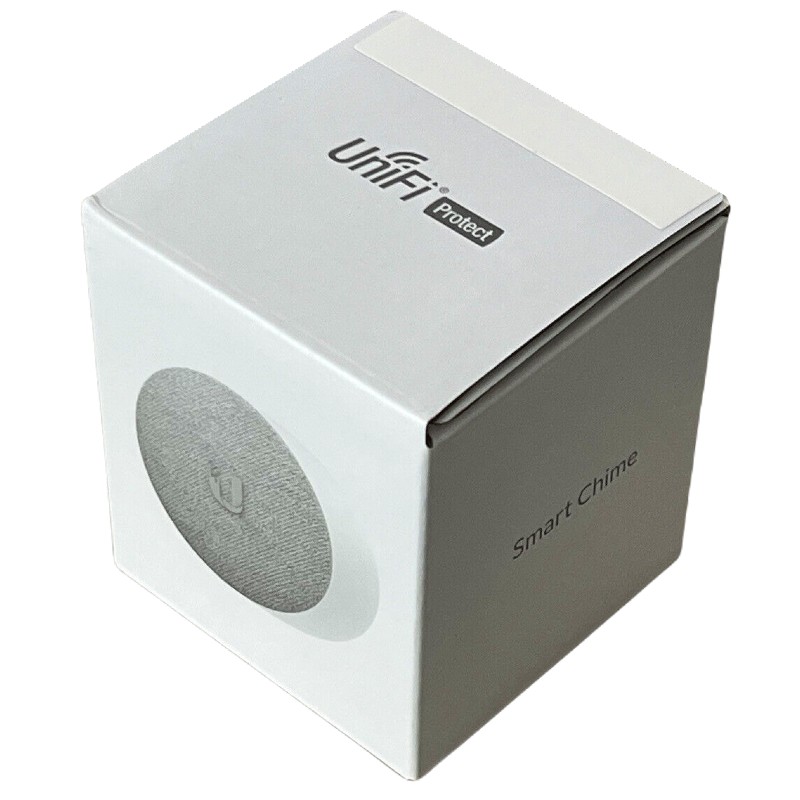

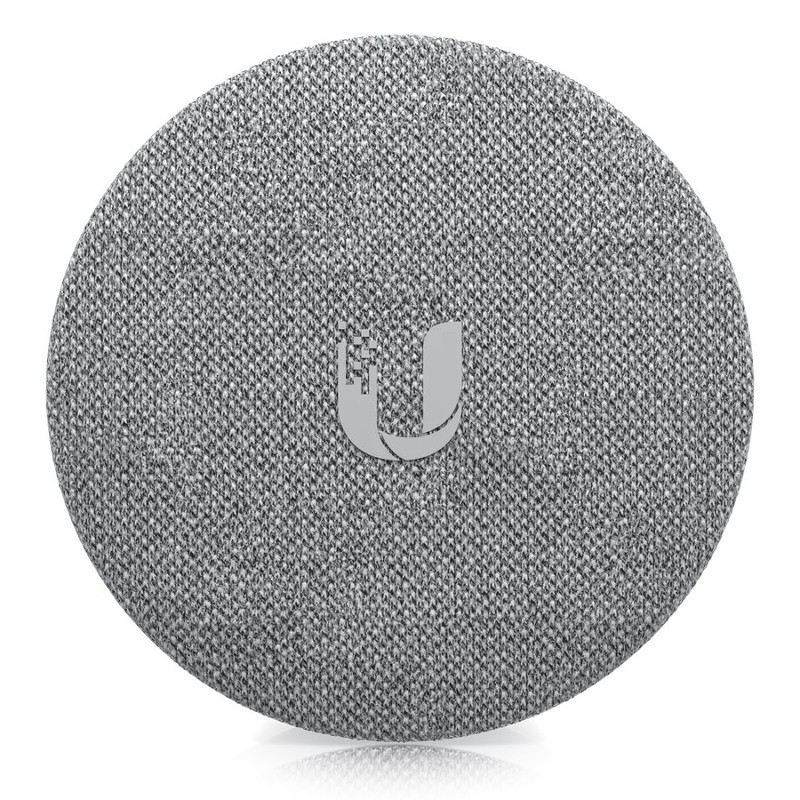

UP-Chime - UniFi Protect Smart Chime

A WiFi connected chime that can be plugged into a standard wall outlet and paired with a UniFi Protect doorbell.

This device is ideal for homes without a wired chime system or one that is incompatible with their Protect doorbell.

Managed with the UniFi Protect application: Version 2.0 and later (web) / 1.6.2 and later (iOS) / 1.6.0 and later (Android)

Product Links:
Datasheet	Quick Start Guide

Mechanical
Dimensions	Ø62 x 68.93 mm without prong
Weight	127 g
Enclosure materials	Polycarbonate, fabric
System
Processor	Single/Dual-Core® Xtensa® 32 bit 400MIPS
Networking interface	WiFi 802.11 b/g/n
Power method	AC
Supported voltage range	100-240V, 50-60 Hz
Max. power consumption	3.7W
Antenna gain	2 dBi
ESD/EMP protection	Air: ± 16kV, contact: ± 8kV
LEDs	(5) White
Button	Factory reset
Operating temperature	0°C to 40°C
Operating humidity	10 to 90% noncondensing
Certifications	FCC, IC, CE
Audio
Speaker	Yes
Buzzer	Yes
Software
UniFi OS application	UniFi Protect
Mobile app	UniFi Protect iOS™ and Android™
