Aerial.net :: Ubiquiti POE-24-12W-G-WH, PoE Injector, 24V 12W, Gigabit White EU

Ubiquiti Networks » POE-24-12W-G-WH

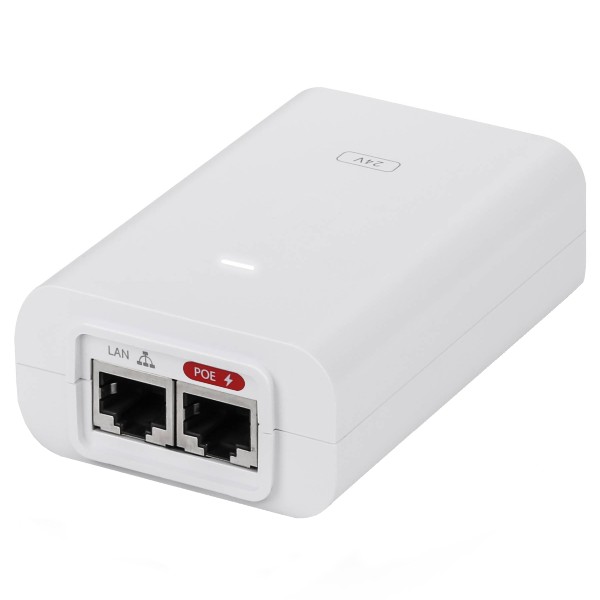

Ubiquiti POE-24-12W-G-WH, PoE Injector, 24V 12W, Gigabit White EU
[2984][POE-24-12W-G-WH]

Price: 11,33€

Prices exclude VAT

In Stock: 1

Order Qty:

UPC:	810354025983
EAN:	817882022507

POE-24-12W-G-WH

The POE-24 (24V/0.5A) features earth grounding/ESD protection, power LED, and is available in the EU (CEE 7/16) Version.

Product Links:
Datasheet

Specification:
Output Voltage:	24VDC @ 0.5A
Input Voltage:	90-260VAC @ 47-63Hz
Input Current:	0.3A @120VAC, 0.2A @230VAC
Inrush Current:	<15A peak @120VAC, <30A peak
Efficiency:	70+%
Output Ripple:	1% Max
Switching Frquency:	200kHz
Line Regulation:	+/- 0.5%
Load Regulation:	+/- 1%
Operating Temperature:	-10°C to +60°C
Storage Temperature:	-20°C to +85°C
Operating Humidity:	5% to 90% non condensing
Size (l x w x h):	85 x 55 x 33 mm
Weight:	115gr
AC Connector:	IEC-320 C6
Data IN / POE:	RJ45 Shielded Socket
80% Current Indicator:	Power LED will change color
Surge Protection:	Common Mode
Clamping Protection:	11V Data, 77.5V Power
Max Surge Discharge:	1200A (8/20uS) Power
Peak Pulse Current:	36A (10/1000uS Data)
Shunt Capacitance:	<5pF data
Response Time:	<1nS
Compliance:	UL, EN55022 (CISPR22) class B, Meets CE
Special Features:
LAN Activity Indicator:	Detects if LAN is connected to device

Package Contents:
1 x POE-24-12W-G-WH

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
