Aerial.net :: Ubiquiti UISP-Cable-Pro, (TC-Pro, TOUGH Cable Level 1), 305m box

Ubiquiti Networks » UISP-Cable-Pro

Ubiquiti UISP-Cable-Pro, (TC-Pro, TOUGH Cable Level 1), 305m box
[2825][UISP-Cable-Pro]

Price: 128,06€

Order or Qty		Price
> 500€	5+	126,78€
> 1000€	10+	125,50€
> 2000€	20+	124,22€
> 5000€	40+	122,94€
> 10000€	100+	121,66€

Prices exclude VAT

In Stock: 1

Available quantity within
3-5 working days: 122

Order Qty:

UPC:	810010075819

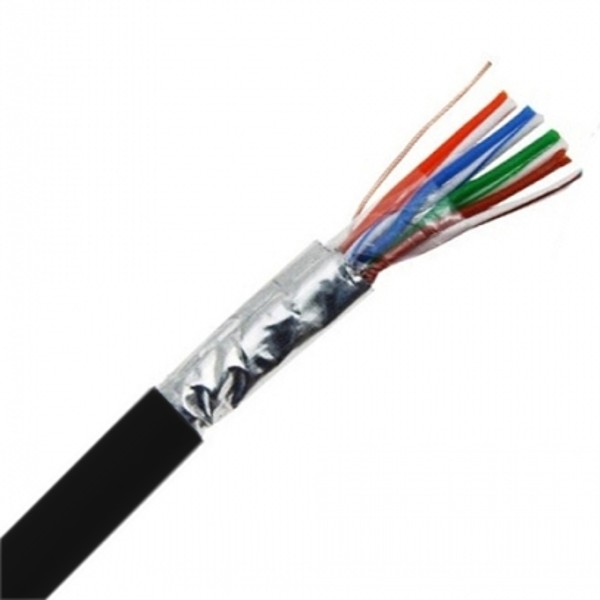

UISP-Cable-Pro Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage

he UISP-Cable-Pro is a Category 5e cable with a highly insulating, weatherproof jacket that prevents damage from rain, snow, and other extreme climatic conditions.

The cable is also fortified with internal foil shielding and a drain wire that collectively shield it from electrostatic discharge (ESD) and allow it to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.

Product Links:
Datasheet

Specifications:
Box Dimensions	330 x 330 x 340 mm
Box Weight	12 kg
Cable Length	305 m (1000 ft)
Cable Color	Black
Cable Type	CAT5e, Shielded
Ethernet Support	Up to 1 Gbps
Conductor Wire Gauge	24 AWG
Conductor	Solid Bare Copper
Conductor Diameter	0.500 ± 0.005 mm
Insulation Type	Solid Polyethylene
Insulation Thickness	Avg. 0.26 mm Min. 0.25 mm
Insulation Diameter	1.04 ± 0.03 mm
Separation (Polyester Wrapping)	Thick: 0.025 mm, Extent: 20 mm
Anti-Crosstalk Divider	None
Cable Shield (Aluminum Foil)	Thick: 0.060 mm, Extent: 18 mm
ESD Drain Wire	0.4 CCS
Rip Cord	Yes
Jacket Material	Polyethylene
Jacket Thickness	Avg. 0.50 mm Min. 0.46 mm
Jacket Outer Diameter	6.0 ± 0.30 mm
Jacket Color	Black
Storage Temperature	-30°C to 75°C
Installation Temperature	-20°C to 60°C
Operation Temperature	-40°C to 80°C
Standards	ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2)

Package Contents:
1 x UISP-Cable-Pro
