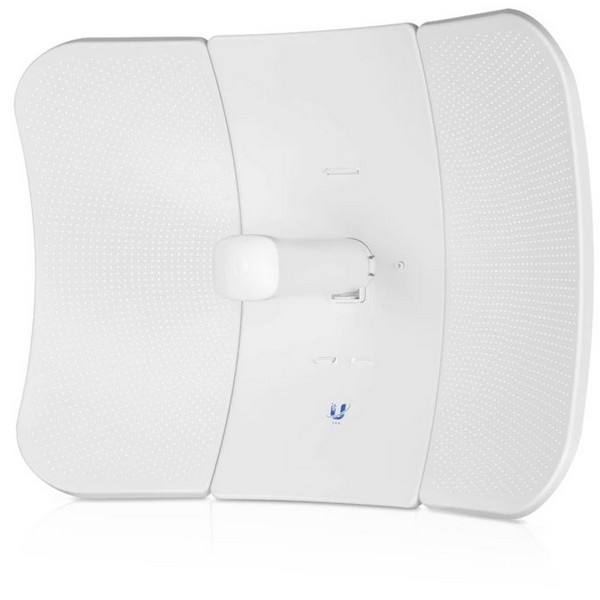

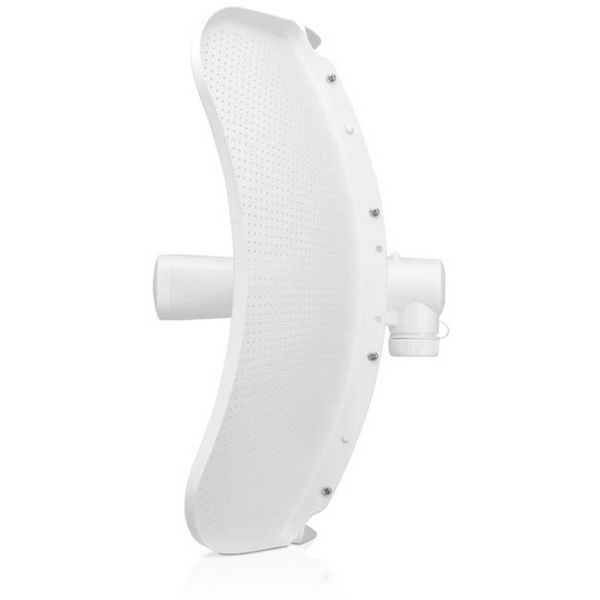

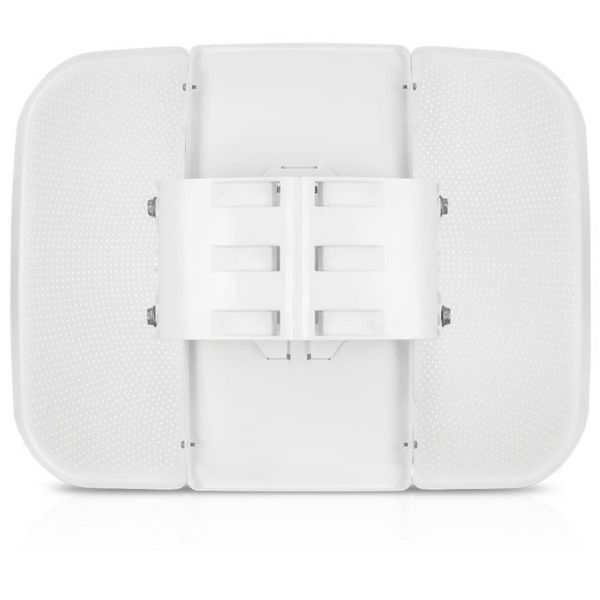

LTU LR
Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).
Features:
-
PtMP CPE
-
1024 QAM
-
10/20/30/40/50 MHz channel bandwidth
-
Central configuration management from AP side
-
Frequency split
-
Auto power adjustments
-
Router mode support
-
Range up to 30km
Functions in a PtMP environment with the LTU-Rocket as the basestation
|

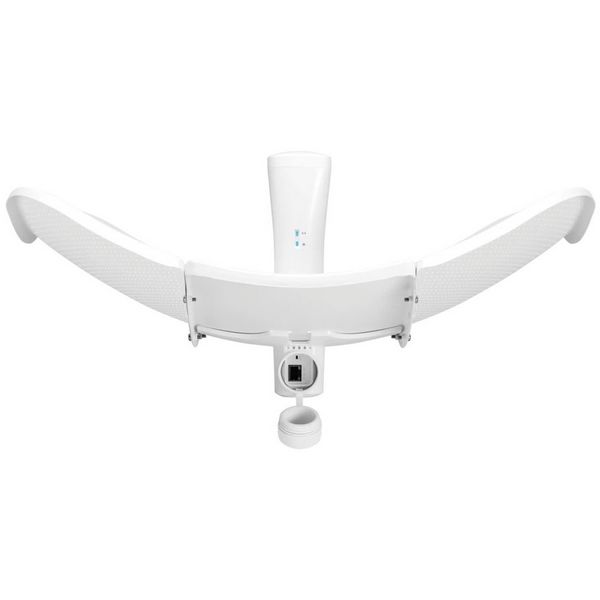

Connectors and Interfaces |
|
LAN speed |
(1) 10/100/1000Mbps |
|
Gigabit LAN |
Yes |
|
Physical characteristics |
|
Purpose |
Outdoor |
|
Buttons |
Reset |
|
Operating temperature [°C] |
-40 up to 60 |
|
Weight [g] |
1360 |
|
Depth [mm] |
258 |
|
Width [mm] |
513 |
|
Height [mm] |
386 |
|
Power |
|
Power over Ethernet |
22 .. 26V DC |
|
PoE type |
PoE-In (only) |
|
Max. power consumption [W] |
8,5 |
|
Software |
|
Operating mode |
Client, Client Router (wisp) |
|
Operating system |
airOS LTU |
|
IPv6 support |
Yes |
|
Default IP address |
192.168.1.20 |
|
Default login and password |
ubnt/ubnt |
|
Wireless features |
|
Maximum modulation |
1024 QAM |
|
Wireless frequency |
5 GHz |
|
WiFi standards |
LTU |
|
Tx power 5GHz [dBm] |
22 |
|
5GHz MIMO |
2 x 2 |
|
Type of antenna |
Built-in |
|
Internal antennas |
2 |
|
Antenna gain [dBi] |
26 |

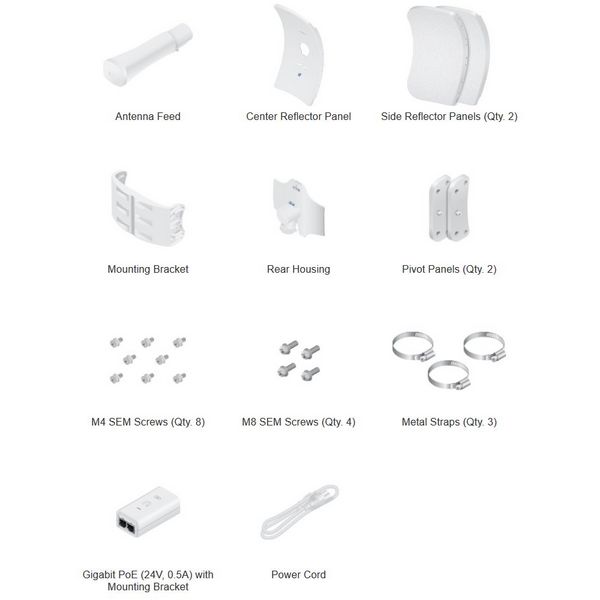

| Package Contents: |
|---|
| 1 x LTU-LR
|
| 1 x Mast bracket
|
| 3 x Metal strap
|
| 1 x Gigabit PoE (24V, 0.5A) with Mounting Bracket
|
| 1 x Power Cord |
|
