Ubiquiti Networks » U-POE-af
Ubiquiti U-POE-af - Gigabit PoE Injector, 48V 24W - White
[2264][U-POE-af]
Price: 7,25€
 Order or Qty  Price
 > 500€  5+   7,18€
 > 1000€  10+   7,10€
 > 2000€  20+   7,03€
 > 5000€  40+   6,96€
 > 10000€  100+   6,89€
Prices exclude VAT

Ubiquiti U-POE-af - Gigabit PoE Injector, 48V 24W - White
In Stock: 52

Available quantity within
3-5 working days: 490
Order Qty:
UPC:817882024976

U-POE-af - Gigabit 802.3af PoE Injector 48v/0.5A (24W) - Wihte

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage

  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground

Product Links:
Datasheet Datasheet

Specifications:
Dimensions 86 x 46 x 33 mm
Weight 100 g
Output Voltage 48VDC @ 0.32A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 500mA @ 90VAC
Inrush Current <100A Peak @ 25°C
Efficiency 84.25+%
Output Ripple 200mV p-p
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering -
Operating Temperature 0 to 40°C
Storage Temperature -30°C to 70°C
Operating Humidity 5 to 90% Noncondensing

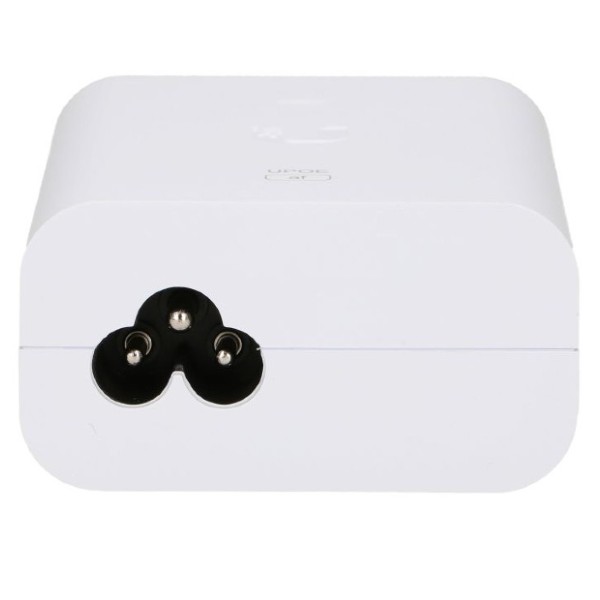

AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 µs) Power
Peak Pulse Current 36A (10/1000 µs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL

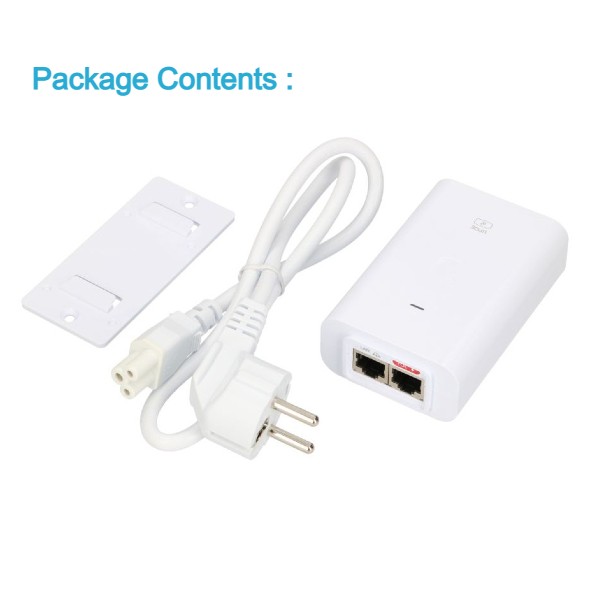

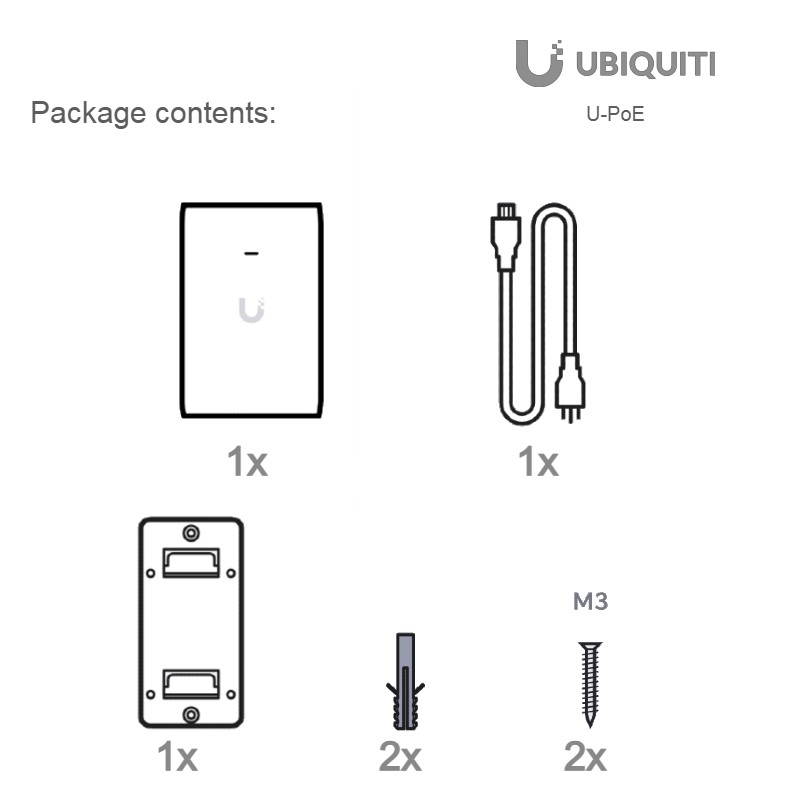

Package Contents:
1 x U-POE-af in poybag
1 x AC Cable CEE 7/7
1 x Wall mount bracket

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
