Ubiquiti Networks » UF-LOCO
Ubiquiti UF-Loco, U-Fiber, Loco, GPON CPE
[2138][UF-LOCO]
Price: 42,81€
 Order or Qty  Price
 > 500€  5+   42,38€
 > 1000€  10+   41,95€
 > 2000€  20+   41,53€
 > 5000€  40+   41,10€
 > 10000€  100+   40,67€
Prices exclude VAT

Ubiquiti UF-Loco, U-Fiber, Loco, GPON CPE

In Stock: 1
Order Qty:
UPC:817882021777

UF-Loco

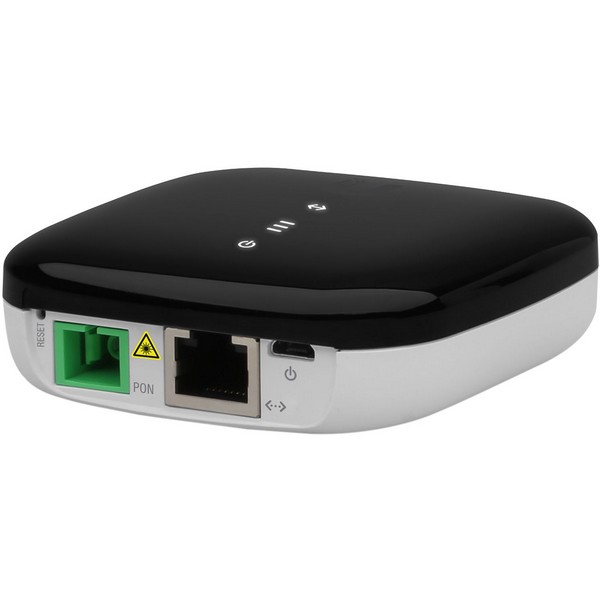

Sporting a sleek industrial design, the UFiber loco is a robust, high‑performance GPON CPE that features extremely low power consumption and the choice of 24V passive PoE or Micro-USB power.

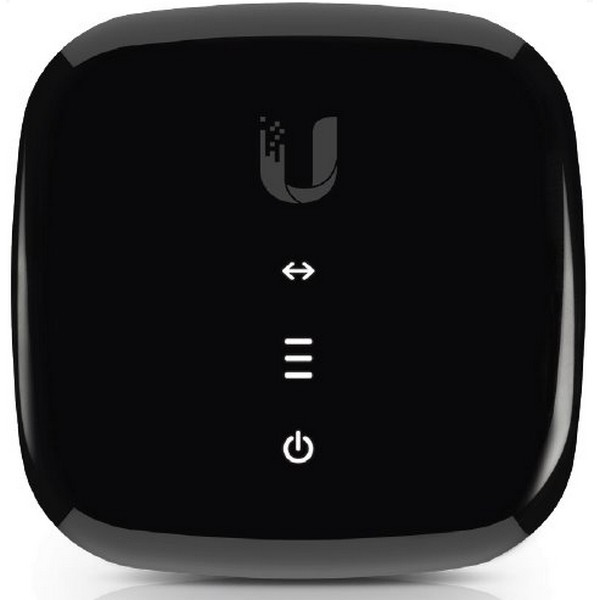

Compared to version UF-NANO on this unit lacks an information LED display, instead, everything you need shown in 3-state diodes - Ethernet connections, received signal strength indication and power.

The UFiber loco can be powered by a Micro-USB Power Adapter (included) or 24V passive PoE.

Up to 128 UFiber loco devices can be connected to a single GPON port.

Supporting GPON links of up to 20 km, the UFiber loco integrates with the UF-OLT and third-party OLT devices.

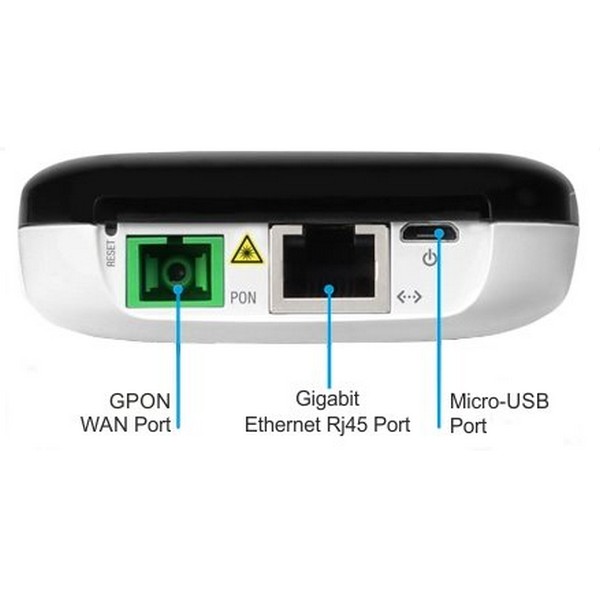

Connectors and Interfaces:
LAN speed: 10/100/1000Mbps
Optics:
Receiver sensitivity: -8dBm up to -28dBm
Tx power: 1.5dBm up to 5dBm
Transmission speed: 2.488 / 1.244 Gbps
Distance: 20 km
Physical characteristics:
Operating temperature : -10°C up to 45°C
Dimentions 77 x 77 x 26 mm
Power:
Max power consumption : 3.5 W
Power over Ethernet: 24V DC
Power via connector/terminal: 5V / 1A


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
