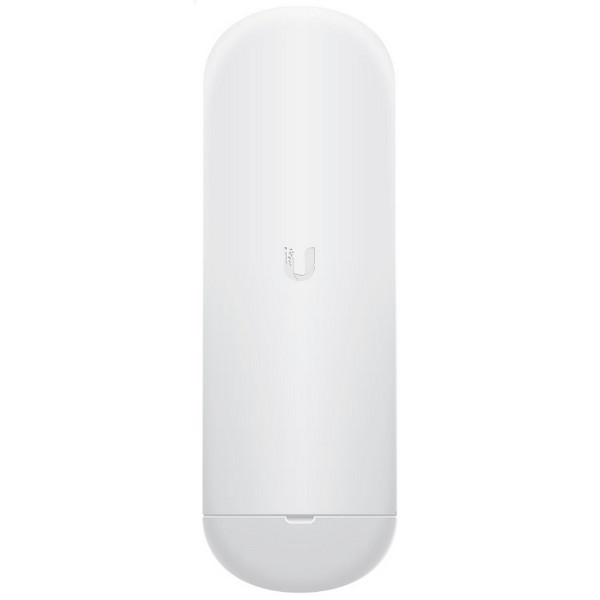

Nanostation 5ac
Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation M.
The NanoStation AC take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC get maximum gain out of the smallest footprint.
The low cost, high performance, and small form factor of the NanoStation AC make them extremely versatile and economical to deploy.
The NanoStation AC feature airMAX technology and a dedicated Wi-Fi radio for management.

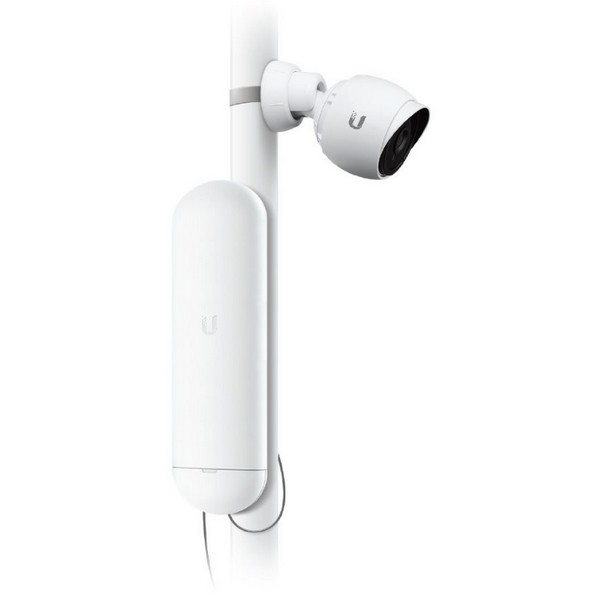

The NanoStation AC (NS-5AC) provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
|
Specifications: |
|
Dimensions: |
With Mount: 257 x 84 x 30 mm |
|
Weight: |
233g |
|
Power Supply: |
24V, 0.5A Gigabit PoE Supply |
|
Max. Power Consumption: |
8.5W |
|
Power Method: |
802.3af
24V Passive PoE |
|
Gain: |
16 dBi |
|

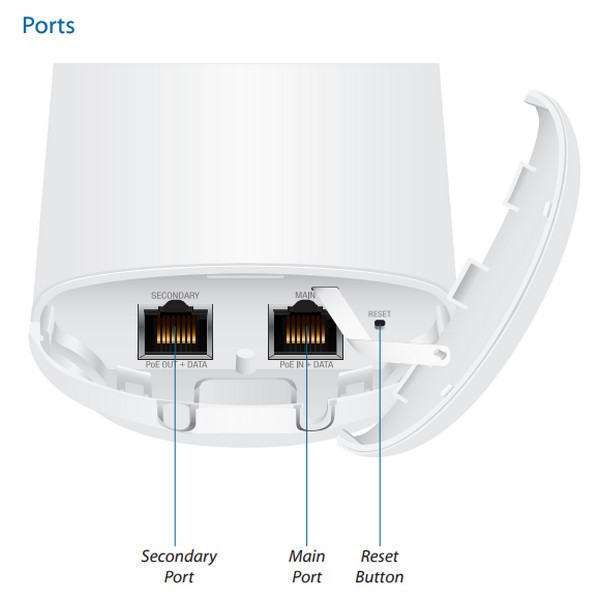

Ports: |
2 x 10/100/1000 Mbps |
|
Channel Bandwidths: |
10/20/30/40/50/60/80 MHz |
|
Processor Specs: |
Atheros MIPS 74Kc, 560 MHz |
|
Memory: |
64 MB DDR2 |
|
Cross-pol Isolation: |
20 dB Minimum |
|
Max. VSWR: |
1.6:1 |
|
Beamwidth: |
45° (H-pol) / 45° (V-pol) |
|
Elevation: |
45° |
|
Polarization: |
Dual Linear |
|
Enclosure: |
UV Resistant Polycarbonate |
|
LEDs: |
Power, Eth1, Eth2, Sig Strength |
|

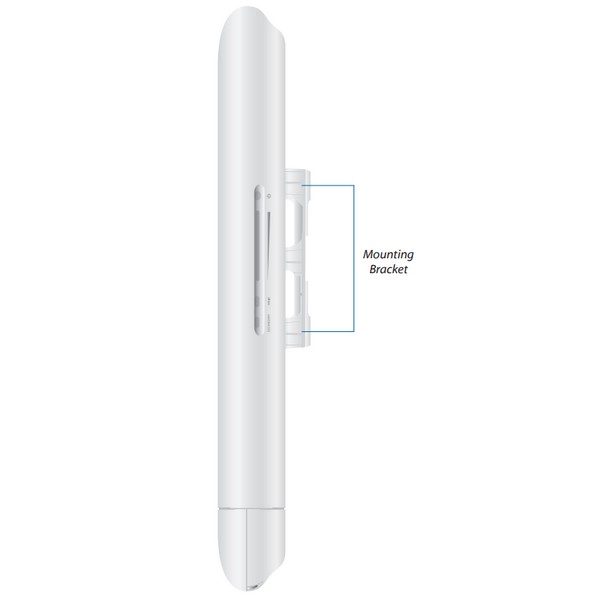

Mounting: |
Pole-Mount (Kit Included) |
|
Operating Temperature: |
-40°C to 70°C |
|
Operating Humidity: |
5 to 95% Noncondensing |
|
RoHS Compliance: |
Yes |
|
ESD/EMP Protection: |
±24kV Contact/Air |
|
Shock & Vibration: |
ETSI300-019-1.4 |
|
Certifications: |
CE, FCC, IC |

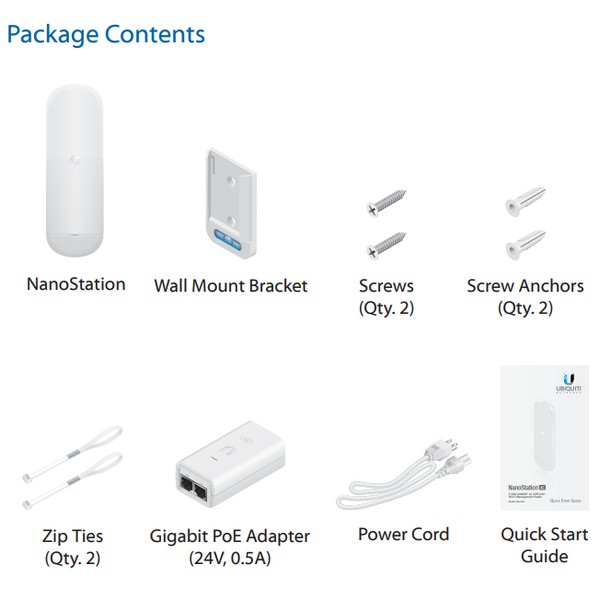

| Package Contents: |
|---|
| 1 x NanoStation 5AC
|
| 1 x Pole Mounting Kit
|
| 1 x Gigabit PoE (24V, 0.5A, EU AC Cable)
|
| 1 x Quick Start Guide |
|
