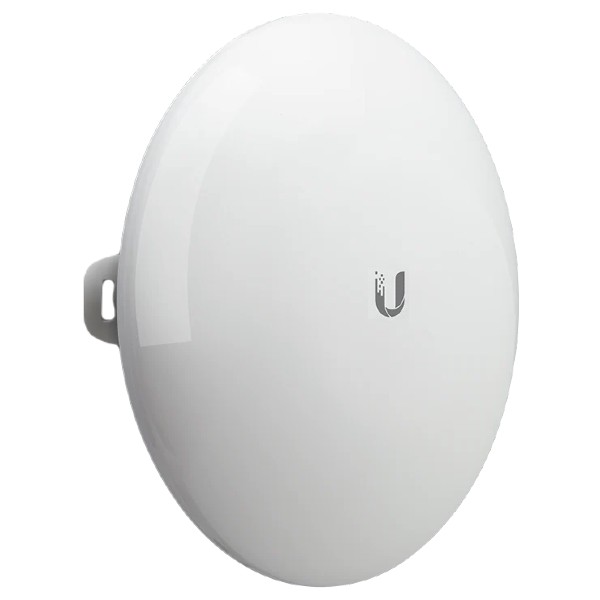

NBE-5AC-Gen2 - airMAX NanoBeam 5AC
Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimized radio and antenna.
Features:
-
5 GHz, 10+ km link range
-
450+ Mbps throughput
-
Easy mounting
-
Dedicated spectral analysis radio
-
Dedicated WiFi management radio
|
Mechanical |
|

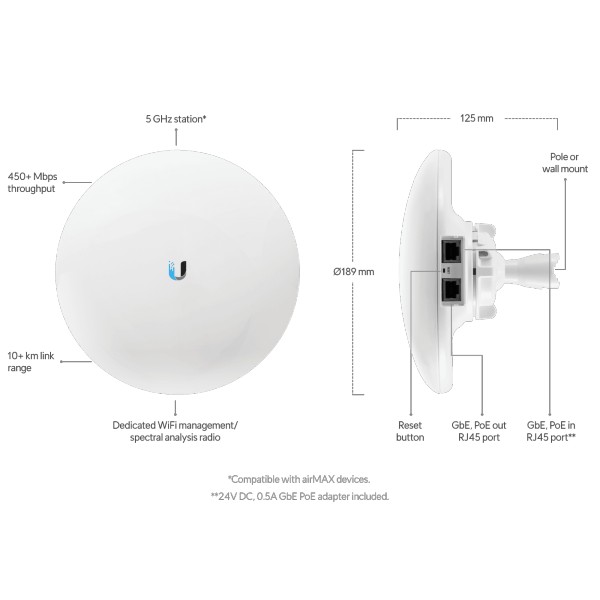

Dimensions |
Ø189 x 125 mm |
|
Weight |
530 g |
|
Enclosure material |
UV-stabilized plastic |
|
Mounting |
Pole mount kit (Included)
Wall mount (Not included) |
|
Wind loading |
45.4 N at 200 km/h |
|
Wind survivability |
200 km/h |
|
Hardware |
|
Networking interface |

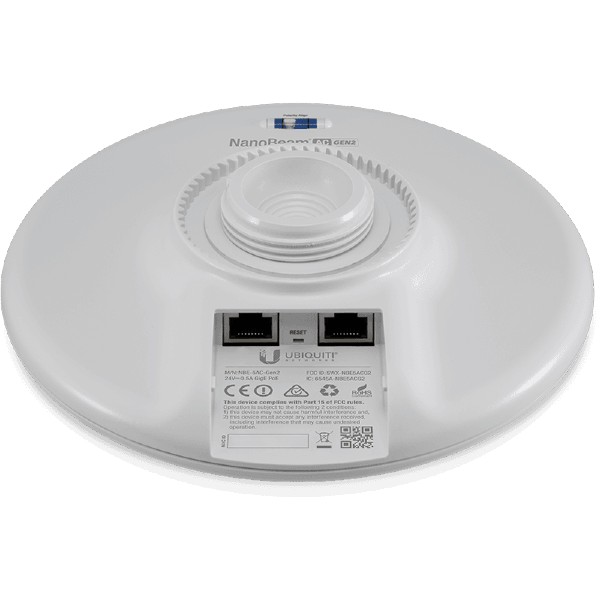

(2) GbE RJ45 ports |
|
Power method |
Passive PoE 2-pair (4, 5+; 7, 8 return) |
|
Power supply |
24V, 0.5A gigabit PoE adapter (Included) |
|
Supported voltage range |
20–27V DC |
|
Max. power consumption |
8.5W |
|
ESD/EMP protection |
Air/contact: ± 24kV |
|

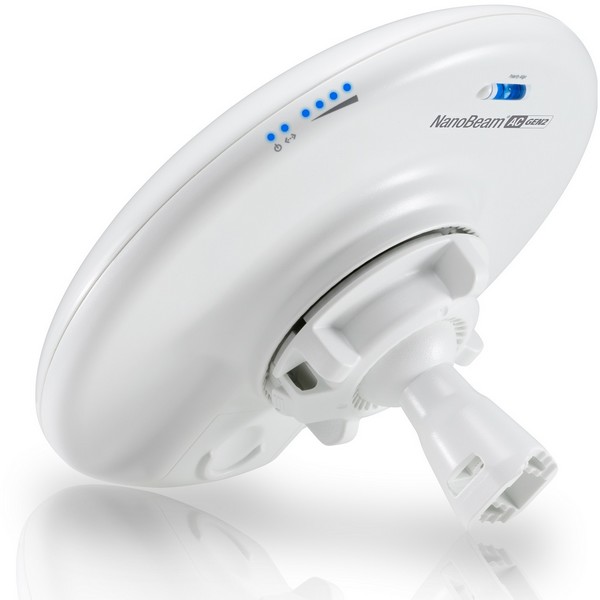

LEDs |
Power, Ethernet, (4) Signal strength |
|
Salt fog test |
IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5 |
|
Vibration test |
IEC 68-2-6 |
|
Temperature shock test |
IEC 68-2-14 |
|
UV test |
IEC 68-2-5 at 40°C
Equivalent: ETS 300 019-1-4 |
|
Wind-driven rain test |
ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5 |
|
Ambient operating temperature |
-40°C to 80°C |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
System |
|
Gain |
19 dBi |
Channel sizes
PtP Mode
PtPM Mode |
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz |
|
Max. VSWR |
1.5:1 |
|
Polarization |
Dual linear |
|
Operating Frequency (MHz) |
|
Worldwide |
5150-5875 MHz |

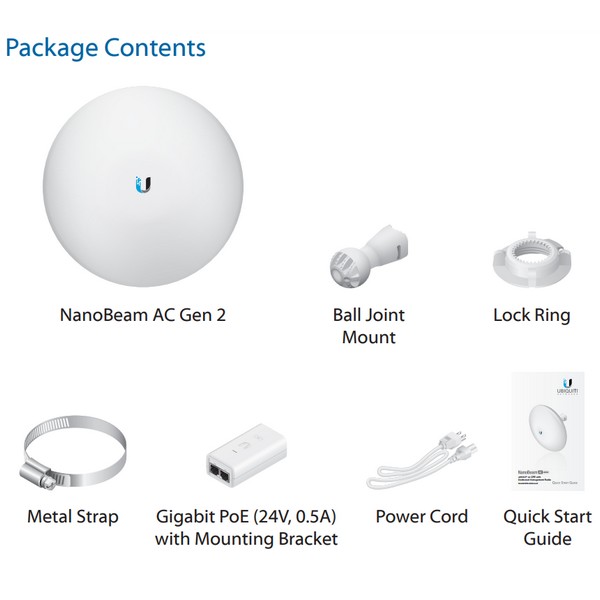

| Package Contents: |
|---|
| 1 x NBE-5AC-Gen2
|
| 1 x Pole Mounting Kit
|
| 1 x Gigabit PoE (24V, 0.5A) with Mounting Bracket
|
| 1 x Power Cord |
|
