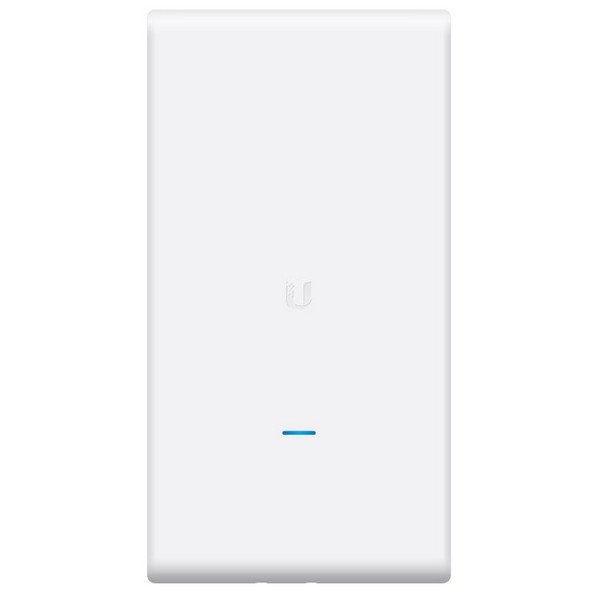

UAP-AC-M-PRO
UAP-AC-M-PRO is powerfull wireless accesspoint 3x3 MIMO with modulation speed up to 450 Mbps for 2.4GHz band (802.11b/g/n) and up to 1300 Mbps for 5GHz band (802.11a/n/ac).
The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it ideal for outdoor deployment.
Built-in dual-band omnidirectional antennas deliver expanded range coverage outdoors.
You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter.

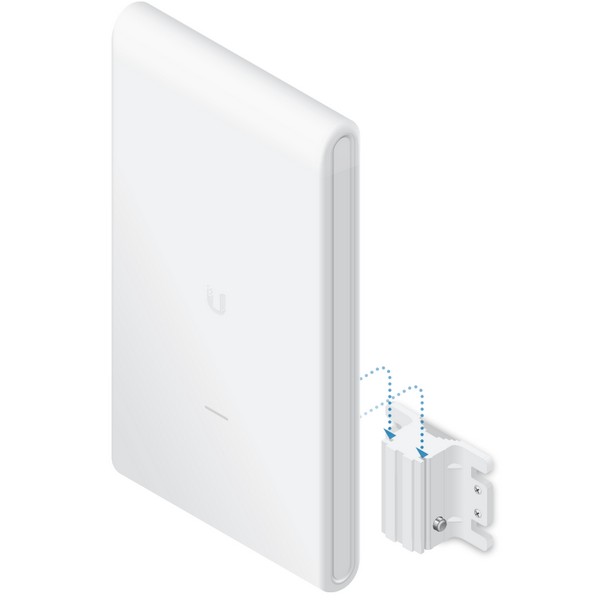

The UniFi AC Mesh Pro AP can be mounted on a wall or pole (all accessories are included).
|

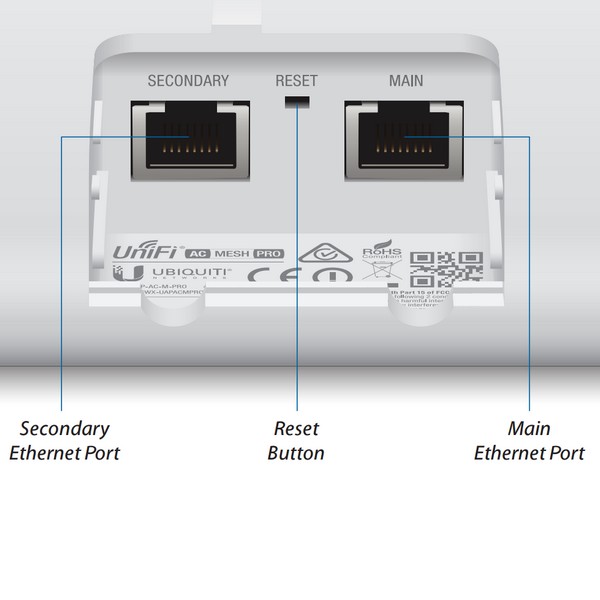

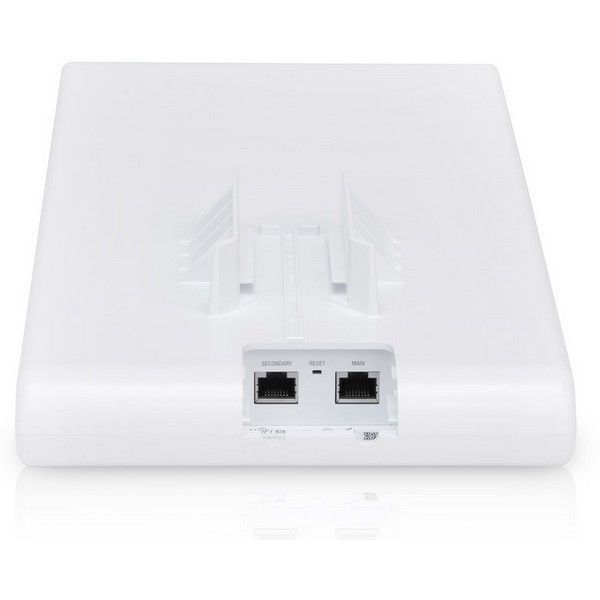

Connectors and Interfaces: |
|
LAN speed: |
(2) 10/100/1000Mbps |
|
Gigabit LAN: |
Yes |
|
Physical characteristics: |
|
Purpose: |
Outdoor |
|
Buttons: |
Reset |
|
Operating temperature: |
-40°C up to 70°C |
|
Weight: |
633 g |
|
Depth: |
60 mm |
|
Width: |
181 mm |
|
Height: |
343 mm |
|
Power: |
|
Max. power consumption: |
9 W |
|
Power over Ethernet: |
802.3af, 44 .. 57V DC |
|
PoE type: |
Input |
|
Software: |
|
IPv6 support: |
Transparent (bridge mode) |
|
Operating mode: |
Access Point |
|
Default IP address: |
192.168.1.20, Dynamic from DHCP |
|
Default login and password: |
ubnt / ubnt |
|
Wireless features: |
|
Wireless frequency: |
2.4 + 5 (dual band) GHz |
|
Transmission speed - WiFi 2.4GHz: |
450 Mb/s |
|
Transmission speed - WiFi 5GHz: |
1300 Mb/s |
|
WiFi standards: |
802.11ac, 802.11n, 802.11a, 802.11b/g |
|
Tx power 2.4GHz: |
22 dBm |
|
Tx power 5GHz: |
22 dBm |
|
Security: |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
|
2.4GHz MIMO: |
3 x 3 |
|
5GHz MIMO: |
3 x 3 |
|
Type of antenna: |
Build-in |
|
Internal antennas: |
3 |
|
Roaming: |
Yes |
|
Antenna gain: |
8 dBi |

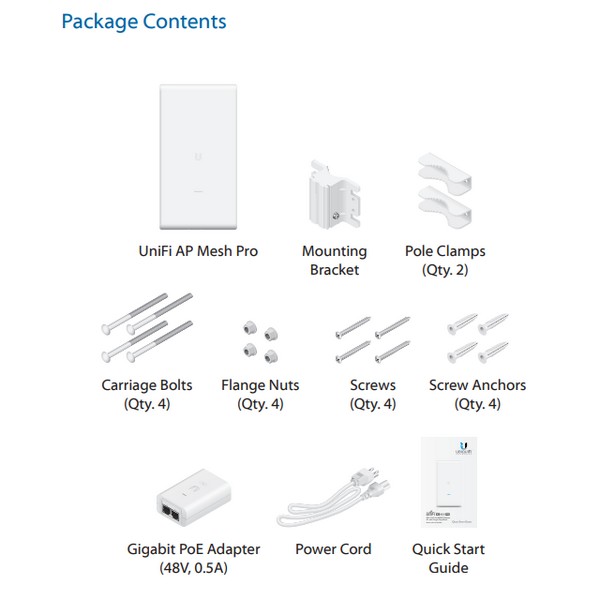

| Package Contents: |
|---|
| 1 x UniFi AP Mesh Pro
|
| 1 x Pole Mounting Kit
|
| 1 x Gigabit PoE 48V, 0.5A
|
| 1 x Power Cord |
|
