Ubiquiti Networks » POE-24-AF5X
Ubiquiti POE-24-AF5X, PoE Injector, 24V 24W, EU - (AF-5X)
[1664][POE-24-AF5X]
Price: 13,30€
 Order or Qty  Price
 > 500€  5+   13,16€
 > 1000€  10+   13,03€
 > 2000€  20+   12,90€
 > 5000€  40+   12,76€
 > 10000€  100+   12,63€
Prices exclude VAT

Ubiquiti POE-24-AF5X, PoE Injector, 24V 24W, EU - (AF-5X)

In Stock: 6

Available quantity within
3-5 working days: 57
Order Qty:
UPC:810354023040

POE-24-AF5X

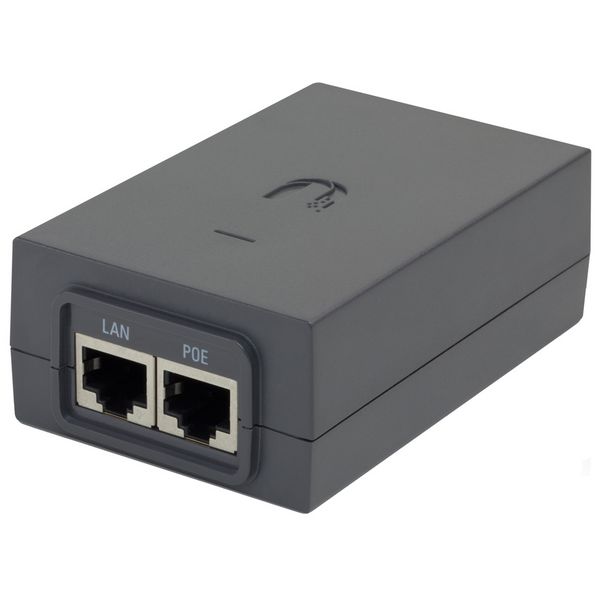

A gigabit PoE adapter designed to supply the AirFiber 5X devices, at voltage of 24V and up to 1A current.

The adapter has LED indicating power supply.

Specifications:
Output Voltage: 24VDC @ 1A
Input Voltage: 90-260VAC @ 47-63Hz
Input Current: 0.3A @120VAC, 0.2A @230VAC
Inrush Current: <15A peak @120VAC, <30A peak
Efficiency: 70+%
Output Ripple: 1% Max
Switching Frquency: 200kHz
Line Regulation: +/- 0.5%
Load Regulation: +/- 1%
Operating Temperature:  -10°C to +60°C
Storage Temperature: -20°C to +85°C
Operating Humidity: 5% to 90% non condensing
Size (l x w x h): 85 x 55 x 33 mm
Weight: 115gr
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
80% Current Indicator: Power LED will change color
Surge Protection: Common Mode
Clamping Protection: 11V Data, 77.5V Power
Max Surge Discharge: 1200A (8/20uS) Power
Peak Pulse Current: 36A (10/1000uS Data)
Shunt Capacitance: <5pF data
Response Time: <1nS
Compliance: UL, EN55022 (CISPR22) class B, Meets CE
Special Features:
LAN Activity Indicator: Detects if LAN is connected to device
Remote Reset Capability:  Supports Airmax Bullet,Rocket,Nano,Pico
