Ubiquiti POE-48-24W-G, PoE Injector, 48V 24W, Gigabit, Black EU
[1519][POE-48-24W-G]
Price: 13,04€
 Order or Qty  Price
 > 500€  5+   12,91€
 > 1000€  10+   12,78€
 > 2000€  20+   12,65€
 > 5000€  40+   12,52€
 > 10000€  100+   12,39€
Prices exclude VAT

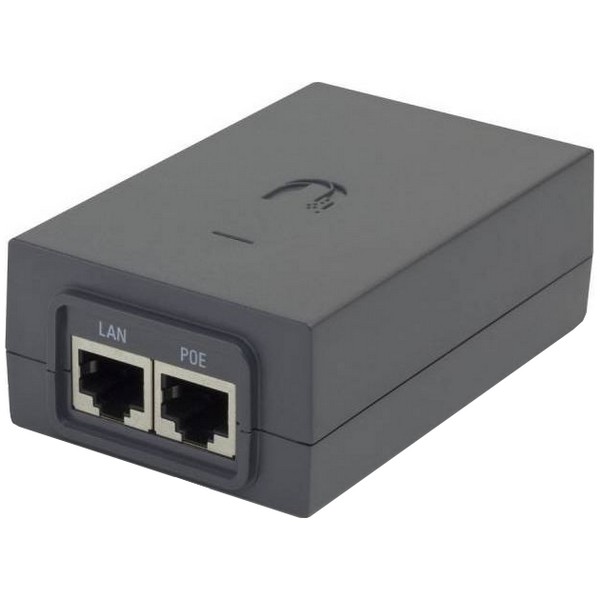

Ubiquiti POE-48-24W-G, PoE Injector, 48V 24W, Gigabit, Black EU
In Stock: 7
Order Qty:
UPC:810354023088

POE-48-24W-G

Ubiquiti Gigabit PoE adapter (48V, 24W).

Designed by Ubiquiti for BaseStation Equipment.

Features earth grounding/ESD protection, power LED, and remote reset capability.

Powering Mode Pins (+) Pins (-)
2-Pair B 4,5 7,8

Product Links:
Datasheet Datasheet   Installation Installation

Specifications:
Output Voltage: 48VDC @ 0.5A
Input Voltage: 90-260VAC @ 47-63 Hz
Input Current: 0.3A @ 120VAC,
0.2A @ 240VAC
Inrush Current: <30A Peak @120VAC,
<60A Peak @ 230VAC
Efficiency: 75+%
Output Ripple: 1% Max
Switching Frequency: 200kHz
Line Regulation: +/- 1%
Load Regulation: +/- 3%
Operating Temperature:   0 to 40°C
Storage Temperature: -30°C to 70°C
Operating Humidity: 35 to 95% Non-Condensing
Size (LXWXH): 87 x 84 x 29.2 mm
Weight: 4 oz
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
80% Current Indicator: Power LED will change color
Surge Protection: Common Mode
Clamping Protection: 11V Data, 60V Power
Max Surge Discharge: 1500A (8/20µS) Power
Peak Pulse Current: 36A (10/1000µS) Data
Shunt Capacitance: <5pF data
Response Time: <1nS
Compliance: IEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B

Package Contents:
1 x POE-48-24W-G
1 x AC Cable EU, Black
1 x Wall mount bracket

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
