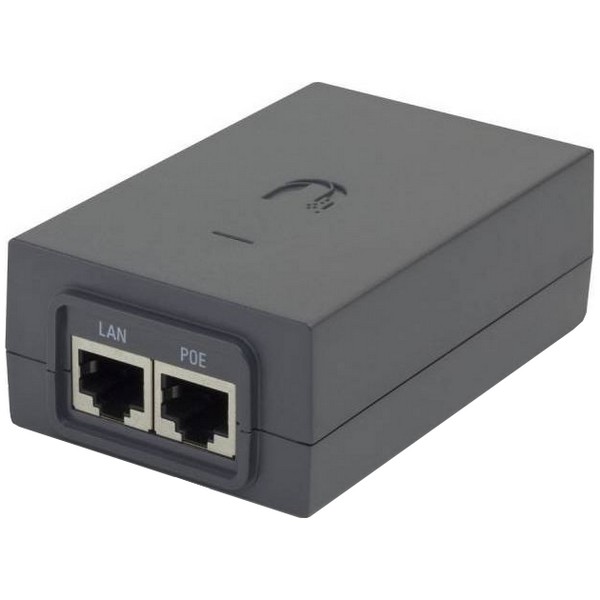

POE-24-24W-G
Ubiquiti Gigabit PoE adapter (24V, 24W).
It is a gigabit PoE adapter designed to supply equipment powered by 24V up to1A.
This is a 2-Pair / Mode B Powering PoE Adapter - Pins 4,5(+) and Pins 7,8(-)
Features earth grounding/ESD protection, power LED, and remote reset capability.
Compatible with RouterBoard, Alix etc.
Ideal for powering client stations CPE and base stations. The adapter has LED indicating power supply.
|
Powering |
Mode |
Pins (+) |
Pins (-) |
|
2-Pair |
B |
4,5 |
7,8 |
|
Specifications: |
|
Output Voltage: |
24VDC @1.0A |
|
Input Voltage: |
90-260VAC @47-63Hz |
|
Input Current: |
0.3A @120VAC, 0.2A @230VAC |
|
Inrush Current: |
<15A peak @120VAC, <30A peak |
|
Efficiency: |
70+% |
|
Output Ripple: |
1% Max |
|
Switching Frequency: |
200kHz |
|
Line Regulation: |
+/- 0.5% |
|
Load Regulation: |
+/- 1% |
|
Operating Temperature: |
-10C to +60 deg C |
|
Storage Temperature: |
-20°C to +85°C |
|
Operating Humidity: |
-10°C to +60°C |
|
Size (LXWXH): |
85 x 55 x 33 mm |
|
Weight: |
4 oz |
|
AC Connector: |
IEC-320 C6 |
|
Data IN / POE: |
RJ45 Shielded Socket |
|
80% Current Indicator: |
Power LED will change color |
|
Surge Protection: |
Common Mode |
|
Clamping Protection: |
11V Data, 77.5V Power |
|
Max Surge Discharge: |
1200A (8/20uS) Power |
|
Peak Pulse Current: |
36A (10/1000uS Data) |
|
Shunt Capacitance: |
<5pF data |
|
Response Time: |
<1nS |
|
Compliance: |
UL, EN55022 (CISPR22) class B, Meets CE |
| Package Contents: |
|---|
| 1 x POE-24-24W-G
|
| 1 x AC Cable EU, Black
|
| 1 x Wall mount bracket |
|
