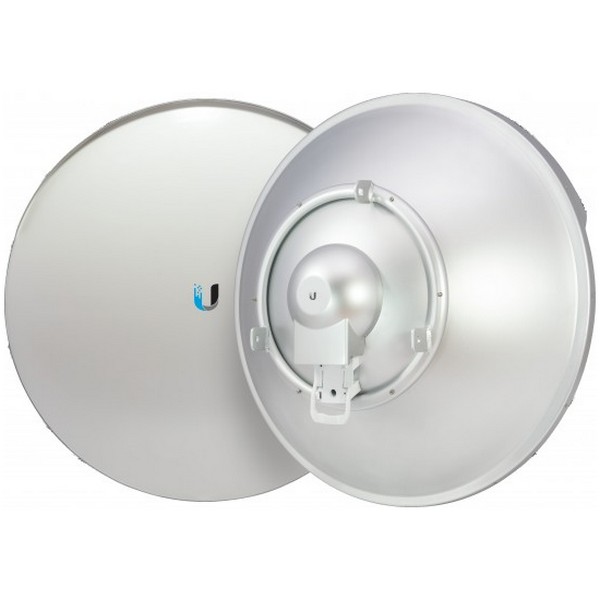

The RocketDish ac Antennas feature high isolation and improved F/B ratio for better Signal-to-Noise Ratio (SNR), which allows the use of higher-order modulation and the maximum data rate.
The improved F/B ratio and lower sidelobes significantly reduce interference, so the innovative RocketDish ac Antennas provide superior gain and beam performance for high-capacity, multipoint networks.
RocketDish ac Antennas are designed with robust mechanical design for outdoor application use.

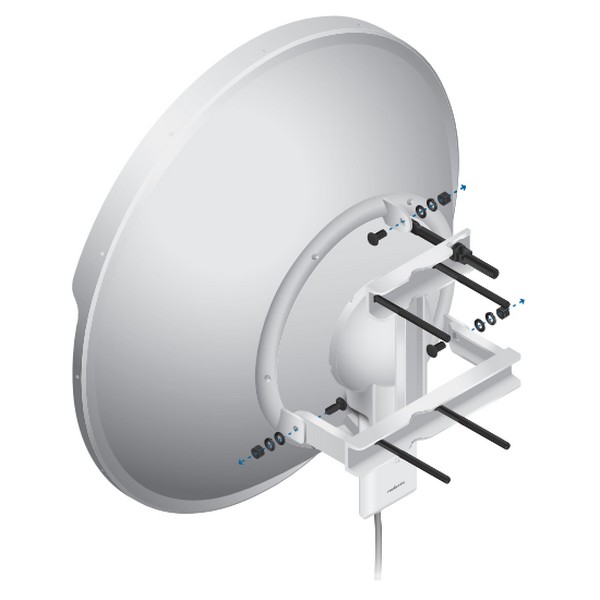

Every RocketDish ac Antenna has a built-in Rocket mount, so no tools are needed to install the Rocket BaseStation.
|
Specifications: |
|
Dimensions: |
748 x 748 x 349 mm |
|
Weight: |
7.6 kg |
|
Frequency Range: |
5.1 - 5.8 GHz |
|
Gain: |
31 dBi |
|
Max. VSWR: |
1.4:1 |
|
Wind Survivability: |
200 km/h |
|
Wind Loading: |
1,028 N @ 200 km/h |
|
Polarization: |
Dual-Linear |
|
Cross-pol Isolation: |
35 dB Min. |
|
ETSI Specification: |
EN 302 326 DN2 |
|

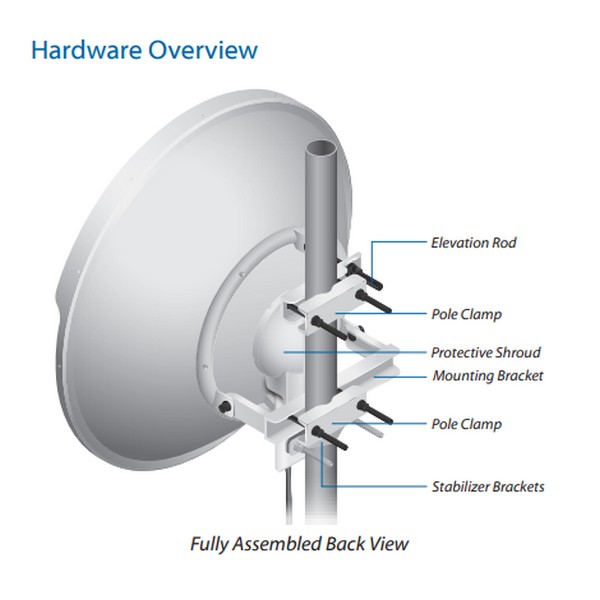

Mounting: |
Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |

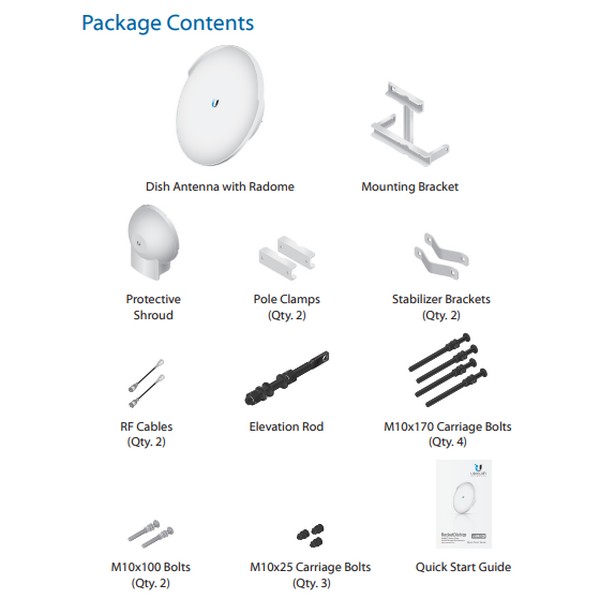

| Package Contents: |
|---|
| 1 x RD-5G31-AC
|
| 1 x Pole Mounting Kit
|
| 2 x RF Cable |
