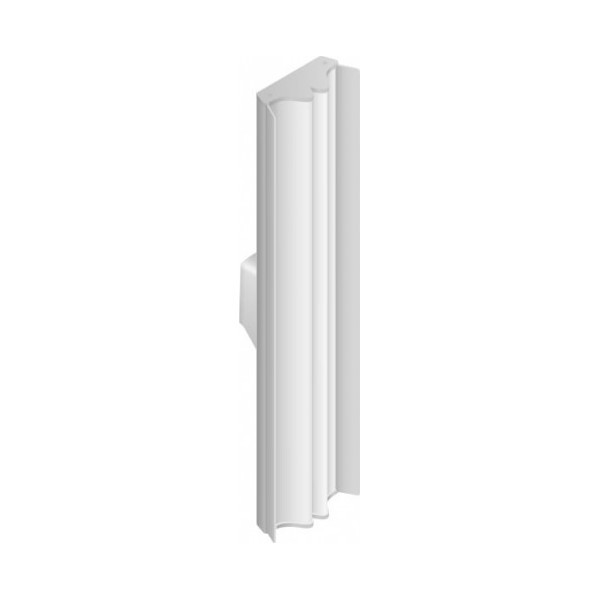

Ubiquiti AM-5AC21-60, 5GHz 21dBi, 60deg AirMax AC Sector Antenna
[1497][AM-5AC21-60]

Price: 192,11€

Order or Qty		Price
> 500€	5+	190,19€
> 1000€	10+	188,27€
> 2000€	20+	186,35€
> 5000€	40+	184,43€
> 10000€	100+	182,51€

Prices exclude VAT

Ships in:
3-5 working days
Quantity: 13

Order Qty:

UPC:	810354021428

AM-5AC21-60

They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

The airMAX ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.

Featuring reduced sidelobes and backlobes, the airMAX ac Sector Antennas are engineered to reject noise interference in co‑location deployments.

airMAX ac Antennas are designed with robust mechanical design for outdoor application use.

Every airMAX ac Antenna has a built-in Rocket mount, so no tools are needed to install the Rocket BaseStation.

Product Links:
Datasheet	Quick Start Guide

Specifications:
Frequency Range:	5.10 - 5.85 GHz
Gain:	21dBi
Polarization:	Dual Linear
Cross-pol Isolation:	25dB min.
Max VSWR:	1.5:1
Hpol Beamwidth (6dB):	60°
Vpol Beamwidth (6dB):	60°
Electrical Downtilt:	2°
Electrical Beamwidth:	4°
ETSI Specification:	EN 302 326 DN2
Dimensions:	750 x 173 x 78 mm
Weight:	4.8 kg
Wind Survivability:	200 km/h

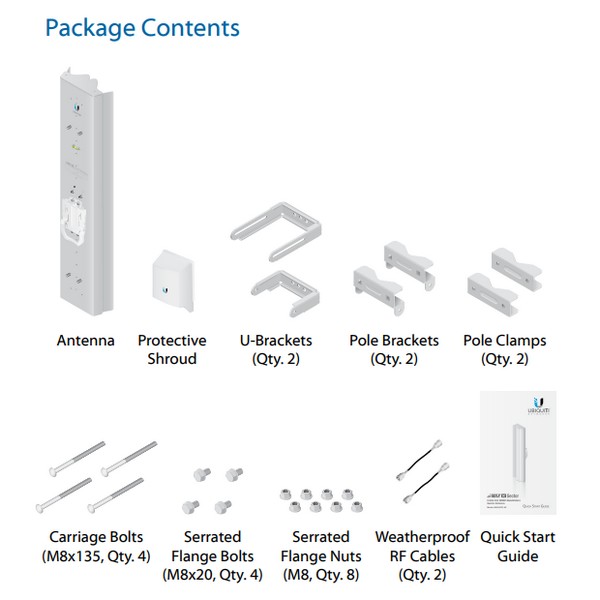

Package Contents:
1 x AM-5AC21-60

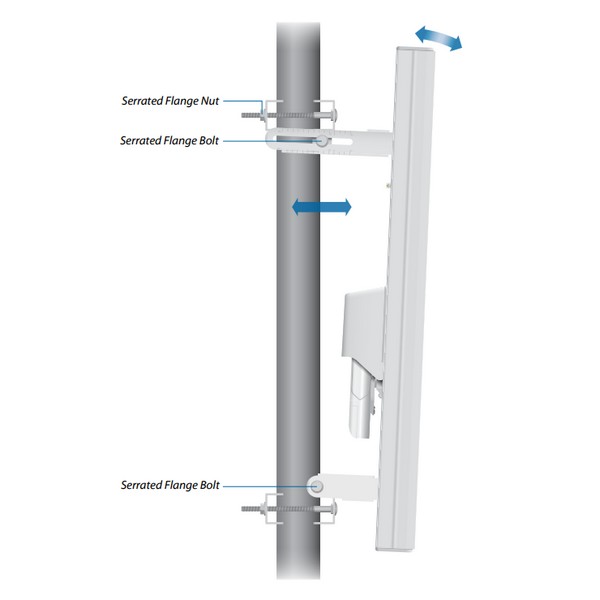

1 x Pole Mounting Kit
2 x RF Cable

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
